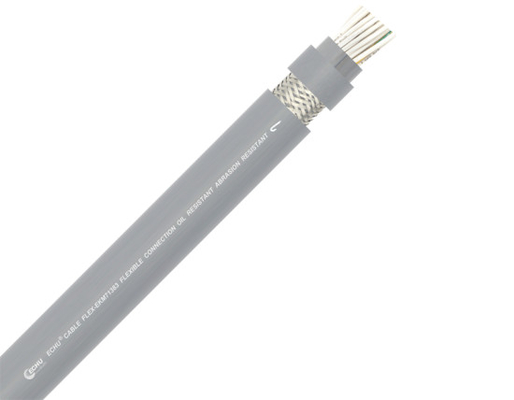

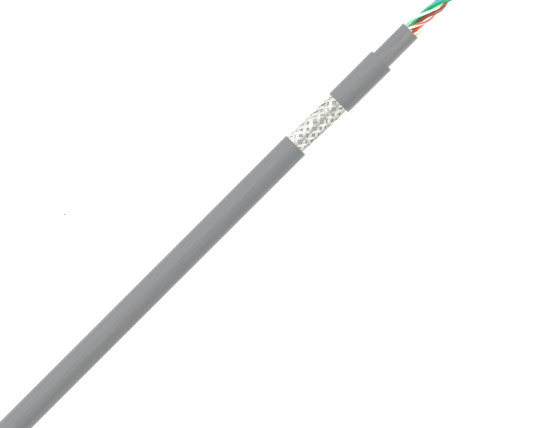

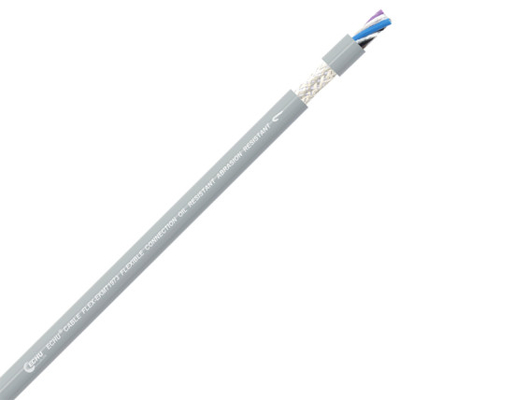

Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583

Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583

    • Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583
    • Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583
    • Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583
    • Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583
    • Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: EKM71583

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD0.88
    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description



    Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583Double Sheath Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71583

    Application:

    It is suitable for dry or wet rooms and installaion without strong

    Stress or free continuous reciprocating movement. It is also can

    be used in working places of woodworking Machine, machine tool

    equipment, logistics conveyer system, crane and other related

    equipments. For the short pitch, it has excellent crosstalk resista

    nce property.


    Properties:

    Waterproofing: oil resistance; cool resistance; abrasion resistance;

    Flame resistance; anti-ultraviolet.

    Bending for life: above 5,000,000 times.


    Structure:

    Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295

    Class 6

    Insulation: special pvc

    Colour: ≤ 0.5mm brown, black, blue, purple, pink, orange

    ≥ 0.5mm black number with white digital coding.

    3 cores or more with green/yellow earth wire

    Inner sheath: special PVC, Oil resistance.

    Shielding: tinned copper brainded shielding

    dentity: above 80%

    Sheath: special PVC; black (RAL 9005) or grey (RAL 7001)

    Related voltage: ≥ 0.5mm: 300/500V ≤ 0.5mm: 300/300Vgv

    Test voltage: 2500V

    Temperature range:

    Fixed Installaion: -30℃ ----- +90℃

    Flexing Installation: -5℃---- +90℃

    The minimum bending radius:

    Fixed Installation: 5X external diameter

    Flexing installation: When travel <10m,bending radius of 8xd
    When travel >10m,bending radius of 10xd



    <

    TYPE Pairs Spec. Cond. (No./Dia.)
    EKM71583 2pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 3pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 4pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 5pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 6pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 7pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 8pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 9pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 10pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 11pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 12pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 13pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 14pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 15pairs 0.1*2C 20/0.08CU+2/0.1steel
    EKM71583 16pairs 0.1*2C 20/0.08CU+2/0.1steel

    EKM71583 2pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 3pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 4pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 5pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 6pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 7pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 8pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 9pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 10pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 11pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 12pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 13pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 14pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 15pairs 0.14*2C 28/0.08CU+2/0.1steel
    EKM71583 16pairs 0.14*2C 28/0.08CU+2/0.1steel

    EKM71583 2pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 3pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 4pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 5pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 6pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 7pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 8pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 9pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 10pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 11pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 12pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 13pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 14pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 15pairs 0.2*2C 40/0.08CU+2/0.1steel
    EKM71583 16pairs 0.2*2C 40/0.08CU+2/0.1steel

    EKM71583 2pairs 0.25*2C 50 0.08
    EKM71583 3pairs 0.25*2C 50 0.08
    EKM71583 4pairs 0.25*2C 50 0.08
    EKM71583 5pairs 0.25*2C 50 0.08
    EKM71583 6pairs 0.25*2C 50 0.08
    EKM71583 7pairs 0.25*2C 50 0.08
    EKM71583 8pairs 0.25*2C 50 0.08
    EKM71583 9pairs 0.25*2C 50 0.08
    EKM71583 10pairs 0.25*2C 50 0.08
    EKM71583 11pairs 0.25*2C 50 0.08
    EKM71583 12pairs 0.25*2C 50 0.08
    EKM71583 13pairs 0.25*2C 50 0.08
    EKM71583 14pairs 0.25*2C 50 0.08
    EKM71583 15pairs 0.25*2C 50 0.08
    EKM71583 16pairs 0.25*2C 50 0.08

    EKM71583 2pairs 0.3*2C 60 0.08
    EKM71583 3pairs 0.3*2C 60 0.08
    EKM71583 4pairs 0.3*2C 60 0.08
    EKM71583 5pairs 0.3*2C 60 0.08
    EKM71583 6pairs 0.3*2C 60 0.08
    EKM71583 7pairs 0.3*2C 60 0.08
    EKM71583 8pairs 0.3*2C 60 0.08
    EKM71583 9pairs 0.3*2C 60 0.08
    EKM71583 10pairs 0.3*2C 60 0.08
    EKM71583 11pairs 0.3*2C 60 0.08
    EKM71583 12pairs 0.3*2C 60 0.08
    EKM71583 13pairs 0.3*2C 60 0.08
    EKM71583 14pairs 0.3*2C 60 0.08
    EKM71583 15pairs 0.3*2C 60 0.08
    EKM71583 16pairs 0.3*2C 60 0.08

    EKM71583 2pairs 0.4*2C 80 0.08
    EKM71583 3pairs 0.4*2C 80 0.08
    EKM71583 4pairs 0.4*2C 80 0.08
    EKM71583 5pairs 0.4*2C 80 0.08
    EKM71583 6pairs 0.4*2C 80 0.08
    EKM71583 7pairs 0.4*2C 80 0.08
    EKM71583 8pairs 0.4*2C 80 0.08
    EKM71583 9pairs 0.4*2C 80 0.08
    EKM71583 10pairs 0.4*2C 80 0.08
    EKM71583 11pairs 0.4*2C 80 0.08
    EKM71583 12pairs 0.4*2C 80 0.08
    EKM71583 13pairs 0.4*2C 80 0.08
    EKM71583 14pairs 0.4*2C 80 0.08
    EKM71583 15pairs 0.4*2C 80 0.08
    EKM71583 16pairs 0.4*2C 80 0.08

    EKM71583 2pairs 0.5*2C 64 0.1
    EKM71583 3pairs 0.5*2C 64 0.1
    EKM71583 4pairs 0.5*2C 64 0.1
    EKM71583 5pairs 0.5*2C 64 0.1
    EKM71583 6pairs 0.5*2C 64 0.1
    EKM71583 7pairs 0.5*2C 64 0.1
    EKM71583 8pairs 0.5*2C 64 0.1
    EKM71583 9pairs 0.5*2C 64 0.1
    EKM71583 10pairs 0.5*2C 64 0.1
    EKM71583 11pairs 0.5*2C 64 0.1
    EKM71583 12pairs 0.5*2C 64 0.1
    EKM71583 13pairs 0.5*2C 64 0.1
    EKM71583 14pairs 0.5*2C 64 0.1
    EKM71583 15pairs 0.5*2C 64 0.1
    EKM71583 16pairs 0.5*2C 64 0.1

    EKM71583 2pairs 0.75*2C 96 0.1
    EKM71583 3pairs 0.75*2C 96 0.1
    EKM71583 4pairs 0.75*2C 96 0.1
    EKM71583 5pairs 0.75*2C 96 0.1
    EKM71583 6pairs 0.75*2C 96 0.1
    EKM71583 7pairs 0.75*2C 96 0.1
    EKM71583 8pairs 0.75*2C 96 0.1
    EKM71583 9pairs 0.75*2C 96 0.1
    EKM71583 10pairs 0.75*2C 96 0.1
    EKM71583 11pairs 0.75*2C 96 0.1
    EKM71583 12pairs 0.75*2C 96 0.1
    EKM71583 13pairs 0.75*2C 96 0.1
    EKM71583 14pairs 0.75*2C 96 0.1
    EKM71583 15pairs 0.75*2C 96 0.1
    EKM71583 16pairs 0.75*2C 96 0.1

    EKM71583 2pairs 1.0*2C 126 0.1
    EKM71583 3pairs 1.0*2C 126 0.1
    EKM71583 4pairs 1.0*2C 126 0.1
    EKM71583 5pairs 1.0*2C 126 0.1
    EKM71583 6pairs 1.0*2C 126 0.1
    EKM71583 7pairs 1.0*2C 126 0.1
    EKM71583 8pairs 1.0*2C 126 0.1
    EKM71583 9pairs 1.0*2C 126 0.1
    EKM71583 10pairs 1.0*2C 126 0.1
    EKM71583 11pairs 1.0*2C 126 0.1
    EKM71583 12pairs 1.0*2C 126 0.1
    EKM71583 13pairs 1.0*2C 126 0.1
    EKM71583 14pairs 1.0*2C 126 0.1
    EKM71583 15pairs 1.0*2C 126 0.1
    EKM71583 16pairs 1.0*2C 126 0.1
