Shielded and Twisted and Paired Data Cable LIYCY-CY(TP)

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	LIYY LIYCY LIYCY-TP LIHH LIHCH

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

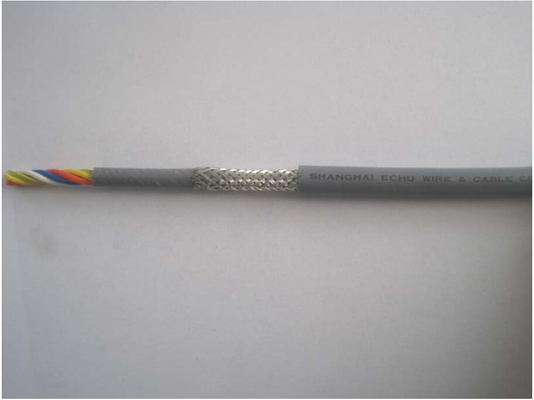

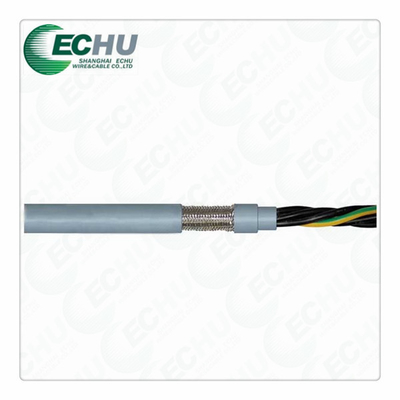

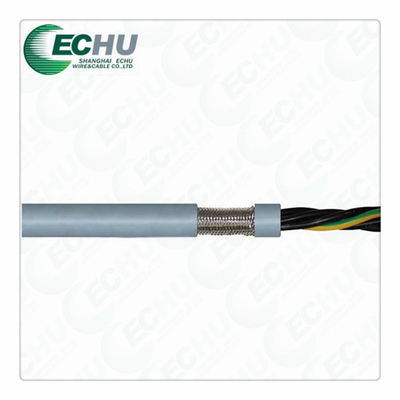

Shielded and Twisted and Paired Data Cable LIYCY-CY(TP)

Conductor Stranded of fine copper wire (class 5)comply with VDE0295/IEC60228 standard. Special PVC mixture material Conductor Stranded of fine copper wire (class 5)comply with VDE0295/IEC60228 standard.
Special PVC mixture material
Cable core color-coded in accordanceto DIN 47100 (can be customized colors)
Each pair of wire with tinned copper braid shield coverage of 85%
Special PVC mixture material inner sheath
(Tin plated) copper wire braided overall shield coverage of 85%
Special PVC mixture material outer sheath
Gray (RAL7032) (color can be customized according to customer requirements) Operating voltage: 0.14 mm2: 350 V
> = 0.25 mm2: 500 V
Insulation resistance:> 20 MOhm x KM
Minimum bend radius:
Mobile installation: 12x cable diameter fixed installation: 6x cable diameter
Operating temperature range:
Mobile installation: - 5 ° C to +70 ° C fixed installation: -30 ° C to +80 ° C
Fire-retardant features: VDE 0 472 804 and the IEC 60332-1
Anti-radiation intensity: up to 80 × 106cJ/kg
