Applications
It is suitble for dry or wet rooms and installation without strong stress or free continuous reciprocating movement. It is also can be used in working places of laser cutting. Woodworking machine,machine tool equipment,logistics conveyer system, crane and other related equipments,for the long travel.
Properties:
Waterproofing;oil resistance;cool resistance;abrasion resistance;flame resistance;anti-ultraviolet/
Bending for life:above 5,000,000times

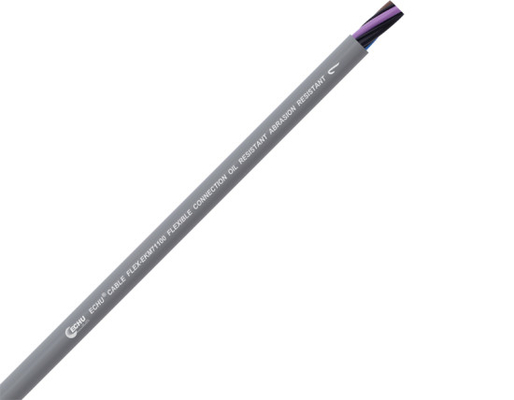

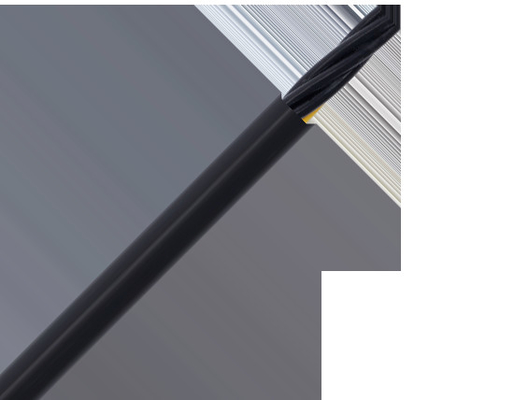

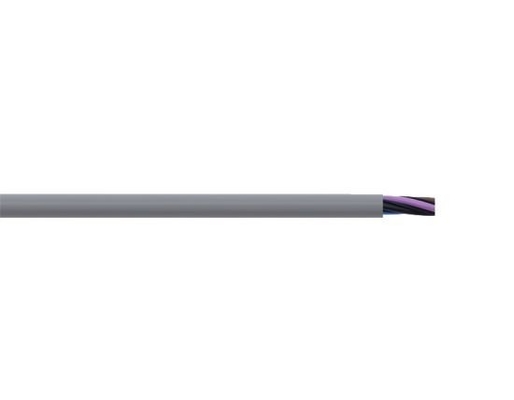

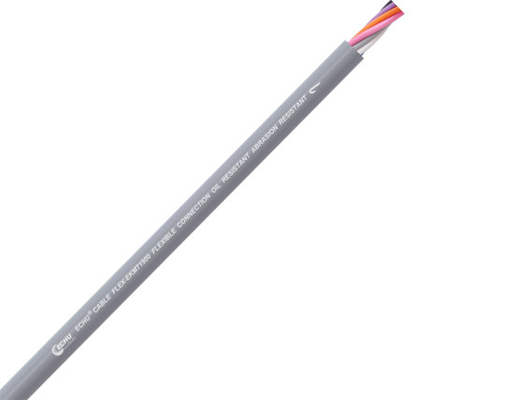

Structure:
Conductor:fine strands of oxygen-free wire
Acc.to VDE0295 CLASS6
Insulation:special TPE
Colour: ≥0.5mm black number with white digital coding.3cores or more with green/yellow earth wire
Sheath:special PUR abrasion resistance
Black(RAL9005)/ grey(RAL7001)/orange(RAL2003)
Related voltage: ≥1.5mm:450/750V <1.5mm:300/500V
Test voltage:2000V
Temperature range:
Fixed Installaion: -50℃ ----- +90℃
Flexing Installation: -30℃---- +90℃
The minimum bending radius:
Fixed Installation: 5X external diameter
Flexing installation: When travel <10m,bending radius of 8xd
When travel >10m,bending radius of 10xd
