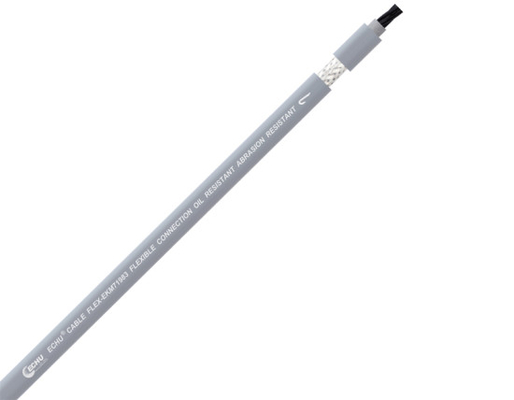

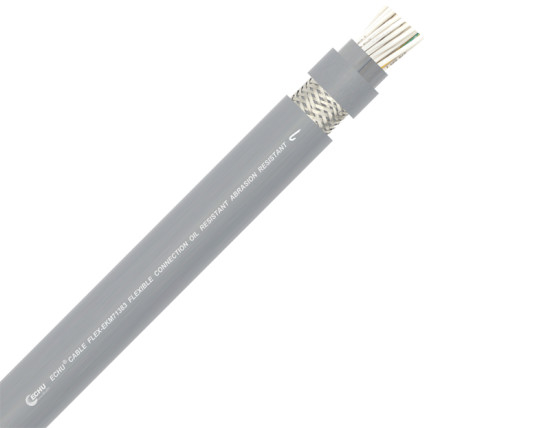

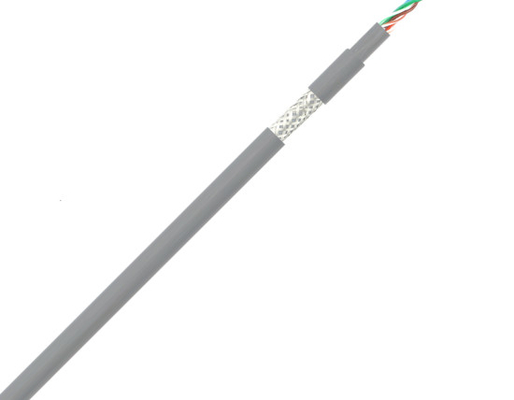

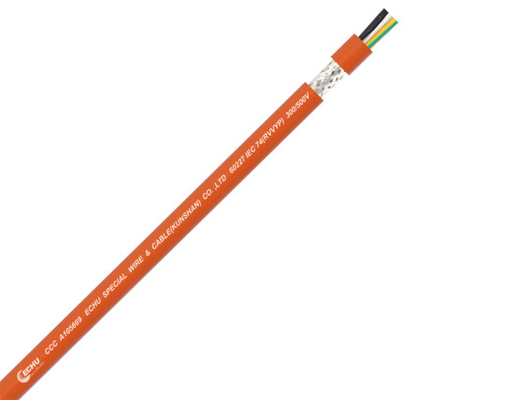

Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383

Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383

    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383
    • Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: EKM71383

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD0.88
    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description



    Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383Double Sheath and Shielded Special PVC Cable for Rapid Drag Chains-EKM71383



    Applications:

    It is suitable for dry or wet rooms and installaion without strong

    Stress or free continuous reciprocating movement. It is special suitable

    For the working places of woodworking Machine, machine tool

    Equipment, logistics conveyer system, crane and other related

    Equipments. For the short pitch, it has excellent crosstalk resistance

    property.


    Properties:

    Waterproofing: oil resistance; cool resistance; abrasion resistance;

    Flame resistance; anti-ultraviolet.

    Bending for life: above 5,000,000 times.


    Structure:

    Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295

    Class 6

    Insulation: special pvc

    Colour: ≤ 0.5mm brown, black, blue, purple, pink, orange

    ≥ 0.5mm black number with white digital coding.

    3 cores or more with green/yellow earth wire

    Sheath:Special PVC, OIL Resistance.

    Shielding: tinned copper brainded shielding

    dentity: above 80%

    Sheath: special PVC; black (RAL 9005) or grey (RAL 7001)

    orange(RAL 2003)

    Related voltage: ≥ 0.5mm: 300/500V ≤ 0.5mm: 300/300Vgv

    Test voltage: 2000V

    Temperature range:

    Fixed Installaion: -30℃ ----- +90℃

    Flexing Installation: -5℃---- +90℃


    The minimum bending radius:

    Fixed Installation: 5X external diameter

    Flexing installation: When travel <10m,bending radius of 8xd
    When travel >10m,bending radius of 10xd





    TYPE Spec Cond. (No./Dia.)
    EKM71383 O.14*2C 28/0.08CU+2/0.1steel
    EKM71383 O.14*3C 28/0.08CU+2/0.1steel
    EKM71383 O.14*4C 28/0.08CU+2/0.1steel
    EKM71383 O.14*5C 28/0.08CU+2/0.1steel
    EKM71383 O.14*6C 28/0.08CU+2/0.1steel
    EKM71383 O.14*7C 28/0.08CU+2/0.1steel
    EKM71383 O.14*8C 28/0.08CU+2/0.1steel
    EKM71383 O.14*9C 28/0.08CU+2/0.1steel
    EKM71383 O.14*1OC 28/0.08CU+2/0.1steel
    EKM71383 O.14*11C 28/0.08CU+2/0.1steel
    EKM71383 O.14*12C 28/0.08CU+2/0.1steel
    EKM71383 O.14*13C 28/0.08CU+2/0.1steel
    EKM71383 O.14*14C 28/0.08CU+2/0.1steel
    EKM71383 O.14*15C 28/0.08CU+2/0.1steel
    EKM71383 O.14*16C 28/0.08CU+2/0.1steel
    EKM71383 O.14*17C 28/0.08CU+2/0.1steel
    EKM71383 O.14*18C 28/0.08CU+2/0.1steel
    EKM71383 O.14*19C 28/0.08CU+2/0.1steel
    EKM71383 O.14*2OC 28/0.08CU+2/0.1steel
    EKM71383 O.14*21C 28/0.08CU+2/0.1steel
    EKM71383 O.14*22C 28/0.08CU+2/0.1steel
    EKM71383 O.14*23C 28/0.08CU+2/0.1steel
    EKM71383 O.14*24C 28/0.08CU+2/0.1steel
    EKM71383 O.14*25C 28/0.08CU+2/0.1steel
    EKM71383 O.14*26C 28/0.08CU+2/0.1steel
    EKM71383 O.14*27C 28/0.08CU+2/0.1steel
    EKM71383 O.14*28C 28/0.08CU+2/0.1steel
    EKM71383 O.14*29C 28/0.08CU+2/0.1steel
    EKM71383 O.14*3OC 28/0.08CU+2/0.1steel
    EKM71383 O.14*31C 28/0.08CU+2/0.1steel
    EKM71383 O.14*32C 28/0.08CU+2/0.1steel
    EKM71383 O.14*33C 28/0.08CU+2/0.1steel
    EKM71383 O.14*34C 28/0.08CU+2/0.1steel
    EKM71383 O.14*35C 28/0.08CU+2/0.1steel
    EKM71383 O.14*36C 28/0.08CU+2/0.1steel
    EKM71383 O.14*37C 28/0.08CU+2/0.1steel
    EKM71383 O.14*38C 28/0.08CU+2/0.1steel

    EKM71383 O.2*2C 40/0.08CU+2/0.1steel
    EKM71383 O.2*3C 40/0.08CU+2/0.1steel
    EKM71383 O.2*4C 40/0.08CU+2/0.1steel
    EKM71383 O.2*5C 40/0.08CU+2/0.1steel
    EKM71383 O.2*6C 40/0.08CU+2/0.1steel
    EKM71383 O.2*7C 40/0.08CU+2/0.1steel
    EKM71383 O.2*8C 40/0.08CU+2/0.1steel
    EKM71383 O.2*9C 40/0.08CU+2/0.1steel
    EKM71383 O.2*1OC 40/0.08CU+2/0.1steel
    EKM71383 O.2*11C 40/0.08CU+2/0.1steel
    EKM71383 O.2*12C 40/0.08CU+2/0.1steel
    EKM71383 O.2*13C 40/0.08CU+2/0.1steel
    EKM71383 O.2*14C 40/0.08CU+2/0.1steel
    EKM71383 O.2*15C 40/0.08CU+2/0.1steel
    EKM71383 O.2*16C 40/0.08CU+2/0.1steel
    EKM71383 O.2*17C 40/0.08CU+2/0.1steel
    EKM71383 O.2*18C 40/0.08CU+2/0.1steel
    EKM71383 O.2*19C 40/0.08CU+2/0.1steel
    EKM71383 O.2*2OC 40/0.08CU+2/0.1steel
    EKM71383 O.2*21C 40/0.08CU+2/0.1steel
    EKM71383 O.2*22C 40/0.08CU+2/0.1steel
    EKM71383 O.2*23C 40/0.08CU+2/0.1steel
    EKM71383 O.2*24C 40/0.08CU+2/0.1steel
    EKM71383 O.2*25C 40/0.08CU+2/0.1steel
    EKM71383 O.2*26C 40/0.08CU+2/0.1steel
    EKM71383 O.2*27C 40/0.08CU+2/0.1steel
    EKM71383 O.2*28C 40/0.08CU+2/0.1steel
    EKM71383 O.2*29C 40/0.08CU+2/0.1steel
    EKM71383 O.2*3OC 40/0.08CU+2/0.1steel
    EKM71383 O.2*31C 40/0.08CU+2/0.1steel
    EKM71383 O.2*32C 40/0.08CU+2/0.1steel
    EKM71383 O.2*33C 40/0.08CU+2/0.1steel
    EKM71383 O.2*34C 40/0.08CU+2/0.1steel
    EKM71383 O.2*35C 40/0.08CU+2/0.1steel
    EKM71383 O.2*36C 40/0.08CU+2/0.1steel
    EKM71383 O.2*37C 40/0.08CU+2/0.1steel
    EKM71383 O.2*38C 40/0.08CU+2/0.1steel

    EKM71383 O.25*2C 50 0.08
    EKM71383 O.25*3C 50 0.08
    EKM71383 O.25*4C 50 0.08
    EKM71383 O.25*5C 50 0.08
    EKM71383 O.25*6C 50 0.08
    EKM71383 O.25*7C 50 0.08
    EKM71383 O.25*8C 50 0.08
    EKM71383 O.25*9C 50 0.08
    EKM71383 O.25*1OC 50 0.08
    EKM71383 O.25*11C 50 0.08
    EKM71383 O.25*12C 50 0.08
    EKM71383 O.25*13C 50 0.08
    EKM71383 O.25*14C 50 0.08
    EKM71383 O.25*15C 50 0.08
    EKM71383 O.25*16C 50 0.08
    EKM71383 O.25*17C 50 0.08
    EKM71383 O.25*18C 50 0.08
    EKM71383 O.25*19C 50 0.08
    EKM71383 O.25*2OC 50 0.08
    EKM71383 O.25*21C 50 0.08
    EKM71383 O.25*22C 50 0.08
    EKM71383 O.25*23C 50 0.08
    EKM71383 O.25*24C 50 0.08
    EKM71383 O.25*25C 50 0.08
    EKM71383 O.25*26C 50 0.08
    EKM71383 O.25*27C 50 0.08
    EKM71383 O.25*28C 50 0.08
    EKM71383 O.25*29C 50 0.08
    EKM71383 O.25*3OC 50 0.08
    EKM71383 O.25*31C 50 0.08
    EKM71383 O.25*32C 50 0.08
    EKM71383 O.25*33C 50 0.08
    EKM71383 O.25*34C 50 0.08
    EKM71383 O.25*35C 50 0.08
    EKM71383 O.25*36C 50 0.08
    EKM71383 O.25*37C 50 0.08
    EKM71383 O.25*38C 50 0.08

    EKM71383 O.3*2C 60 0.08
    EKM71383 O.3*3C 60 0.08
    EKM71383 O.3*4C 60 0.08
    EKM71383 O.3*5C 60 0.08
    EKM71383 O.3*6C 60 0.08
    EKM71383 O.3*7C 60 0.08
    EKM71383 O.3*8C 60 0.08
    EKM71383 O.3*9C 60 0.08
    EKM71383 O.3*1OC 60 0.08
    EKM71383 O.3*11C 60 0.08
    EKM71383 O.3*12C 60 0.08
    EKM71383 O.3*13C 60 0.08
    EKM71383 O.3*14C 60 0.08
    EKM71383 O.3*15C 60 0.08
    EKM71383 O.3*16C 60 0.08
    EKM71383 O.3*17C 60 0.08
    EKM71383 O.3*18C 60 0.08
    EKM71383 O.3*19C 60 0.08
    EKM71383 O.3*2OC 60 0.08
    EKM71383 O.3*21C 60 0.08
    EKM71383 O.3*22C 60 0.08
    EKM71383 O.3*23C 60 0.08
    EKM71383 O.3*24C 60 0.08
    EKM71383 O.3*25C 60 0.08
    EKM71383 O.3*26C 60 0.08
    EKM71383 O.3*27C 60 0.08
    EKM71383 O.3*28C 60 0.08
    EKM71383 O.3*29C 60 0.08
    EKM71383 O.3*3OC 60 0.08
    EKM71383 O.3*31C 60 0.08
    EKM71383 O.3*32C 60 0.08
    EKM71383 O.3*33C 60 0.08
    EKM71383 O.3*34C 60 0.08
    EKM71383 O.3*35C 60 0.08
    EKM71383 O.3*36C 60 0.08
    EKM71383 O.3*37C 60 0.08
    EKM71383 O.3*38C 60 0.08
