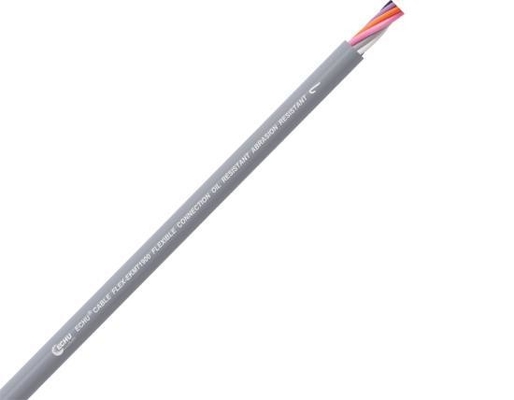

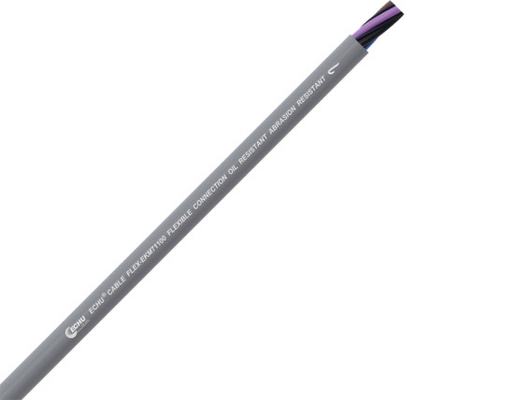

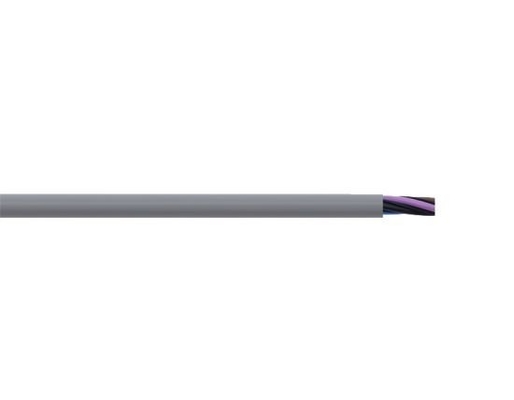

Single Core Unshielded Special PVC Cable for Drag Chains-EKM71100

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	EKM71100

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

Single Core Unshielded Special PVC Cable for Drag Chains-EKM71100

Application:

It is suitable for dry or wet rooms and installaion without strong

Stress or free continuous reciprocating movement. It is special

suitable for the working places of woodworking Machine, machine

tool Equipment, logistics conveyer system, crane and other related

Equipments.

Properties:

Waterproofing: oil resistance; cool resistance; abrasion resistance;

Flame resistance; anti-ultraviolet.

Bending for life: above 5,000,000 times.

Structure:

Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295

Class 6

Insulation: special pvc

Colour: ≤ 0.5mm brown, black, blue, purple, pink, orange

≥ 0.5mm black number with white digital coding.

3 cores or more with green/yellow earth wire

Sheath: special PVC; black (RAL 9005) or grey (RAL 7001)

Related voltage: ≥ 0.5mm: 300/500V ≤ 0.5mm: 300/300Vgv

Test voltage: 2000V

emperature range:

Fixed Installaion: -30℃ ----- +90℃

Flexing Installation: -5℃---- +90℃

The minimum bending radius:

Fixed Installation: 5X external diameter

Flexing installation: When travel <10m,bending radius of 7.5xd
When travel >10m,bending radius of 10xd

TYPE	Spec.	Conductor No.	Per Conductor Diaφ	Weight KG/KM
TYPE	Spec.	Conductor No.	Per Conductor Diaφ	Weight KG/KM
EKM71100	0.5	64	0.1	19.0
EKM71100	0.75	96	0.1	22.6
EKM71100	1	126	0.1	26.2
EKM71100	1.5	189	0.1	36.1
EKM71100	2.5	161	0.14	61.0
EKM71100	4	259	0.14	82.5
EKM71100	6	390	0.14	110.5
EKM71100	10	353	0.19	166.8
EKM71100	16	567	0.19	239.7
EKM71100	25	882	0.19	358.0
EKM71100	35	1234	0.19	469.9
EKM71100	50	1763	0.19	648.5
EKM71100	70	1426	0.25	881.2
EKM71100	95	1935	0.25	1167.6
EKM71100	120	2445	0.25	1439.0
EKM71100	150	3056	0.25	1755.0
EKM71100	185	3769	0.25	2354.0
EKM71100	240	4889	0.25	2980.9

TYPE	Spec.	Conductor No.	Per Conductor Diaφ	Weight KG/KM
TYPE	Spec.	Conductor No.	Per Conductor Diaφ	Weight KG/KM
EKM71100	0.5	64	0.1	7.9
EKM71100	0.75	96	0.1	10.6
EKM71100	1	126	0.1	13.4
EKM71100	1.5	189	0.1	20.7
EKM71100	2.5	161	0.14	36
EKM71100	4	259	0.14	53.8
EKM71100	6	390	0.14	77.7
EKM71100	10	353	0.19	126.7
EKM71100	16	567	0.19	192.7
EKM71100	25	882	0.19	291.4
EKM71100	35	1234	0.19	395.2
EKM71100	50	1763	0.19	561.2
EKM71100	70	1426	0.25	765.9
EKM71100	95	1935	0.25	1035.6
EKM71100	120	2445	0.25	1292
EKM71100	150	3056	0.25	1594.6
EKM71100	185	3769	0.25	2039.1
EKM71100	240	4889	0.25	2628.1
