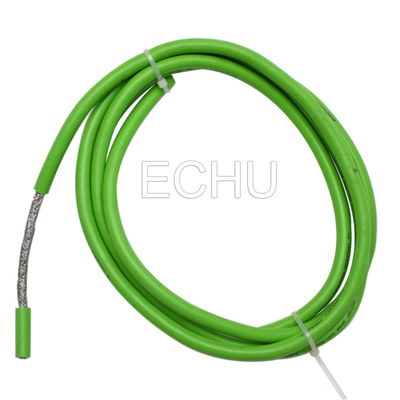

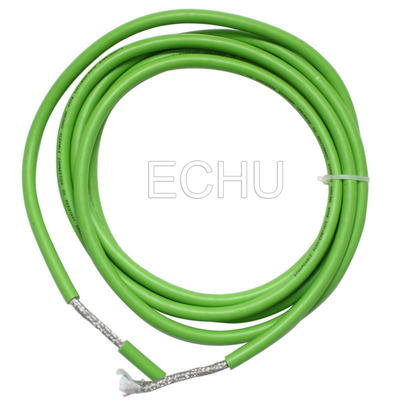

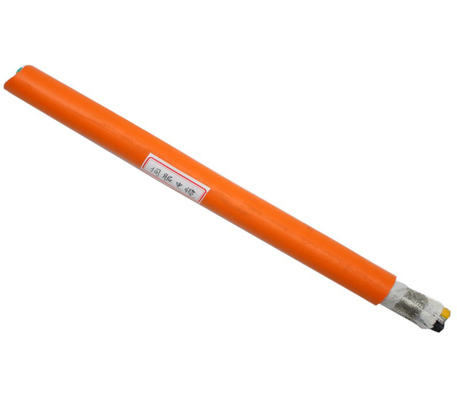

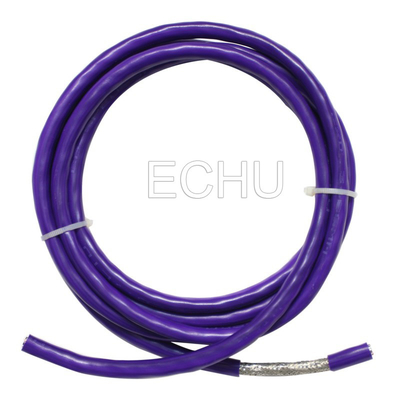

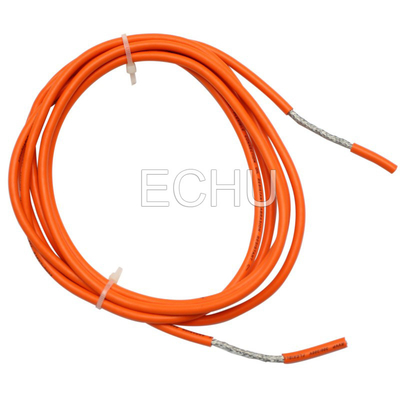

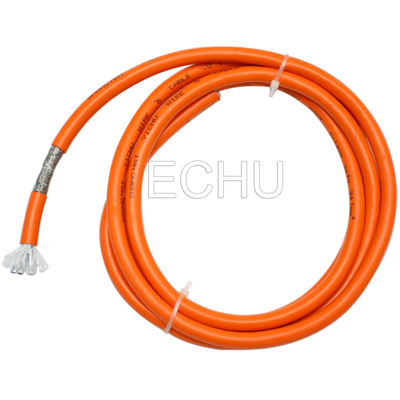

TPE- PUR- FLEXCABLE (ROBOT CABLE)

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	Servo-CY Servo-CY -FD Servo-CY-FD-PUR

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

TPE- PUR- FLEXCABLE (ROBOT CABLE)

Application:

It is suitable for dry or wet rooms and installaion without strong

Stress or free continuous reciprocating movement. It is also can

be used in working places of woodworking Machine, machine tool

equipment, logistics conveyer system, crane and other related

equipments. For the short pitch, it has excellent crosstalk resistance

property. Based on EKM71573 series, EKM71583 series adds to

inner sheath. It is quite suitable for fast moving equipments.

Properties:

Waterproofing: oil resistance; cool resistance; abrasion resistance;

Flame resistance; anti-ultraviolet.

Bending for life: above 5,000,000 times.

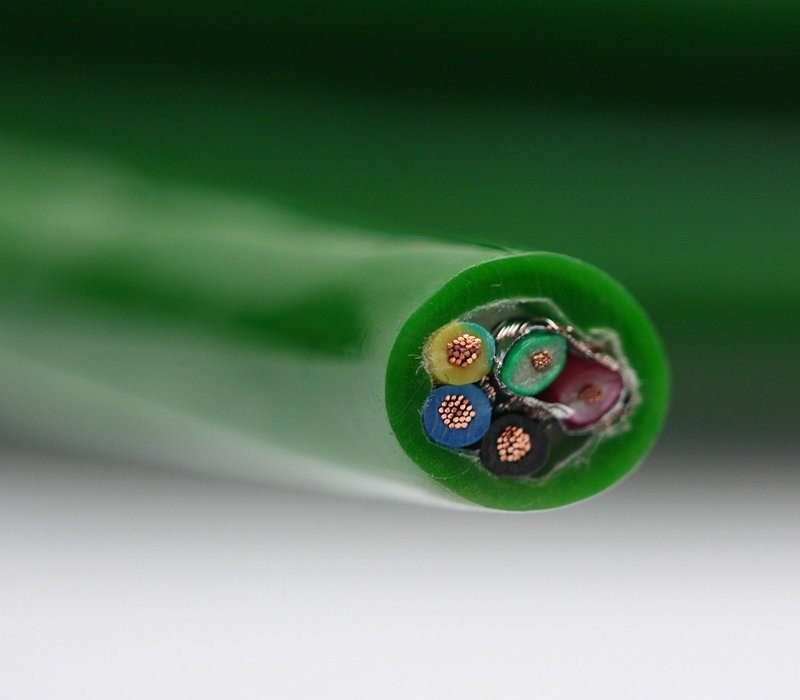

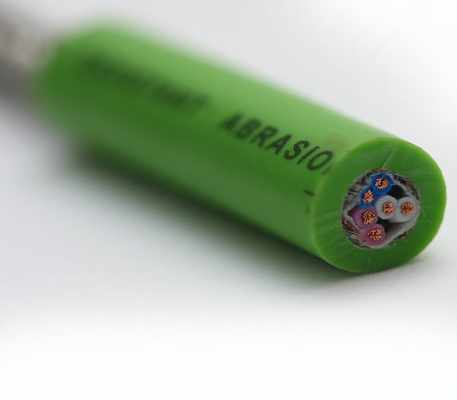

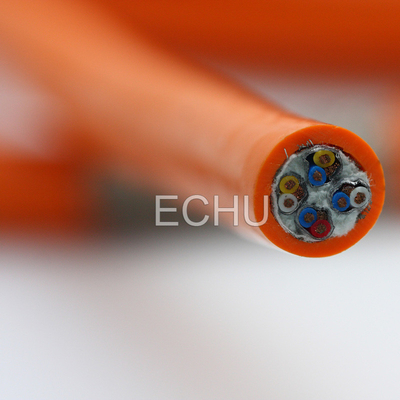

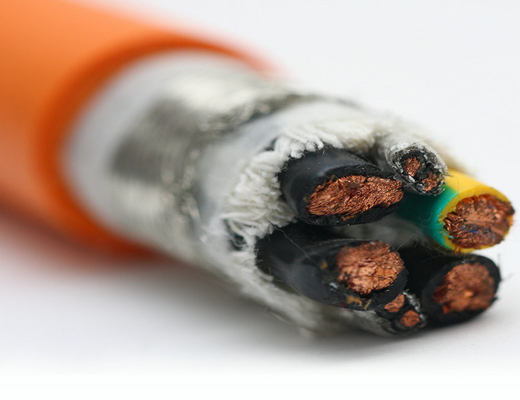

Structure:

Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295

Class 6

Insulation: special pvc

Colour: ≤ 0.5mm brown, black, blue, purple, pink, orange

≥ 0.5mm black number with white digital coding.

3 cores or more with green/yellow earth wire

Inner sheath:special PVC; oil resistance

Shielding: tinned copper brainded shielding

dentity: above 80%

Sheath: special PVC; black (RAL 9005) or grey (RAL 7001)

Related voltage: ≥ 0.5mm: 300/500V ≤ 0.5mm: 300/300Vgv

Test voltage: 2500V

Temperature range:

Fixed Installaion: -30℃ ----- +70℃

Flexing Installation: -5℃---- +70℃

The minimum bending radius:

Fixed Installation: 4X external diameter

Flexing installation: 15X external diameter

TYPE	SPEC.
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.0+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.0))
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.5)
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
