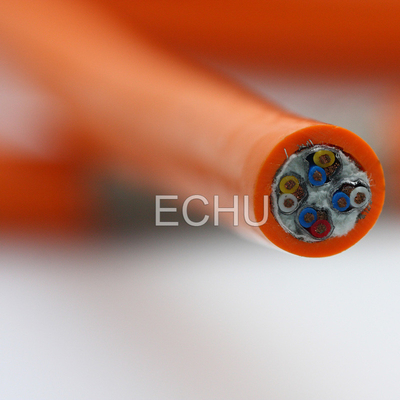

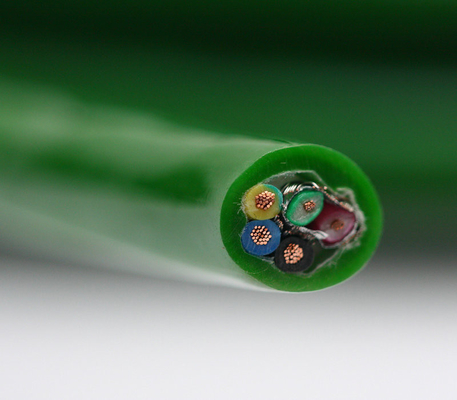

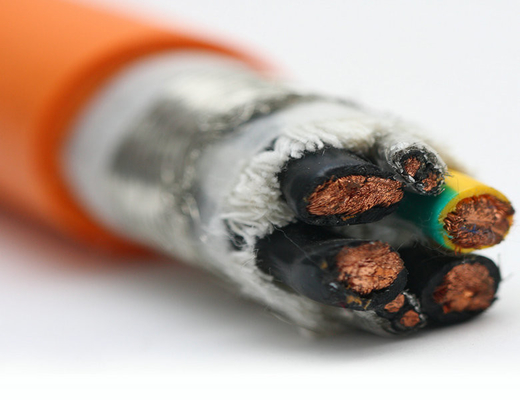

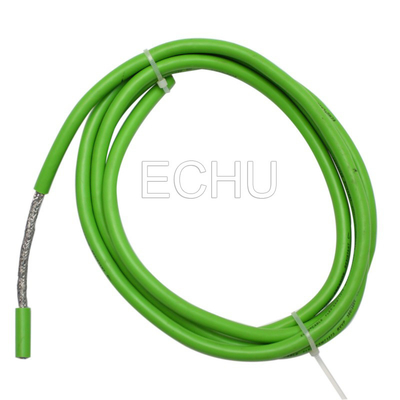

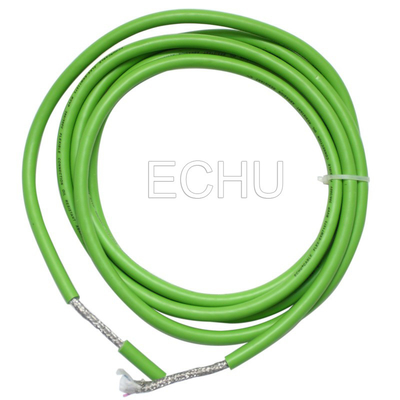

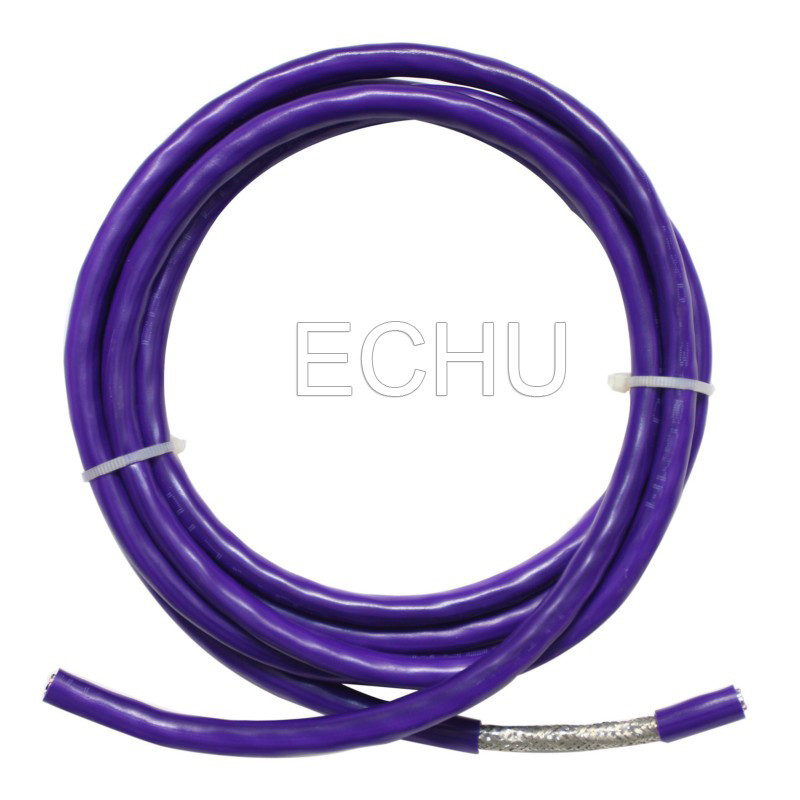

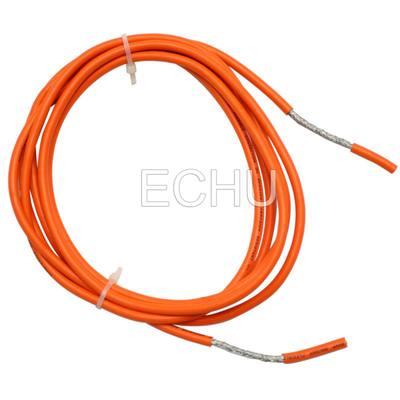

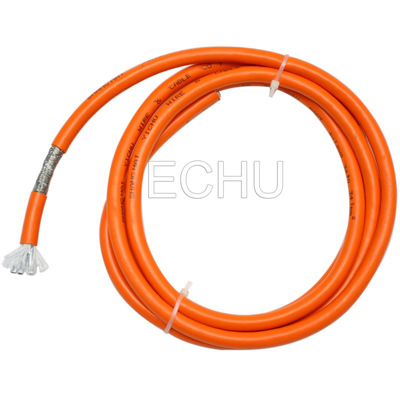

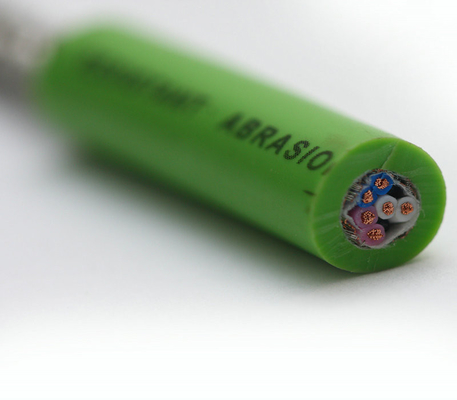

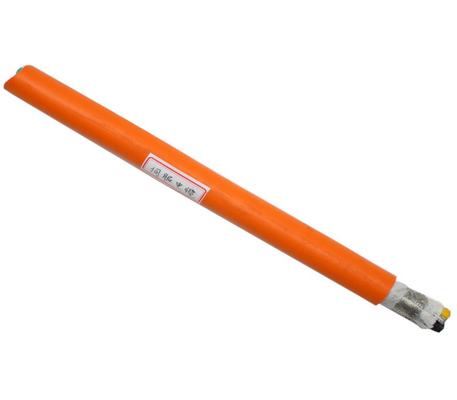

Extremely flexible TPE/PUR control cable with numbered cores for continuous movement

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	Servo-CY Servo-CY -FD Servo-CY-FD-PUR

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

Extremely flexible TPE/PUR control cable with numbered cores for continuous movement

high flex cable
labs uncritical (labs = enamel moisturing interfering substances)
flexible at low temperatures
halogen-free
travel > 10 m is possible
high abrasion resistance
min. bending radius
small outer diameter
EAC approval

High Flex Cable with numbered cores for continuous movement and uncritical labs. The Cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction. Conductor

bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 6
Insulation

TPE
Colour code

black cores with consecutive numbers acc. to EN 50334;

green-yellow earth wire from 3 cores
Stranding

specially adjusted layering with non-woven tape over each layer
Wrapping

non-woven tape
Sheath material

PUR, TMPU acc. to DIN VDE 0282 part 10 + HD 22.10 with mat surface
Sheath colour

grey (RAL 7001)Nominal voltage

300/500 V
Testing voltage

2000 V acc. to DIN VDE 0281 part 2 + HD 21.2
Min. bending radius

continuously flexible: 7,5 x d
Radiation resistance

5 x 10^7 cJ/kg
Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C
Halogen-free

acc. to DIN VDE 0472 part 815 + IEC 60754-1
Oil resistance

very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10
Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.
Flexibility

very good
Weather resistance

very good
Absence of harmful substances

acc. to RoHS directive of the European Union see page N/17

TYPE	SPEC.
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.0+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.0))
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.5)
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
