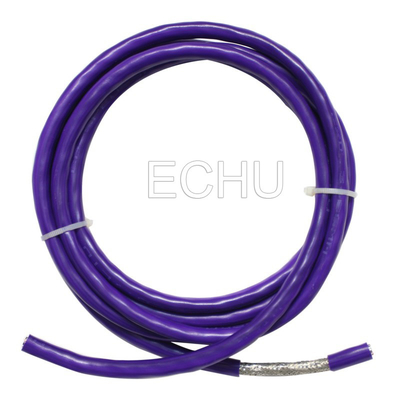

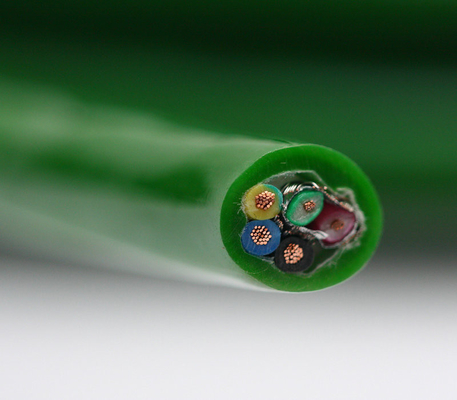

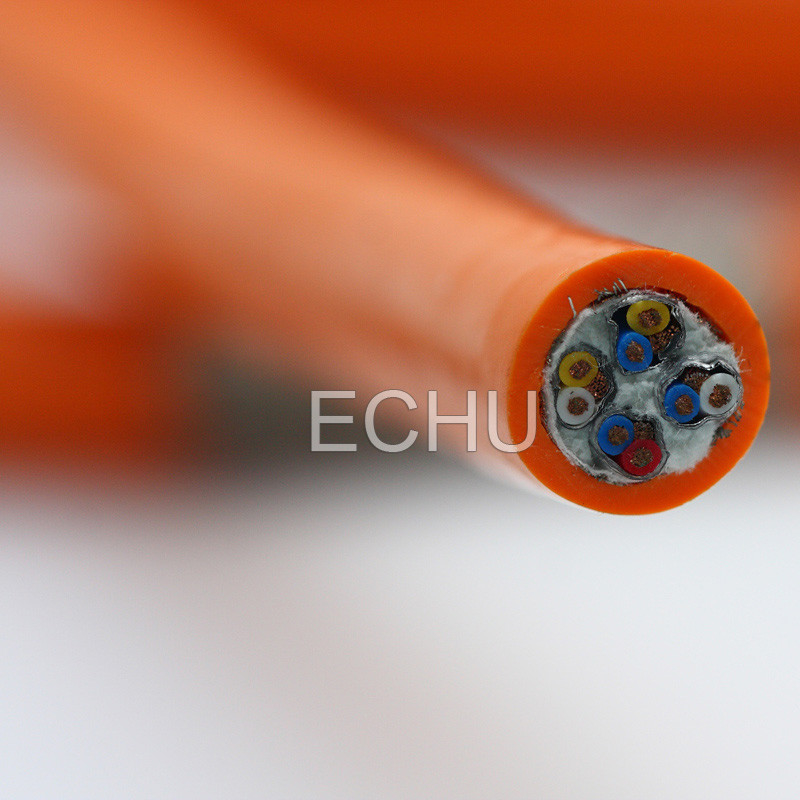

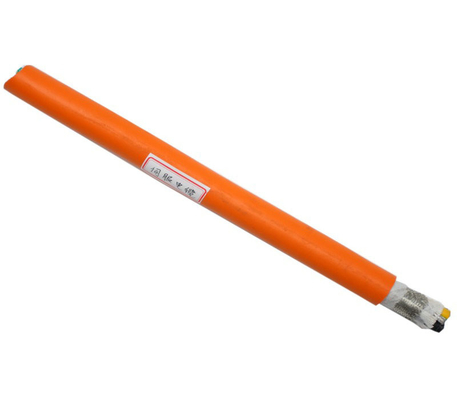

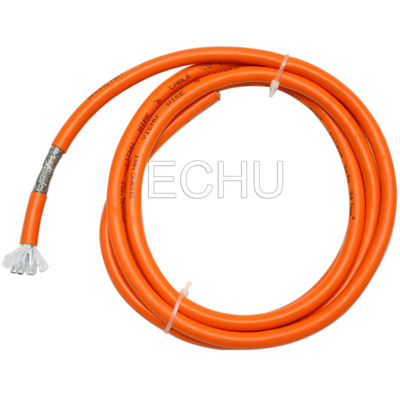

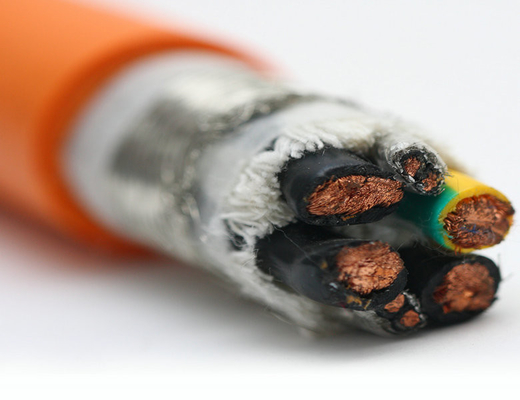

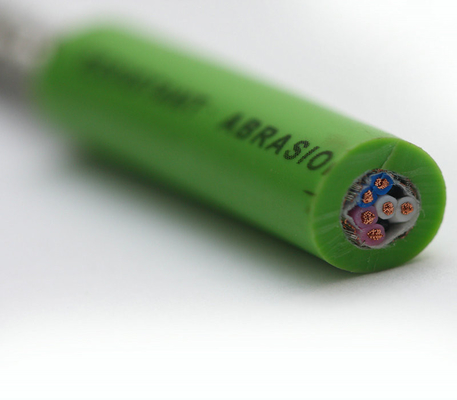

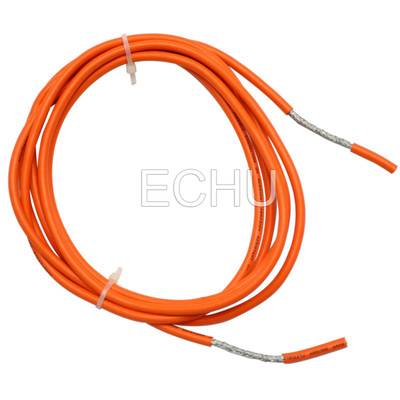

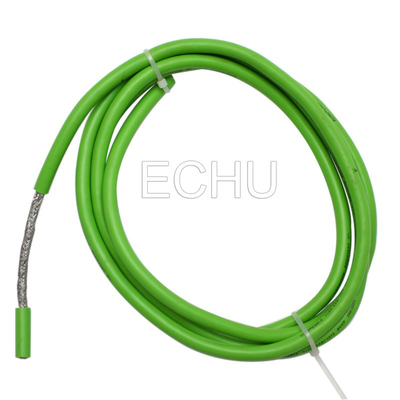

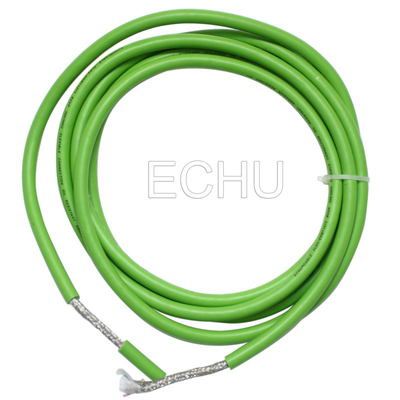

PUR control cable (Servo Motor cable) CNC cable

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	Servo-CY Servo-CY -FD Servo-CY-FD-PUR

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

PUR control cable (Servo Motor cable) CNC cable

Conductor

tinned copper strands
Core isolation

TPE
Colour code

black cores with consecutive numbers + green/yellow earth wire
Wrapping

non-woven tape
Screen

tinned copper braiding
Inner sheath

PUR, black
Outer sheath

PUR, blackPeak operating voltage

max. 350 V
Testing voltage

cond./cond. 1500 V

cond./screen 1000 V
Temperature range

fixed laying: -50°C up to +90°C

flexible application: -40°C up to +90°C
Min. bending radius

flexing: 10 x outer diameter
Absence of harmful substances

acc. to RoHS directive of the European Union

TYPE	SPEC.
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.0+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.0))
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.5)
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
