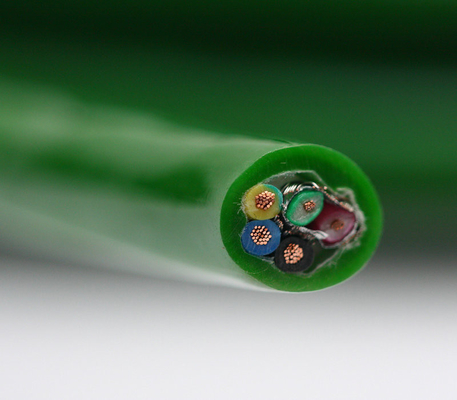

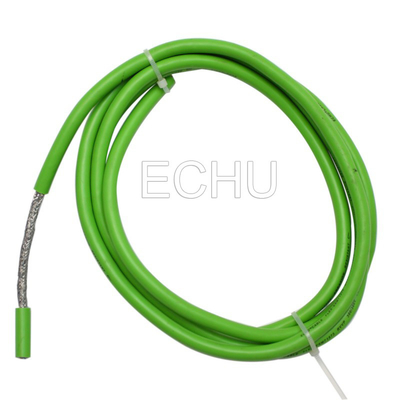

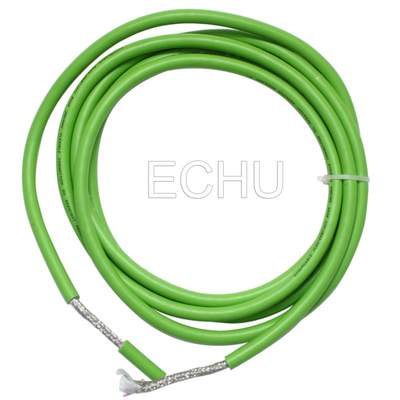

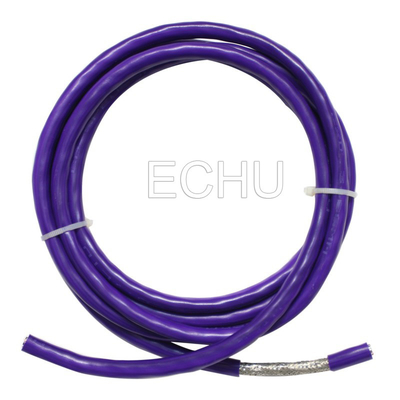

Screened Servo Cable for Highly Dynamic Power Chain Application

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	Servo-CY Servo-CY -FD Servo-CY-FD-PUR

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

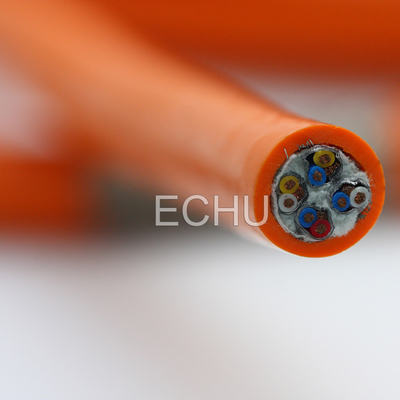

Screened Servo Cable for Highly Dynamic Power Chain Application

Screened servo cable with PUR outer sheath for highly dynamic power chain application . A wide range of motor, encoder and feedback cables suitable for fixed and constant flexing applications. Servo Motor Cables are especially suitable for moving connections in power chains, robots, because of their outstanding properties. They are combined as signalling and supply cables and offer space and weight savings with optimal operational reliability.
Connecting cable between servo controller and motor
In power chains or moving machine parts
For use in assembling & pick-and-place machinery
Particularly in wet areas of machine tools and transfer lines
Assembly lines, production lines, in all kinds of machines
For indoor and outdoor use

Product features

Dynamic power chain performance:
Acceleration up to 50 m/s².
Travel speeds up to 5 m/s.
Travel distances up to 100 m.
Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter
Flammability:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2
Halogen-free materials

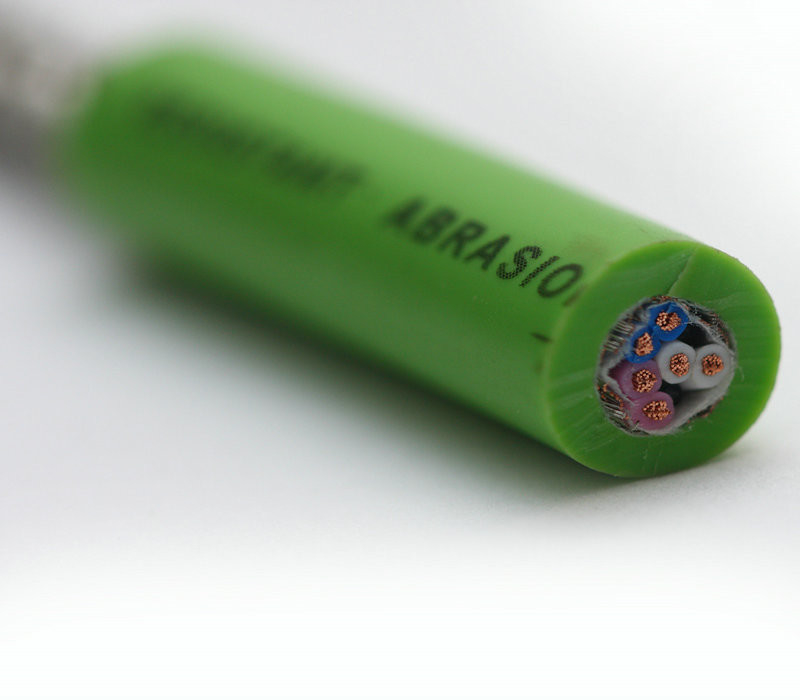

Abrasion and notch-resistant
Oil-resistant

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: polypropylene (PP)

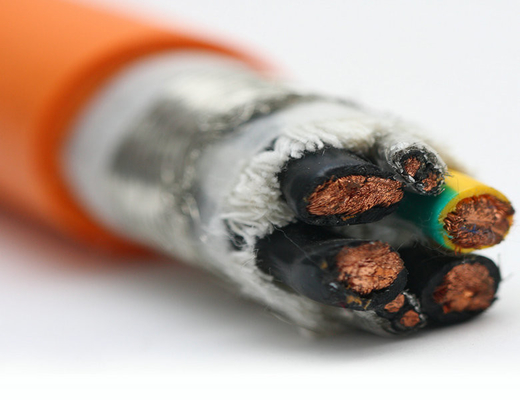

Individual design depending on the item:
Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
Power cores with control core triplet twisted together in short lay lengths
Non-woven wrapping
Tinned-copper braiding

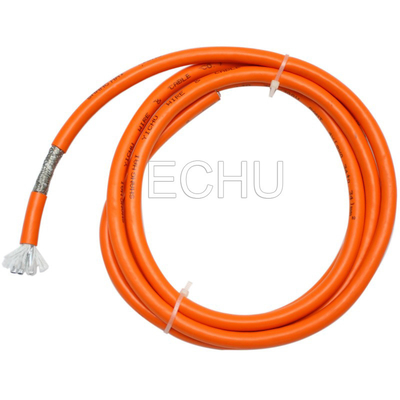

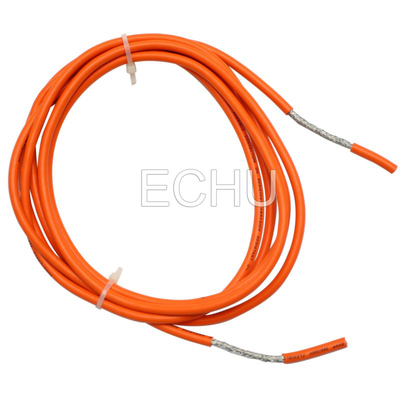

PUR outer sheath, orange (RAL 2003)

TYPE	SPEC.
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.0+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.0))
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x1.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x2.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x4.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x6.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x10.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x16.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)	4x25.0+(2x1.5)
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.0+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x1.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x2.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x4.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x6.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x10.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x16.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)	4x25.0+(2x1.5)P
