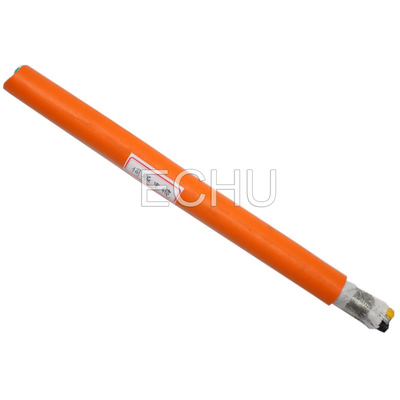

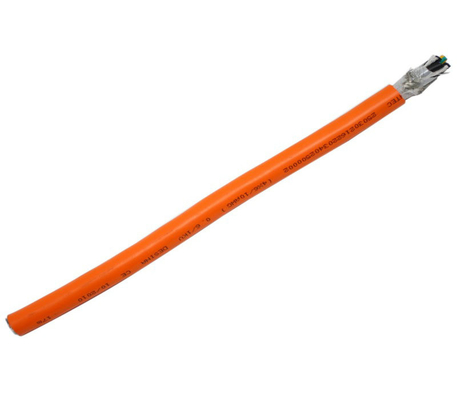

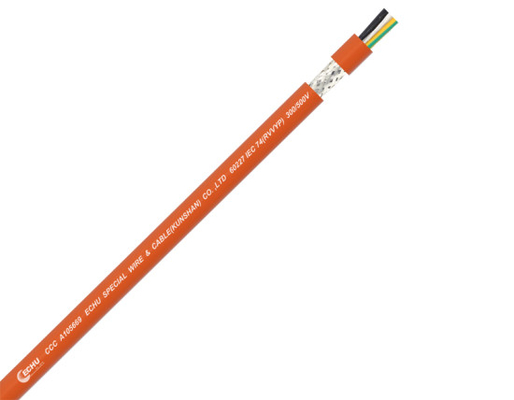

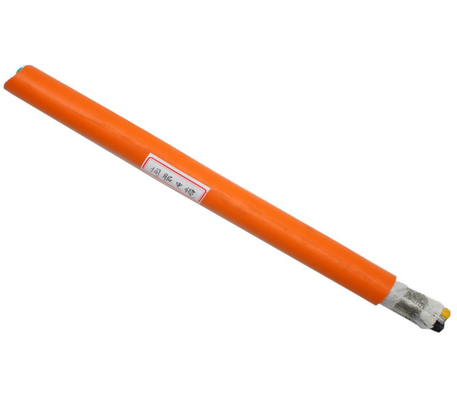

EV Charging Cable TPU Sheath , EV Power Cable TPE Insulation,Electric Vehicles Cable during the charging process(DC)
Advantages
a. High-flexible
b. Oil resistant
c. UV resistant
d: High-flame
e :Moisture-proof
Application Range
a. Connection wire between EV AC charging equipment .
b. EV AC Charging station, AC Charging pile.

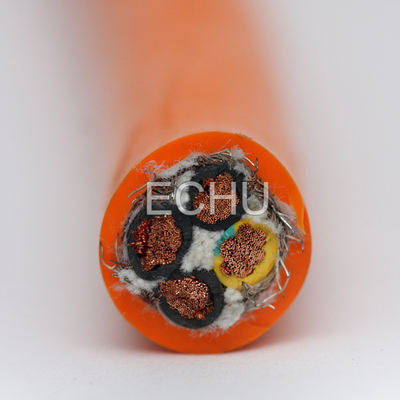

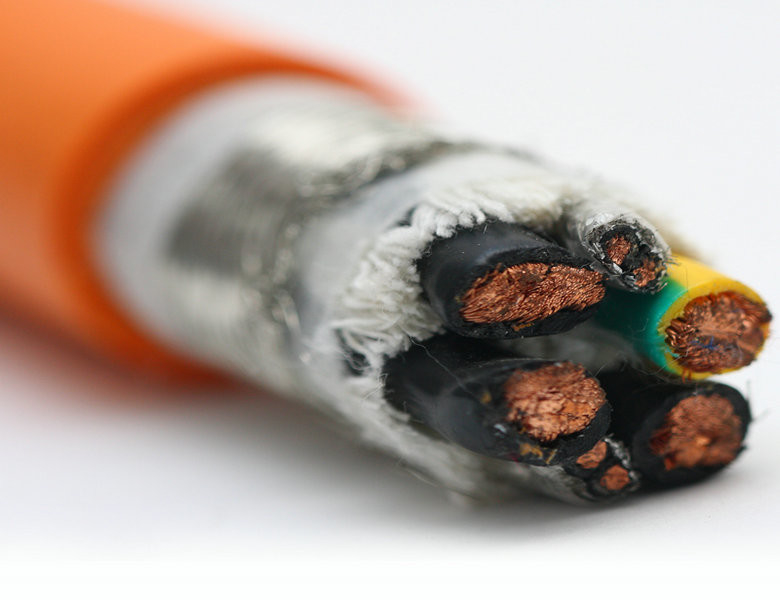

Construction
Conductor : stranded, tinned or bare copper, IEC60228 CLASS5
Insulation: TPE
Assembly:10~70(2~5cores)+0.5~0.75(P)(1~10cores)
Screened:bare or tinned copper braid
Non-woven wrap
Sheath:TPE
Application standard
CQC1103~1105-2015
RoHS,REACH Compliant
Technical data
Rated voltage:450/750V AC
Rated Temperature:-40℃-70℃
Flame:IEC60332-1-3, FT1, FT2
Voltage withstand test:
Power wire:1.0~70mm2:DC 2.5kV/5min
Signal wire:0.5~0.75mm2P :DC 1.5kV/5min
