UL2570 CABLES designed to be installed in washing-car systems due to their good water and cold resistance.
They are able to withstand moderate mechanical strains (speed and acceleration).
Therefore such cables are suitable for control and command system employed for machine tools, assembly lines, connection between control panels and devices for generic industrial equipment always within the mechanical constraints below listed.
UL/CSA approved:80°C 1000V style 2570 Bare copper complying with CEI EN 60228 (CEI 20-29) class 5 PVC compound class 43 according to UL 1581.
Numbered cores with yellow/green (for 3 or more cores) Bare copper wire braid. Coverage above 85% PVC compound class 43 according to UL 1581. Colour black 1000 V Fixed application :-30 ÷ 80 °C Dynamic installation:-10 ÷ 80 °C Minimum bending radius for dynamic installation:15 x outer diameter Minimum bending radius for fixed installation: 5 x outer diameter Cable flame test per UL 758 and FT-1 test per CSA C.22.2 n°210 Halogen gas emission : ≤ 18% IEC 60754, CEI EN 50267-2

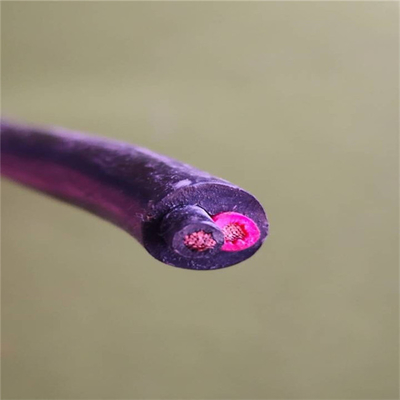

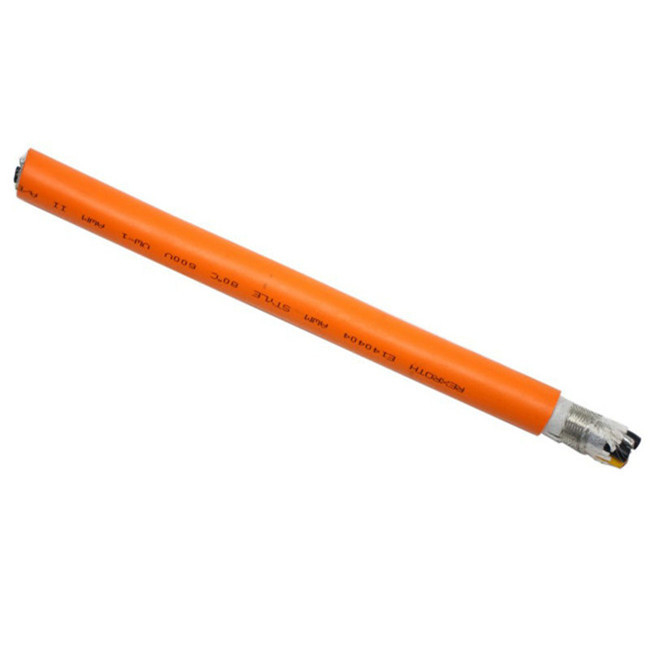

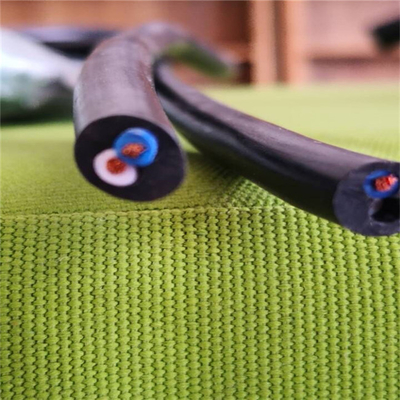

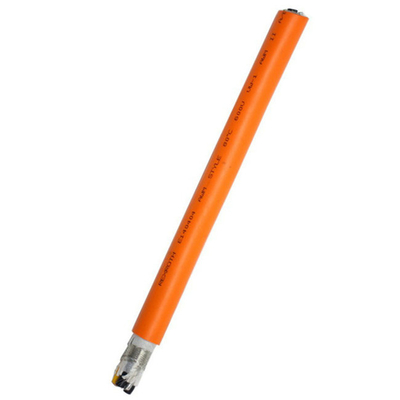

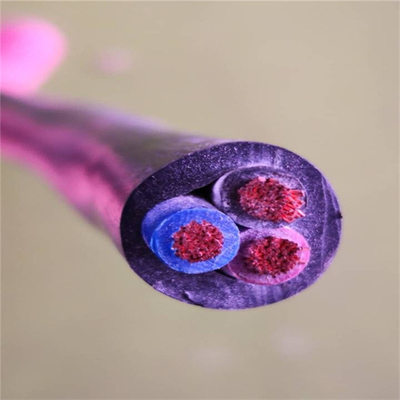

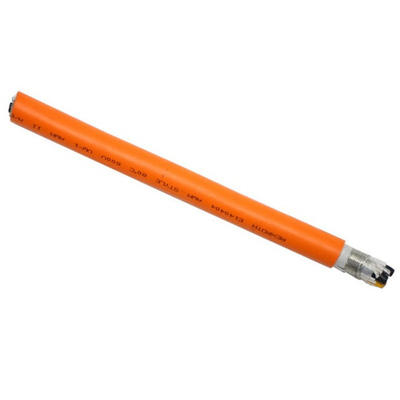

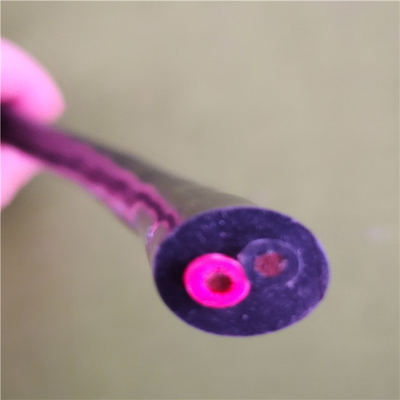

Construction
Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP
Shield or Braid: bare or tinned copper braid
Jacket: Special PVC
Standards
International: UL758 ,UL1581
RoHS
Application:These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Technical data
Rated voltage:600V
Rated Temperature:-40℃-80℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 3.5kV/1min Properties
Extensively oil resistant,
Conditional drag chain compatible
Conditional suitability for torsion
low Temperature
self-extinguishing and flame retardant
