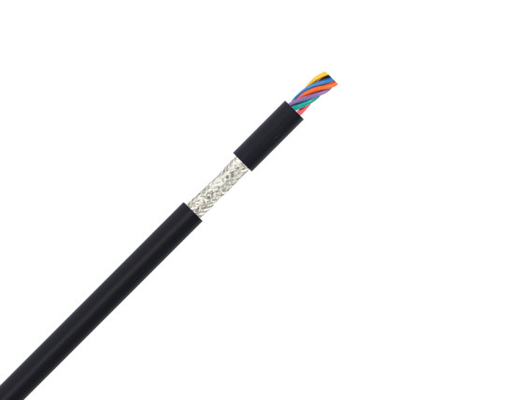

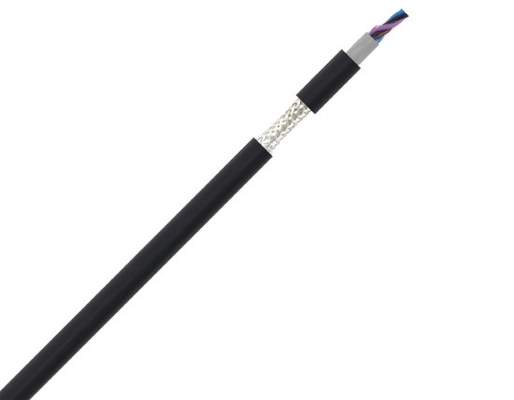

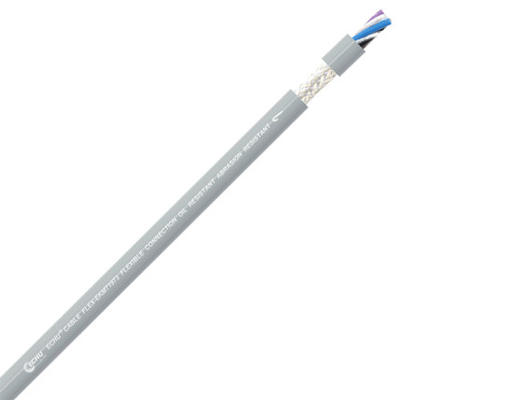

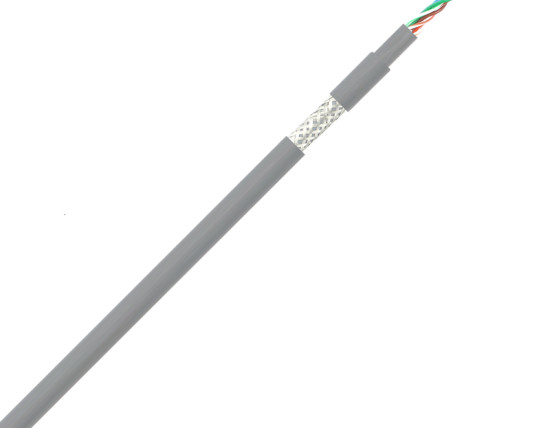

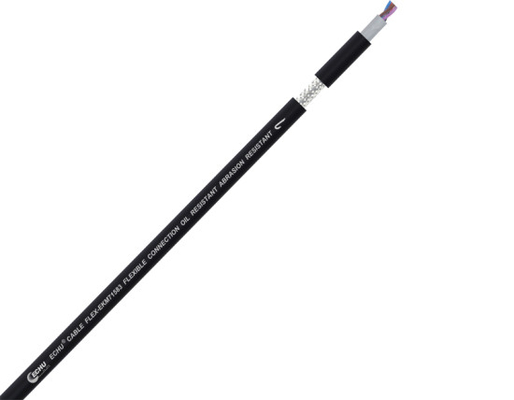

UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable

UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable

    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable
    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable
    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable
    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable
    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable
    • UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: UL2464

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD1.88
    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description
    Shield Or Braid: Bare Or Tinned Copper Braid Conductor: Bare Copper
    Standards: UL758



    UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer CableUL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer CableUL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable

    UL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer CableUL2464 2*2*16awg Tinned Copper Shielded Twisted Pair Computer Cable - UL758 Computer Cable



    Applications:
    As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete



    Properties:

    Good insulation property, excellent chemical performance, electromagnetic wave resistance. Excellent crosstalk-resistant property.


    Standards: UL 758


    Structure:

    Conductor: fine strands of tinned copper wire, exellent corrosion resistance.

    Insulation: special PVC

    Colour: acc. to UL 758

    Inner shielding: aluminum foil

    Drain wire: bare copper (optional)

    Shield: bare or tinned copper shielded

    Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing

    Colour: green (RAL6018) orange(RAL2003) purple(RAL4001)

    or refer to customers requirement.


    Technical data:

    Rated voltage: 300V

    Test voltage: 2000V



    Type Spec. pairs conductor No. Per Conductor Dia.φ Weight /KM
    UL2464 26AWG*2C 2 7 0.16 45.1
    UL2464 26AWG*2C 3 7 0.16 53.8
    UL2464 26AWG*2C 4 7 0.16 64.2
    UL2464 26AWG*2C 5 7 0.16 75.3
    UL2464 26AWG*2C 6 7 0.16 86.9
    UL2464 26AWG*2C 7 7 0.16 93.1
    UL2464 26AWG*2C 8 7 0.16 105
    UL2464 26AWG*2C 9 7 0.16 120
    UL2464 26AWG*2C 10 7 0.16 132.5
    UL2464 26AWG*2C 11 7 0.16 142
    UL2464 26AWG*2C 12 7 0.16 148.2
    UL2464 26AWG*2C 13 7 0.16 160.1
    UL2464 26AWG*2C 14 7 0.16 166.3
    UL2464 26AWG*2C 15 7 0.16 179.1
    UL2464 26AWG*2C 16 7 0.16 185.3
    UL2464 26AWG*2C 17 7 0.16 198.6
    UL2464 26AWG*2C 18 7 0.16 204.8
    UL2464 26AWG*2C 19 7 0.16 211
    UL2464 26AWG*2C 20 7 0.16 220.9
    UL2464 26AWG*2C 21 7 0.16 230.8
    UL2464 26AWG*2C 22 7 0.16 247.3
    UL2464 26AWG*2C 23 7 0.16 261.5
    UL2464 26AWG*2C 24 7 0.16 267.7
    UL2464 26AWG*2C 25 7 0.16 278.1
    UL2464 26AWG*2C 26 7 0.16 284.2
    UL2464 26AWG*2C 27 7 0.16 290.4
    UL2464 26AWG*2C 28 7 0.16 303.9
    UL2464 26AWG*2C 29 7 0.16 310.1
    UL2464 26AWG*2C 30 7 0.16 316.2
    UL2464 26AWG*2C 31 7 0.16 330.7
    UL2464 26AWG*2C 32 7 0.16 336.8
    UL2464 26AWG*2C 33 7 0.16 343
    UL2464 26AWG*2C 34 7 0.16 358.1
    UL2464 26AWG*2C 35 7 0.16 364.3
    UL2464 26AWG*2C 36 7 0.16 370.4
    　 　 　 　 　 　
    UL2464 25AWG*2C 2 11 0.14 48.8
    UL2464 25AWG*2C 3 11 0.14 58.4
    UL2464 25AWG*2C 4 11 0.14 69.9
    UL2464 25AWG*2C 5 11 0.14 82
    UL2464 25AWG*2C 6 11 0.14 94.6
    UL2464 25AWG*2C 7 11 0.14 101.9
    UL2464 25AWG*2C 8 11 0.14 114.8
    UL2464 25AWG*2C 9 11 0.14 130.7
    UL2464 25AWG*2C 10 11 0.14 144.1
    UL2464 25AWG*2C 11 11 0.14 154.7
    UL2464 25AWG*2C 12 11 0.14 162
    UL2464 25AWG*2C 13 11 0.14 174.9
    UL2464 25AWG*2C 14 11 0.14 182.2
    UL2464 25AWG*2C 15 11 0.14 196
    UL2464 25AWG*2C 16 11 0.14 203.2
    UL2464 25AWG*2C 17 11 0.14 217.5
    UL2464 25AWG*2C 18 11 0.14 224.8
    UL2464 25AWG*2C 19 11 0.14 232.1
    UL2464 25AWG*2C 20 11 0.14 243.1
    UL2464 25AWG*2C 21 11 0.14 254
    UL2464 25AWG*2C 22 11 0.14 271.3
    UL2464 25AWG*2C 23 11 0.14 286.4
    UL2464 25AWG*2C 24 11 0.14 293.7
    UL2464 25AWG*2C 25 11 0.14 305.1
    UL2464 25AWG*2C 26 11 0.14 312.4
    UL2464 25AWG*2C 27 11 0.14 319.7
    UL2464 25AWG*2C 28 11 0.14 334.1
    UL2464 25AWG*2C 29 11 0.14 341.4
    UL2464 25AWG*2C 30 11 0.14 348.7
    UL2464 25AWG*2C 31 11 0.14 364
    UL2464 25AWG*2C 32 11 0.14 371.3
    UL2464 25AWG*2C 33 11 0.14 378.6
    UL2464 25AWG*2C 34 11 0.14 394.6
    UL2464 25AWG*2C 35 11 0.14 401.8
    UL2464 25AWG*2C 36 11 0.14 409.1
    　 　 　 　 　 　
    UL2464 24AWG*2C 2 11 0.16 61.6
    UL2464 24AWG*2C 3 11 0.16 73
    UL2464 24AWG*2C 4 11 0.16 88
    UL2464 24AWG*2C 5 11 0.16 104
    UL2464 24AWG*2C 6 11 0.16 120.8
    UL2464 24AWG*2C 7 11 0.16 129.3
    UL2464 24AWG*2C 8 11 0.16 147.5
    UL2464 24AWG*2C 9 11 0.16 168.4
    UL2464 24AWG*2C 10 11 0.16 186.8
    UL2464 24AWG*2C 11 11 0.16 200.6
    UL2464 24AWG*2C 12 11 0.16 209.1
    UL2464 24AWG*2C 13 11 0.16 226.8
    UL2464 24AWG*2C 14 11 0.16 235.3
    UL2464 24AWG*2C 15 11 0.16 254.2
    UL2464 24AWG*2C 16 11 0.16 262.7
    UL2464 24AWG*2C 17 11 0.16 282.7
    UL2464 24AWG*2C 18 11 0.16 291.2
    UL2464 24AWG*2C 19 11 0.16 299.7
    UL2464 24AWG*2C 20 11 0.16 314.2
    UL2464 24AWG*2C 21 11 0.16 328.6
    UL2464 24AWG*2C 22 11 0.16 353.7
    UL2464 24AWG*2C 23 11 0.16 375.1
    UL2464 24AWG*2C 24 11 0.16 383.6
    UL2464 24AWG*2C 25 11 0.16 399
    UL2464 24AWG*2C 26 11 0.16 407.5
    UL2464 24AWG*2C 27 11 0.16 416
    UL2464 24AWG*2C 28 11 0.16 436.3
    UL2464 24AWG*2C 29 11 0.16 444.8
    UL2464 24AWG*2C 30 11 0.16 453.3
    UL2464 24AWG*2C 31 11 0.16 475.2
    UL2464 24AWG*2C 32 11 0.16 483.7
    UL2464 24AWG*2C 33 11 0.16 492.3
    UL2464 24AWG*2C 34 11 0.16 515.3
    UL2464 24AWG*2C 35 11 0.16 523.8
    UL2464 24AWG*2C 36 11 0.16 532.3
    　 　 　 　 　 　
    UL2464 22AWG*2C 2 17 0.16 73.8
    UL2464 22AWG*2C 3 17 0.16 90.4
    UL2464 22AWG*2C 4 17 0.16 110.1
    UL2464 22AWG*2C 5 17 0.16 131.8
    UL2464 22AWG*2C 6 17 0.16 153.6
    UL2464 22AWG*2C 7 17 0.16 166.2
    UL2464 22AWG*2C 8 17 0.16 188.5
    UL2464 22AWG*2C 9 17 0.16 214.8
    UL2464 22AWG*2C 10 17 0.16 238.3
    UL2464 22AWG*2C 11 17 0.16 256.7
    UL2464 22AWG*2C 12 17 0.16 269.3
    UL2464 22AWG*2C 13 17 0.16 292
    UL2464 22AWG*2C 14 17 0.16 304.7
    UL2464 22AWG*2C 15 17 0.16 328.8
    UL2464 22AWG*2C 16 17 0.16 341.5
    UL2464 22AWG*2C 17 17 0.16 366.6
    UL2464 22AWG*2C 18 17 0.16 379.3
    UL2464 22AWG*2C 19 17 0.16 392
    UL2464 22AWG*2C 20 17 0.16 411.2
    UL2464 22AWG*2C 21 17 0.16 430.3
    UL2464 22AWG*2C 22 17 0.16 461.1
    UL2464 22AWG*2C 23 17 0.16 488
    UL2464 22AWG*2C 24 17 0.16 500.7
    UL2464 22AWG*2C 25 17 0.16 520.9
    UL2464 22AWG*2C 26 17 0.16 533.5
    UL2464 22AWG*2C 27 17 0.16 546.2
    UL2464 22AWG*2C 28 17 0.16 571.8
    UL2464 22AWG*2C 29 17 0.16 584.5
    UL2464 22AWG*2C 30 17 0.16 597.1
    UL2464 22AWG*2C 31 17 0.16 624.5
    UL2464 22AWG*2C 32 17 0.16 637.2
    UL2464 22AWG*2C 33 17 0.16 649.8
    UL2464 22AWG*2C 34 17 0.16 678.4
    UL2464 22AWG*2C 35 17 0.16 691.1
    UL2464 22AWG*2C 36 17 0.16 703.7
    　 　 　 　 　 　
    UL2464 20AWG*2C 2 26 0.16 90.6
    UL2464 20AWG*2C 3 26 0.16 112.2
    UL2464 20AWG*2C 4 26 0.16 138.3
    UL2464 20AWG*2C 5 26 0.16 165
    UL2464 20AWG*2C 6 26 0.16 192.9
    UL2464 20AWG*2C 7 26 0.16 209.8
    UL2464 20AWG*2C 8 26 0.16 238.3
    UL2464 20AWG*2C 9 26 0.16 271.7
    UL2464 20AWG*2C 10 26 0.16 301.7
    UL2464 20AWG*2C 11 26 0.16 325.6
    UL2464 20AWG*2C 12 26 0.16 342.4
    UL2464 20AWG*2C 13 26 0.16 371.5
    UL2464 20AWG*2C 14 26 0.16 388.4
    UL2464 20AWG*2C 15 26 0.16 419.2
    UL2464 20AWG*2C 16 26 0.16 436.1
    UL2464 20AWG*2C 17 26 0.16 468.3
    UL2464 20AWG*2C 18 26 0.16 485.2
    UL2464 20AWG*2C 19 26 0.16 502
    UL2464 20AWG*2C 20 26 0.16 527
    UL2464 20AWG*2C 21 26 0.16 551.7
    UL2464 20AWG*2C 22 26 0.16 590.9
    UL2464 20AWG*2C 23 26 0.16 625.3
    UL2464 20AWG*2C 24 26 0.16 642.2
    UL2464 20AWG*2C 25 26 0.16 668.3
    UL2464 20AWG*2C 26 26 0.16 685.1
    UL2464 20AWG*2C 27 26 0.16 702
    UL2464 20AWG*2C 28 26 0.16 734.8
    UL2464 20AWG*2C 29 26 0.16 751.7
    UL2464 20AWG*2C 30 26 0.16 768.6
    UL2464 20AWG*2C 31 26 0.16 803.6
    UL2464 20AWG*2C 32 26 0.16 820.4
    UL2464 20AWG*2C 33 26 0.16 837.3
    UL2464 20AWG*2C 34 26 0.16 873.9
    UL2464 20AWG*2C 35 26 0.16 890.7
    UL2464 20AWG*2C 36 26 0.16 907.6
    　 　 　 　 　 　
    UL2464 18AWG*2C 2 41 0.16 115.3
    UL2464 18AWG*2C 3 41 0.16 146.4
    UL2464 18AWG*2C 4 41 0.16 182.5
    UL2464 18AWG*2C 5 41 0.16 220.5
    UL2464 18AWG*2C 6 41 0.16 260.1
    UL2464 18AWG*2C 7 41 0.16 284.9
    UL2464 18AWG*2C 8 41 0.16 325.4
    UL2464 18AWG*2C 9 41 0.16 372.6
    UL2464 18AWG*2C 10 41 0.16 415.3
    UL2464 18AWG*2C 11 41 0.16 449.7
    UL2464 18AWG*2C 12 41 0.16 474.5
    UL2464 18AWG*2C 13 41 0.16 516
    UL2464 18AWG*2C 14 41 0.16 540.9
    UL2464 18AWG*2C 15 41 0.16 584.9
    UL2464 18AWG*2C 16 41 0.16 609.8
    UL2464 18AWG*2C 17 41 0.16 655.6
    UL2464 18AWG*2C 18 41 0.16 680.5
    UL2464 18AWG*2C 19 41 0.16 705.3
    UL2464 18AWG*2C 20 41 0.16 741.3
    UL2464 18AWG*2C 21 41 0.16 777
    UL2464 18AWG*2C 22 41 0.16 832.5
    UL2464 18AWG*2C 23 41 0.16 881.4
    UL2464 18AWG*2C 24 41 0.16 906.3
    UL2464 18AWG*2C 25 41 0.16 943.9
    UL2464 18AWG*2C 26 41 0.16 968.8
    UL2464 18AWG*2C 27 41 0.16 993.7
    UL2464 18AWG*2C 28 41 0.16 1040.6
    UL2464 18AWG*2C 29 41 0.16 1065.5
    UL2464 18AWG*2C 30 41 0.16 1090.3
    UL2464 18AWG*2C 31 41 0.16 1140.3
    UL2464 18AWG*2C 32 41 0.16 1165.1
    UL2464 18AWG*2C 33 41 0.16 1190
    UL2464 18AWG*2C 34 41 0.16 1242.1
    UL2464 18AWG*2C 35 41 0.16 1267
    UL2464 18AWG*2C 36 41 0.16 1291.9
