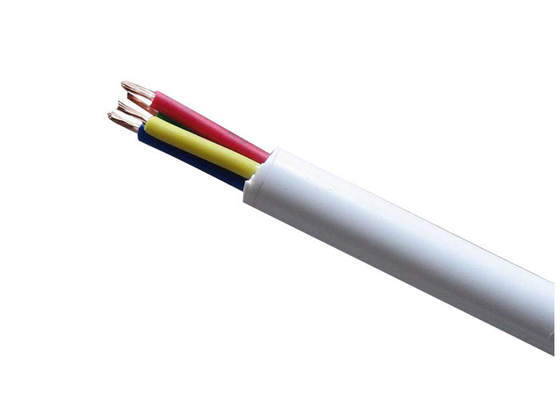

6241Y,6242Y,6243Y (PVC Insulated PVC Sheathed Flat Cable Twin and Earth Wire) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Description :
6241Y, 6242Y, 6243Y flat earth wire cable available in sizes 1mm to 16mm and 1, 2 or 3 core. These PVC sheathed surface wiring cables, or Twin and Earth flat cables, which are generally used in domestic wiring of fixed installations. This British standard BS6004 cable is suitable to be fixed directly onto surfaces, ran through cable tray, Embedded or in free air,if there are no hazards from mechanical impact damage. These cables are not intended to be laid underground.
Construction:
1.Conductor: Plain annealed copper solid (1.0 - 2.5mm²) or stranded (4.0 - 16.0mm²) circular conductor complying with BS EN 60228 Class 1 or Class 2.
2.Insulation: PVC Insulation complying with BS EN 50363-3.
3.Sheath: PVC sheath complying with BS7655.
4.Circuit Protective Conductor. 300/500V.
