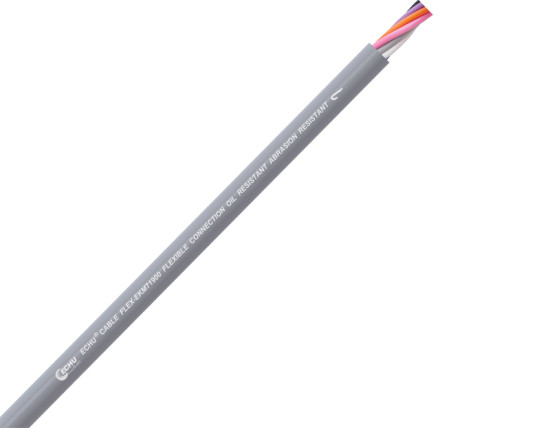

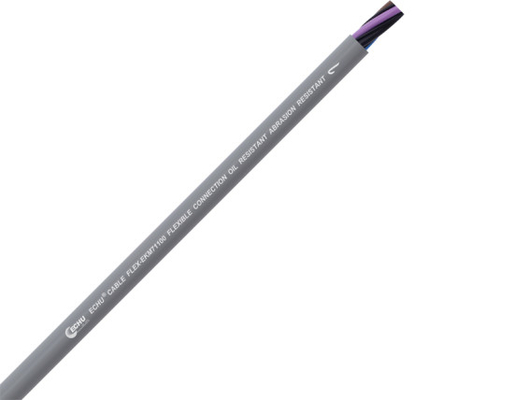

Harmonized Electrical Cable H05VV-F / H03VV-F

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	RVV H05VV-F H03VV-F

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

Type:	Insulated	Conductor Material:	Copper
Application:	Industrial	Insulation Material:	PVC
Conductor Type:	Stranded	Rated Voltage:	300V,450/750v
Color:	Any Color Can Be Customized	Product Name:	PVC Speaker Cable Electric Wire,Textile Wire Fabric Cable Braided Electrical Wire Cloth Covered Wire,Electrical Coper Cable Wire 2.5mm
Jacket:	PVC	Insulation:	PVC Insulation Cable
Standard:	IEC 60227	Material:	Copper
Core:	1 Core,2 Core,Multi-core	Name:	Electric Wire Types
Package:	100 Meters Per Roll Or Customized

Harmonized Electrical Cable H05VV-F / H03VV-F

Harmonized / Europe Bulk Power Cable, Bulk Power Cord Wire H03VVH2-F, CE APPROVALS

Applications:
Working as connecting and control cable under dry or wet indoor
situation, especially for kinds of electronic installation of industrial
condition, The cable cross section area 0.55mm or upper could work
as control and connecting cable in machine tool manufacture, whole
set equipment installation, power station, belching and air condition
installation, For its special flexibility, it could also work in installation
or fixation.

Properties:
For PVCS high mechanical property, excellent insulation,good chemi-
stry stability,water resistance.Coloured core identification cable has
more excellent capability and safety service.

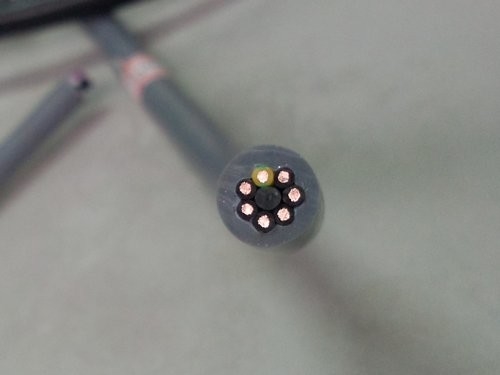

Structure:
Conductor: copper acc. VDE0295CLASS 5
Insulation: Special PVC
Colour: ≤0.5mm Colour signed acc. DIN47100
≥0.5mm:Black number with white series number

if more 3 cores will have yellow and green earth

Inner liner: PP or non-woven for buffer

Sheath: pvc 70ºC sheath, black (RAL9005)or grey(RAL 7001)

Standards:JB8734.4-1998 GB5023.5-1997

Technical data:

Minimum bending diameter

Fixed Installation: 15X outer diameter

Flexing Installation: 6X outer diameter

Temperature range:
Fixed Installation: -10ºC to +70ºC
Special Installation: -30ºC to +70ºC
Test voltage(v):
≤0.5mm: 2000V
≥0.5mm: 2500V

woking voltage(V):

≤0.5mm: 300/300V

≥0.5mm: 300/500V

Optional: flat cable

TYPE	SPECIFICATION	CONDUCTOR NO.	PER CONDUCTOR DIAφ	WEIGHT KG/KM	OUTER DIA
H03VV-F	0.5*2C	16	0.2	47.9	5.4
H03VV-F	0.5*3C	16	0.2	56.8	5.7
H03VV-F	0.5*4C	16	0.2	74.8	6.6
H03VV-F	0.5*5C	16	0.2	91.1	7.4
H03VV-F	0.5*6C	16	0.2	108.2	8.2
H03VV-F	0.5*7C	16	0.2	117.9	8.2
H03VV-F	0.5*8C	16	0.2	133.5	8.9
H03VV-F	0.5*9C	16	0.2	152.7	9.8
H03VV-F	0.5*10C	16	0.2	172.2	10.5
H03VV-F	0.5*11C	16	0.2	187.1	10.9
H03VV-F	0.5*12C	16	0.2	193.8	10.9
H03VV-F	0.5*13C	16	0.2	212	11.5
H03VV-F	0.5*14C	16	0.2	218.6	11.5
H03VV-F	0.5*15C	16	0.2	238.2	12.1
H03VV-F	0.5*16C	16	0.2	247.2	12.1
H03VV-F	0.5*17C	16	0.2	267.6	12.8
H03VV-F	0.5*18C	16	0.2	274.3	12.8
H03VV-F	0.5*19C	16	0.2	284	12.8
H03VV-F	0.5*20C	16	0.2	296.4	13.2
H03VV-F	0.5*21C	16	0.2	311.8	13.5
H03VV-F	0.5*22C	16	0.2	318.5	14.5
H03VV-F	0.5*23C	16	0.2	336.5	15.0
H03VV-F	0.5*24C	16	0.2	346.2	15.0
H03VV-F	0.5*25C	16	0.2	360.3	15.3
H03VV-F	0.5*26C	16	0.2	370	15.3
H03VV-F	0.5*27C	16	0.2	379.7	15.3
H03VV-F	0.5*28C	16	0.2	396.9	15.9
H03VV-F	0.5*29C	16	0.2	406.6	15.9
H03VV-F	0.5*30C	16	0.2	416.3	15.9
H03VV-F	0.5*31C	16	0.2	434.6	16.6
H03VV-F	0.5*32C	16	0.2	444.3	16.6
H03VV-F	0.5*33C	16	0.2	454	16.6
H03VV-F	0.5*34C	16	0.2	473	17.3
H03VV-F	0.5*35C	16	0.2	482.7	17.3
H03VV-F	0.5*36C	16	0.2	492.4	17.3

H03VV-F	0.75*2C	24	0.2	53.2	5.8
H03VV-F	0.75*3C	24	0.2	64.9	6.1
H03VV-F	0.75*4C	24	0.2	64.9	6.5

H05VV-F	0.75*2C	24	0.2	64.8	6.3
H05VV-F	0.75*3C	24	0.2	77.2	6.7
H05VV-F	0.75*4C	24	0.2	93	7.3
H05VV-F	0.75*5C	24	0.2	113.7	8.1
H05VV-F	0.75*6C	24	0.2	135.6	9.1
H05VV-F	0.75*7C	24	0.2	149.1	9.1
H05VV-F	0.75*8C	24	0.2	178.4	10.2
H05VV-F	0.75*9C	24	0.2	204.4	11.3
H05VV-F	0.75*10C	24	0.2	230.9	12.1
H05VV-F	0.75*11C	24	0.2	251.3	12.6
H05VV-F	0.75*12C	24	0.2	260.7	12.6
H05VV-F	0.75*13C	24	0.2	285.5	13.3
H05VV-F	0.75*14C	24	0.2	294.6	13.3
H05VV-F	0.75*15C	24	0.2	321.3	14
H05VV-F	0.75*16C	24	0.2	333.3	14
H05VV-F	0.75*17C	24	0.2	361.1	14.7
H05VV-F	0.75*18C	24	0.2	370.4	14.7
H05VV-F	0.75*19C	24	0.2	383.9	14.7
H05VV-F	0.75*20C	24	0.2	400.9	15.1
H05VV-F	0.75*21C	24	0.2	421.9	15.5
H05VV-F	0.75*22C	24	0.2	430.5	16.6
H05VV-F	0.75*23C	24	0.2	455	17.4
H05VV-F	0.75*24C	24	0.2	468.5	17.4
H05VV-F	0.75*25C	24	0.2	487.7	17.8
H05VV-F	0.75*26C	24	0.2	501.2	17.8
H05VV-F	0.75*27C	24	0.2	514.7	17.8
H05VV-F	0.75*28C	24	0.2	538.2	18.5
H05VV-F	0.75*29C	24	0.2	551.7	18.5
H05VV-F	0.75*30C	24	0.2	565.2	18.5
H05VV-F	0.75*31C	24	0.2	590	19.3
H05VV-F	0.75*32C	24	0.2	603.5	19.3
H05VV-F	0.75*33C	24	0.2	617	19.3
H05VV-F	0.75*34C	24	0.2	642.8	20.1
H05VV-F	0.75*35C	24	0.2	656.3	20.1
H05VV-F	0.75*36C	24	0.2	669.8	20.1

H05VV-F	1.0*2C	32	0.2	74.7	6.7
H05VV-F	1.0*3C	32	0.2	89.6	7.1
H05VV-F	1.0*4C	32	0.2	112.4	8
H05VV-F	1.0*5C	32	0.2	132.7	8.7
H05VV-F	1.0*6C	32	0.2	169.2	10.1
H05VV-F	1.0*7C	32	0.2	185.6	10.1
H05VV-F	1.0*8C	32	0.2	210.7	11
H05VV-F	1.0*9C	32	0.2	241.5	12.2
H05VV-F	1.0*10C	32	0.2	272.9	13.1
H05VV-F	1.0*11C	32	0.2	297.4	13.5
H05VV-F	1.0*12C	32	0.2	308.9	13.5
H05VV-F	1.0*13C	32	0.2	338.4	14.3
H05VV-F	1.0*14C	32	0.2	349.6	14.3
H05VV-F	1.0*15C	32	0.2	381.3	14.9
H05VV-F	1.0*16C	32	0.2	395.7	14.9
H05VV-F	1.0*17C	32	0.2	428.7	15.8
H05VV-F	1.0*18C	32	0.2	440.1	15.8
H05VV-F	1.0*19C	32	0.2	456.5	15.8
H05VV-F	1.0*20C	32	0.2	476.9	16.3
H05VV-F	1.0*21C	32	0.2	502	16.7
H05VV-F	1.0*22C	32	0.2	512.3	17.9
H05VV-F	1.0*23C	32	0.2	541.3	18.8
H05VV-F	1.0*24C	32	0.2	557.7	18.8
H05VV-F	1.0*25C	32	0.2	580.7	19.2
H05VV-F	1.0*26C	32	0.2	597.1	19.2
H05VV-F	1.0*27C	32	0.2	613.5	19.2
H05VV-F	1.0*28C	32	0.2	641.5	20
H05VV-F	1.0*29C	32	0.2	657.8	20
H05VV-F	1.0*30C	32	0.2	674.2	20
H05VV-F	1.0*31C	32	0.2	703.7	20.9
H05VV-F	1.0*32C	32	0.2	720.1	20.9
H05VV-F	1.0*33C	32	0.2	736.5	20.9
H05VV-F	1.0*34C	32	0.2	767.1	21.7
H05VV-F	1.0*35C	32	0.2	783.5	21.7
H05VV-F	1.0*36C	32	0.2	799.9	21.7

H05VV-F	1.5*2C	48	0.2	98.9	7.4
H05VV-F	1.5*3C	48	0.2	124.1	8.1
H05VV-F	1.5*4C	48	0.2	155.6	9
H05VV-F	1.5*5C	48	0.2	189.2	10.1
H05VV-F	1.5*6C	48	0.2	220.9	11.1
H05VV-F	1.5*7C	48	0.2	244.5	11.1
H05VV-F	1.5*8C	48	0.2	278.5	12.1
H05VV-F	1.5*9C	48	0.2	319.8	13.5
H05VV-F	1.5*10C	48	0.2	362.7	14.6
H05VV-F	1.5*11C	48	0.2	396.6	15.1
H05VV-F	1.5*12C	48	0.2	413.4	15.1
H05VV-F	1.5*13C	48	0.2	453.7	16
H05VV-F	1.5*14C	48	0.2	470.2	16
H05VV-F	1.5*15C	48	0.2	513.4	17
H05VV-F	1.5*16C	48	0.2	533.6	17
H05VV-F	1.5*17C	48	0.2	578.6	18
H05VV-F	1.5*18C	48	0.2	595.3	18
H05VV-F	1.5*19C	48	0.2	618.9	18
H05VV-F	1.5*20C	48	0.2	647.1	18.6
H05VV-F	1.5*21C	48	0.2	682	19.1
H05VV-F	1.5*22C	48	0.2	695	20.5
H05VV-F	1.5*23C	48	0.2	734.4	21.5
H05VV-F	1.5*24C	48	0.2	758	21.5
H05VV-F	1.5*25C	48	0.2	789.9	22
H05VV-F	1.5*26C	48	0.2	813.5	22
H05VV-F	1.5*27C	48	0.2	837.2	22
H05VV-F	1.5*28C	48	0.2	875.3	23
H05VV-F	1.5*29C	48	0.2	898.9	23
H05VV-F	1.5*30C	48	0.2	922.5	23
H05VV-F	1.5*31C	48	0.2	962.6	23.9
H05VV-F	1.5*32C	48	0.2	986.2	23.9
H05VV-F	1.5*33C	48	0.2	1009.9	23.9
H05VV-F	1.5*34C	48	0.2	1051.5	25
H05VV-F	1.5*35C	48	0.2	1075.1	25
H05VV-F	1.5*36C	48	0.2	1098.7	25
H05VV-F	1.5*37C	48	0.2	1122.3	25

H05VV-F	2.0*2C	64	0.2	122.4	8.4
H05VV-F	2.0*3C	64	0.2	163.3	9.5
H05VV-F	2.0*4C	64	0.2	203.6	10.6
H05VV-F	2.0*5C	64	0.2	240.9	11.6
H05VV-F	2.0*6C	64	0.2	285.3	12.8
H05VV-F	2.0*7C	64	0.2	324.3	13.1
H05VV-F	2.0*8C	64	0.2	369	14.2
H05VV-F	2.0*9C	64	0.2	423.4	15.6
H05VV-F	2.0*10C	64	0.2	479.5	16.8
H05VV-F	2.0*11C	64	0.2	523.7	17.4
H05VV-F	2.0*12C	64	0.2	545.6	17.4
H05VV-F	2.0*13C	64	0.2	598.3	18.4
H05VV-F	2.0*14C	64	0.2	619.8	18.4
H05VV-F	2.0*15C	64	0.2	676.3	19.6
H05VV-F	2.0*16C	64	0.2	702	19.6
H05VV-F	2.0*17C	64	0.2	760.7	20.8
H05VV-F	2.0*18C	64	0.2	782.6	20.8
H05VV-F	2.0*19C	64	0.2	813.2	20.8
H05VV-F	2.0*20C	64	0.2	850.1	21.4
H05VV-F	2.0*21C	64	0.2	895.5	21.9
H05VV-F	2.0*22C	64	0.2	913.4	23.5
H05VV-F	2.0*23C	64	0.2	965	24.7
H05VV-F	2.0*24C	64	0.2	995.6	24.7
H05VV-F	2.0*25C	64	0.2	1037.4	25.3
H05VV-F	2.0*26C	64	0.2	1068	25.3
H05VV-F	2.0*27C	64	0.2	1098.6	25.3
H05VV-F	2.0*28C	64	0.2	1148.5	26.3
H05VV-F	2.0*29C	64	0.2	1179.1	26.3
H05VV-F	2.0*30C	64	0.2	1209.8	26.3
H05VV-F	2.0*31C	64	0.2	1262.3	27.5
H05VV-F	2.0*32C	64	0.2	1292.9	27.5
H05VV-F	2.0*33C	64	0.2	1323.5	27.5
H05VV-F	2.0*34C	64	0.2	1378	28.6
H05VV-F	2.0*35C	64	0.2	1408.6	28.6
H05VV-F	2.0*36C	64	0.2	1439.2	28.6
H05VV-F	2.0*37C	64	0.2	1469.9	28.6

H05VV-F	2.5*2C	80	0.2	151.3	9.4
H05VV-F	2.5*3C	80	0.2	189.3	10.2
H05VV-F	2.5*4C	80	0.2	230.9	11.1
H05VV-F	2.5*5C	80	0.2	280.4	12.4
H05VV-F	2.5*6C	80	0.2	335.6	13.8
H05VV-F	2.5*7C	80	0.2	372.4	13.8
H05VV-F	2.5*8C	80	0.2	423.4	14.9
H05VV-F	2.5*9C	80	0.2	484.8	16.5
H05VV-F	2.5*10C	80	0.2	548.8	17.8
H05VV-F	2.5*11C	80	0.2	600.1	18.4
H05VV-F	2.5*12C	80	0.2	626.5	18.4
H05VV-F	2.5*13C	80	0.2	686.7	19.5
H05VV-F	2.5*14C	80	0.2	712.6	19.5
H05VV-F	2.5*15C	80	0.2	776.8	20.7
H05VV-F	2.5*16C	80	0.2	807.4	20.7
H05VV-F	2.5*17C	80	0.2	873.9	22
H05VV-F	2.5*18C	80	0.2	900.2	22
H05VV-F	2.5*19C	80	0.2	937	22
H05VV-F	2.5*20C	80	0.2	979.3	22.6
H05VV-F	2.5*21C	80	0.2	1031.7	23.3
H05VV-F	2.5*22C	80	0.2	1140.1	24.9
H05VV-F	2.5*23C	80	0.2	1180.1	26.2
H05VV-F	2.5*24C	80	0.2	1204	26.2
H05VV-F	2.5*25C	80	0.2	1258.1	26.8
H05VV-F	2.5*26C	80	0.2	1294.8	26.8
H05VV-F	2.5*27C	80	0.2	1263.6	26.8
H05VV-F	2.5*28C	80	0.2	1319.4	27.9
H05VV-F	2.5*29C	80	0.2	1356.2	27.9
H05VV-F	2.5*30C	80	0.2	1392.9	27.9
H05VV-F	2.5*31C	80	0.2	1451.3	29.1
H05VV-F	2.5*32C	80	0.2	1488	29.1
H05VV-F	2.5*33C	80	0.2	1524.7	29.1
H05VV-F	2.5*34C	80	0.2	1585	30.4
H05VV-F	2.5*35C	80	0.2	1621.7	30.4
H05VV-F	2.5*36C	80	0.2	1658.4	30.4
H05VV-F	2.5*37C	80	0.2	1695.2	30.4

H05VV-F	4.0*2C	82	0.25	203.1	10.6
H05VV-F	4.0*3C	82	0.25	257	11.5
H05VV-F	4.0*4C	82	0.25	329.3	13
H05VV-F	4.0*5C	82	0.25	398.1	14.4
H05VV-F	4.0*6C	82	0.25	469.6	15.6
H05VV-F	4.0*7C	82	0.25	523.4	15.6
H05VV-F	4.0*8C	82	0.25	595.7	17.1
H05VV-F	4.0*9C	82	0.25	681.8	19.1
H05VV-F	4.0*10C	82	0.25	771.7	20.5
H05VV-F	4.0*11C	82	0.25	844.8	21.3
H05VV-F	4.0*12C	82	0.25	884.7	21.3
H05VV-F	4.0*13C	82	0.25	969.6	22.5
H05VV-F	4.0*14C	82	0.25	1008.7	22.5
H05VV-F	4.0*15C	82	0.25	1099	23.9
H05VV-F	4.0*16C	82	0.25	1143.7	23.9
H05VV-F	4.0*17C	82	0.25	1237	25.4
H05VV-F	4.0*18C	82	0.25	1276.7	25.4
H05VV-F	4.0*19C	82	0.25	1330.6	25.4
H05VV-F	4.0*20C	82	0.25	1391.5	26.1
H05VV-F	4.0*21C	82	0.25	1466.2	26.9
H05VV-F	4.0*22C	82	0.25	1615.6	28.8
H05VV-F	4.0*23C	82	0.25	1673.1	30.3
H05VV-F	4.0*24C	82	0.25	1709.5	30.3
H05VV-F	4.0*25C	82	0.25	1786.4	31
H05VV-F	4.0*26C	82	0.25	1840.3	31
H05VV-F	4.0*27C	82	0.25	1802.4	31
H05VV-F	4.0*28C	82	0.25	1881.3	32.3
H05VV-F	4.0*29C	82	0.25	1935.1	32.3
H05VV-F	4.0*30C	82	0.25	1988.9	32.3

H05VV-F	6.0*2C	80	0.31	272	12
H05VV-F	6.0*3C	80	0.31	361	13.4
H05VV-F	6.0*4C	80	0.31	452	14.9
H05VV-F	6.0*5C	80	0.31	548	16.3
H05VV-F	6.0*6C	80	0.31	648	18
H05VV-F	6.0*7C	80	0.31	725	18
H05VV-F	6.0*8C	80	0.31	825	19.7
H05VV-F	6.0*9C	80	0.31	944	22
H05VV-F	6.0*10C	80	0.31	1069	23.7
H05VV-F	6.0*11C	80	0.31	1171	24.6
H05VV-F	6.0*12C	80	0.31	1229	24.6
H05VV-F	6.0*13C	80	0.31	1347	26
H05VV-F	6.0*14C	80	0.31	1404	26
H05VV-F	6.0*15C	80	0.31	1529	27.7
H05VV-F	6.0*16C	80	0.31	1592	27.7
H05VV-F	6.0*17C	80	0.31	1721	29.4
H05VV-F	6.0*18C	80	0.31	1779	29.4
H05VV-F	6.0*19C	80	0.31	1856	29.4
H05VV-F	6.0*20C	80	0.31	1942	30.2
H05VV-F	6.0*21C	80	0.31	2046	31.1

H05VV-F	10.0*2C	80	0.4	460.2	15.6
H05VV-F	10.0*3C	80	0.4	627.9	17.5
H05VV-F	10.0*4C	80	0.4	786.2	19.5
H05VV-F	10.0*5C	80	0.4	954.5	21.6
H05VV-F	10.0*6C	80	0.4	1129.3	23.9
H05VV-F	10.0*7C	80	0.4	1263.5	23.9
H05VV-F	10.0*8C	80	0.4	1440.6	26.1
H05VV-F	10.0*9C	80	0.4	1651.3	29.1

H05VV-F	16.0*2C	127	0.4	679	18.7
H05VV-F	16.0*3C	127	0.4	861.8	20.1
H05VV-F	16.0*4C	127	0.4	1086.8	22.4
H05VV-F	16.0*5C	127	0.4	1324.5	25
H05VV-F	16.0*6C	127	0.4	1570.8	27.7
H05VV-F	16.0*7C	127	0.4	1766.5	27.7
H05VV-F	16.0*8C	127	0.4	2015.7	30.4

H05VV-F	25.0*2C	199	0.4	1028.7	22.2
H05VV-F	25.0*3C	199	0.4	1310.7	23.9
H05VV-F	25.0*4C	199	0.4	1656.6	26.8
H05VV-F	25.0*5C	199	0.4	2021.9	30.0
H05VV-F	25.0*6C	199	0.4	2400.1	33.3

H05VV-F	35.0*2C	278	0.4	1285	25.0
H05VV-F	35.0*3C	278	0.4	1639	26.9
H05VV-F	35.0*4C	278	0.4	2120.9	30.8
