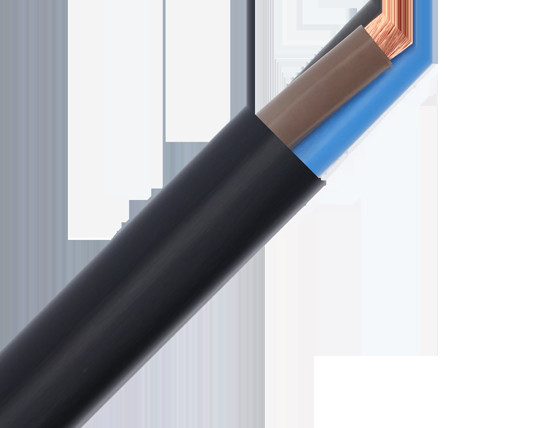

VVR Copper Core PVC Insulated PVC sheathed flexible power cable
VVRP Braided Shielding Copper Core PVC Insulated PVC sheathed flexible power cable

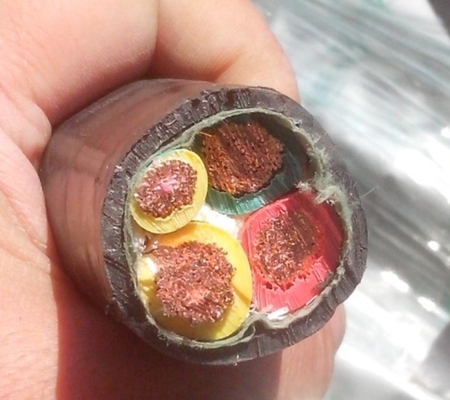

YJVR Copper Core XLPE Insulated PVC sheathed flexible power cable
YJVRP Braided Shielding Copper Core XLPE Insulated PVC sheathed flexible power cable
Product Description
Conductor:fine strands copper wire accoring to : GB3956 class 5 or Class 6.
VVR VVRP Insulation: PVC/D type PVC insulaed.
YJVR YJVRP Insulation: XLPE insulated.
Colors: 5cores or smaller than 5 cores, the insulation with colors recognition(different colors) ,if the cores bigger than 5 cores,the insulation with color recognition(different colors) or digital recognition.

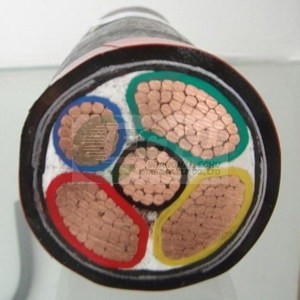

Conductor structure: Twisted with ropes to increase tension stress, after this can add PP tape,aluminium myra or non-woven belt as buffer.
Shielding: bare copper braided shielding Sheath: PVC/ST5 cold resistance jacket.Black(RAL9005) OR Grey(RAL7001).
Technical parameters
Rated voltage: U0/U 0.6/1KV Test Voltage: Insulation thickness of more than 0.6 or more:3000V. Finished product testing:3000V.
Minimum bending radius Fixed laying:6*D( cable diameter)
VVR VVRP Temperature: -15℃ to +70℃ ,YJVR YJVRP Temperature: -30℃ to +90℃
Combustion experiment: by GB/T 18380.1-2001 TEST
The main features: Good soft bending good oil resistance, resistance to moisture, with a special has the ability of resistance to electromagnetic interference shielding of the cable. Typical applications 1,for power transmission cable. 2,for power transmission sites need to be shielded.
