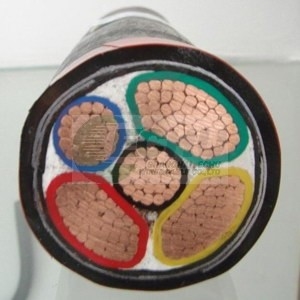

0.6/1KV Cross-linked Polyethylene (XLPE) Insulation PVC sheath Power Cable (CU/XLPE/PVC)

Implementation of the standards: 1,this product is designed and manufactured according to GB/T12706-2002. 2,flame retardant power cable accordance with the standards of production enterprises,flame retardant characteristics meet the requirements GB/T18380.3. 3,fire-resistant power cables manufactured accoring to corporate standards, including fire-resistant characteristics meet GB/T12666.6 requirements. Characteristics: 1,Long-term allowable working temperature of cable conductor does not exceed 90℃.Circuit is blocked (the longest duration of no more than 5 seconds).the conductor temperature does not exceed 180 ℃. 2,While installation the ambient temperature should not less than 0℃,lower than 0℃ should be prehrated. Minimum bending radius of not less than cable diameter, single-core cables without armor 20 times,there with armor-cable 15 times, three-core cables without armor 15 times, there with armor-cable 12 times 3,DC reistance of conductor shall comply with the provisions of GB/T3956 4, Power frequency withstand voltage test:3.5KV/5min without breakdown. Manin use: This product is suitable for AC rated voltage 0.6/1KV the circuit, Transmission of electrical energy used. Flame retardant power cable is suitable installed in fire-retardant demanding situations, Resistant power cable for high-rise building, shopping malls and other densely populated areas. Retardant performance 1,Retardant cable can withstand GB/T 18380.3 prescribed bunched burning test. 2,smoke density in accordance with the requirement of GB/T 17651.1. 3,Combustion gases precipitated HCL content should be <and =100mg/g 4,resistant cable can withstand GBA/T 12666.6 fire test requirements. YJV Copper conductor/XLPE insulation/PVC outer sheath Power Cable
YJY Copper conductor/XLPE insulation/PE outer sheath Power Cable
ZC-YJV Copper conductor/XLPE insulation flame-retardant Power Cable
WDZC-YJY Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable
NH-YJV Copper conductor/XLPE insulation fire-resistant Power Cable
