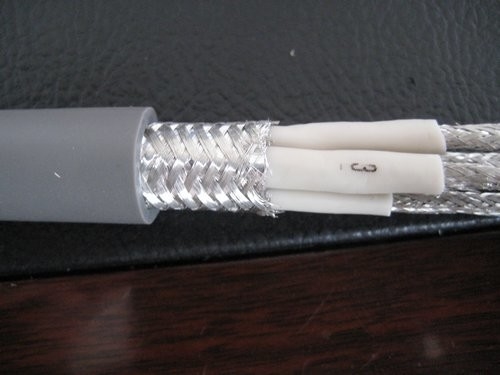

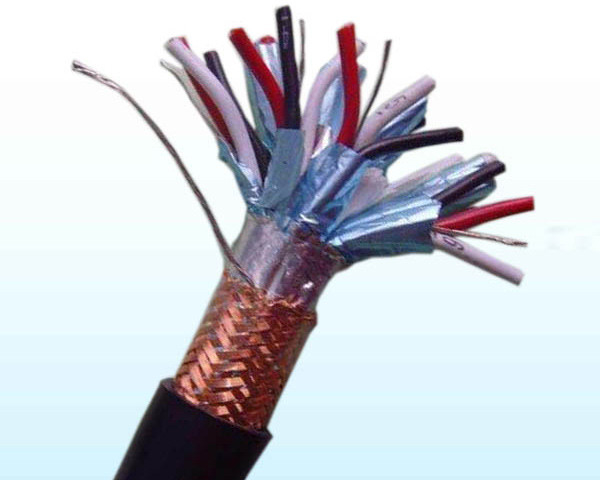

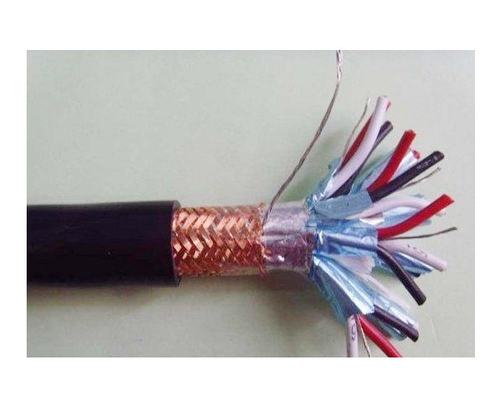

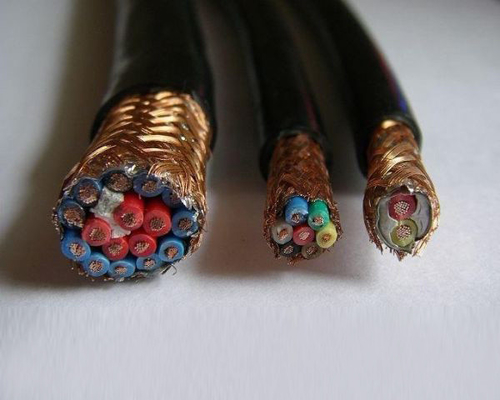

For use in applications such as automation systems, production lines and measurement systems. Mult-pair shield instrument cables
PE, XLPE, PVC Insulation optional
Al-foil, Cu Wire Braid, Cu Tape Shield Optional Specifications

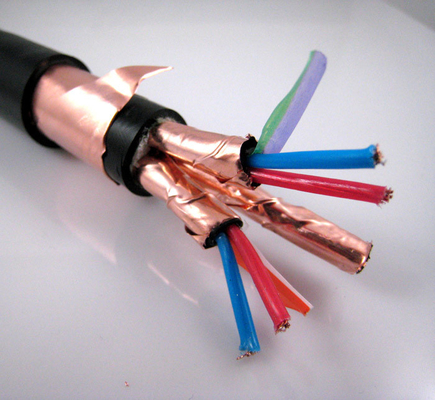

Mult-pair shield armored instrument cables
solid or flexible copper or tinned copper conductor
PE, XLPE, PVC Insulation optional
Al-foil, Cu Wire Braid, Cu Tape Shield Optional
Application:
It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power - generating metallurgy petroling chemistry.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair): 1~19
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
| TYPE |
PAIRS |
SPEC. |
Cond. No. |
Cond. Dia φ |
Weight /KM |
External Dia. mm |
| DJYPVP |
2pairs |
0.75*2C |
1 |
0.98 |
115 |
11.8 |
| DJYPVP |
3pairs |
0.75*2C |
1 |
0.98 |
145 |
12.5 |
| DJYPVP |
4pairs |
0.75*2C |
1 |
0.98 |
179 |
13.7 |
| DJYPVP |
5pairs |
0.75*2C |
1 |
0.98 |
214 |
15.1 |
| DJYPVP |
6pairs |
0.75*2C |
1 |
0.98 |
251 |
16.5 |
| DJYPVP |
7pairs |
0.75*2C |
1 |
0.98 |
275 |
16.5 |
| DJYPVP |
8pairs |
0.75*2C |
1 |
0.98 |
312 |
18 |
| DJYPVP |
9pairs |
0.75*2C |
1 |
0.98 |
340 |
18.5 |
| DJYPVP |
10pairs |
0.75*2C |
1 |
0.98 |
378 |
19.9 |
| DJYPVP |
11pairs |
0.75*2C |
1 |
0.98 |
422 |
22.1 |
| DJYPVP |
12pairs |
0.75*2C |
1 |
0.98 |
447 |
22.1 |
| DJYPVP |
13pairs |
0.75*2C |
1 |
0.98 |
483 |
23.3 |
| DJYPVP |
14pairs |
0.75*2C |
1 |
0.98 |
508 |
23.3 |
| DJYPVP |
15pairs |
0.75*2C |
1 |
0.98 |
546 |
24.7 |
| DJYPVP |
16pairs |
0.75*2C |
1 |
0.98 |
570 |
24.7 |
| |
|
|
|
|
|
|
| DJYPVP |
2pairs |
1.0*2C |
1 |
1.13 |
133 |
12.6 |
| DJYPVP |
3pairs |
1.0*2C |
1 |
1.13 |
169 |
13.4 |
| DJYPVP |
4pairs |
1.0*2C |
1 |
1.13 |
209 |
14.7 |
| DJYPVP |
5pairs |
1.0*2C |
1 |
1.13 |
251 |
16.2 |
| DJYPVP |
6pairs |
1.0*2C |
1 |
1.13 |
294 |
17.7 |
| DJYPVP |
7pairs |
1.0*2C |
1 |
1.13 |
324 |
17.7 |
| DJYPVP |
8pairs |
1.0*2C |
1 |
1.13 |
368 |
19.3 |
| DJYPVP |
9pairs |
1.0*2C |
1 |
1.13 |
403 |
19.8 |
| DJYPVP |
10pairs |
1.0*2C |
1 |
1.13 |
447 |
21.4 |
| DJYPVP |
11pairs |
1.0*2C |
1 |
1.13 |
500 |
23.7 |
| DJYPVP |
12pairs |
1.0*2C |
1 |
1.13 |
530 |
23.7 |
| DJYPVP |
13pairs |
1.0*2C |
1 |
1.13 |
574 |
25.1 |
| DJYPVP |
14pairs |
1.0*2C |
1 |
1.13 |
603 |
25.1 |
| DJYPVP |
15pairs |
1.0*2C |
1 |
1.13 |
649 |
26.6 |
| DJYPVP |
16pairs |
1.0*2C |
1 |
1.13 |
679 |
26.6 |
| |
|
|
|
|
|
|
| DJYPVP |
2pairs |
1.5*2C |
1 |
1.38 |
179 |
13.8 |
| DJYPVP |
3pairs |
1.5*2C |
1 |
1.38 |
235 |
14.7 |
| DJYPVP |
4pairs |
1.5*2C |
1 |
1.38 |
298 |
16.2 |
| DJYPVP |
5pairs |
1.5*2C |
1 |
1.38 |
365 |
18 |
| DJYPVP |
6pairs |
1.5*2C |
1 |
1.38 |
435 |
19.8 |
| DJYPVP |
7pairs |
1.5*2C |
1 |
1.38 |
486 |
19.8 |
| DJYPVP |
8pairs |
1.5*2C |
1 |
1.38 |
559 |
21.6 |
| DJYPVP |
9pairs |
1.5*2C |
1 |
1.38 |
618 |
22.1 |
| DJYPVP |
10pairs |
1.5*2C |
1 |
1.38 |
695 |
23.9 |
| DJYPVP |
11pairs |
1.5*2C |
1 |
1.38 |
789 |
26.7 |
| DJYPVP |
12pairs |
1.5*2C |
1 |
1.38 |
843 |
26.7 |
| DJYPVP |
13pairs |
1.5*2C |
1 |
1.38 |
922 |
28.2 |
| DJYPVP |
14pairs |
1.5*2C |
1 |
1.38 |
976 |
28.2 |
| DJYPVP |
15pairs |
1.5*2C |
1 |
1.38 |
1061 |
29.9 |
