Application
This product applies for connecting wire of electric appliance,apparatus or computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V or D.C.1000V.
Description
Copper Conductor size of 0.5,0.75,1.0,1.5sqmm
PE, XLPE, PVC Insulation optional
Mult-pair/triple copper wire braiding shielded instrument cables 1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times

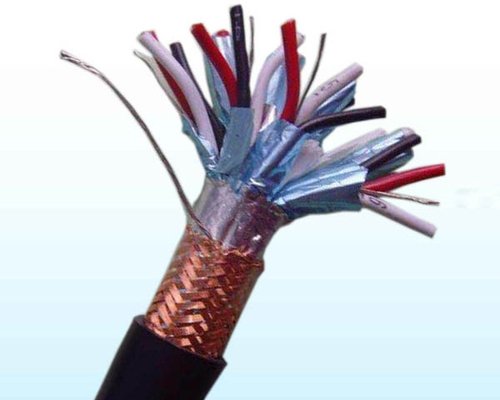

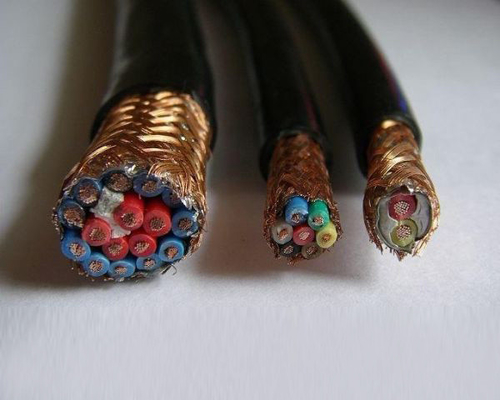

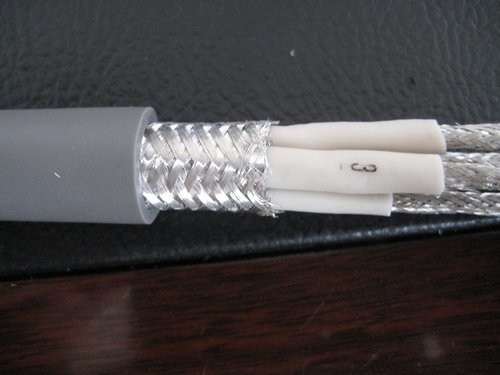

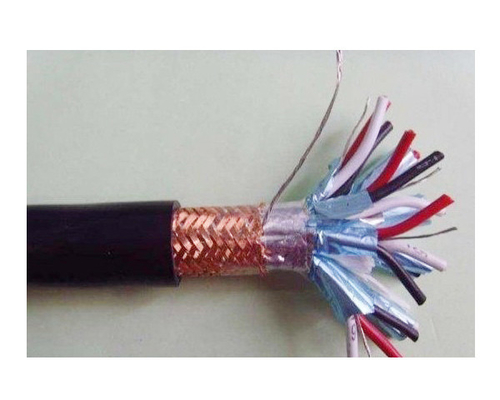

DJYVP Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
DJYVPR Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
DJYPV Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding
DJYPVR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual shielding
DJYPVP Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
DJYPVPR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
DJYVP2 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielded
DJYVP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding

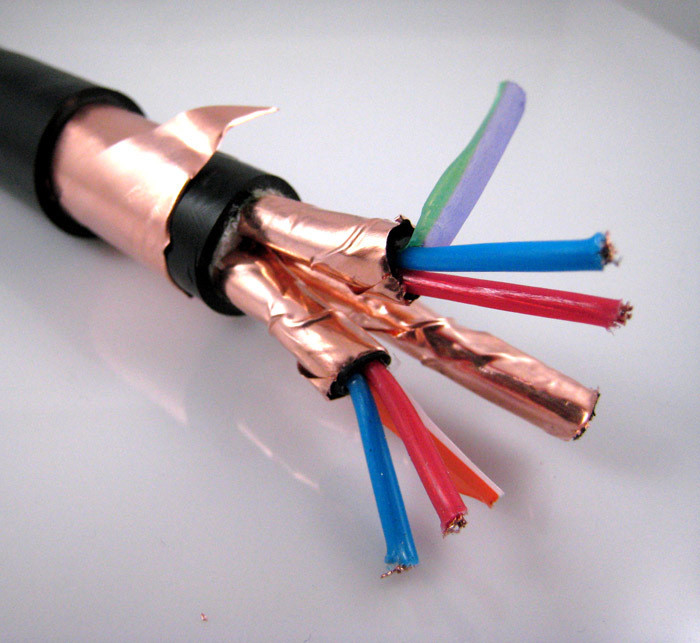

DJYP2V Instrumenation cable with Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
DJYP2VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
DJYP2VP2 Instrumenation cable with Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
DJYP2VP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
DJYVP3 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
DJYVP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
DJYP3V Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
DJYP3VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
DJYP3VP3 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
DJYP3VP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
DJYVP22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding, steel tape armor
DJYPV22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor
DJYPVP22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor
DJYVP2-22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping overall shielding, steel tape armor
DJYP2V22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel tape armor
DJYP2VP2-22 Instrumenation cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & overall shielding, steel tape armor
DJYVP3-22 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel tape armor
DJYP3V22 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor
DJYP3VP3-22 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & overall shielding, steel tape armor
| TYPE |
PAIRS |
SPEC. |
Cond. No. |
Cond. Dia φ |
Weight /KM |
External Dia. mm |
| DJYPVP |
2pairs |
0.75*2C |
1 |
0.98 |
115 |
11.8 |
| DJYPVP |
3pairs |
0.75*2C |
1 |
0.98 |
145 |
12.5 |
| DJYPVP |
4pairs |
0.75*2C |
1 |
0.98 |
179 |
13.7 |
| DJYPVP |
5pairs |
0.75*2C |
1 |
0.98 |
214 |
15.1 |
| DJYPVP |
6pairs |
0.75*2C |
1 |
0.98 |
251 |
16.5 |
| DJYPVP |
7pairs |
0.75*2C |
1 |
0.98 |
275 |
16.5 |
| DJYPVP |
8pairs |
0.75*2C |
1 |
0.98 |
312 |
18 |
| DJYPVP |
9pairs |
0.75*2C |
1 |
0.98 |
340 |
18.5 |
| DJYPVP |
10pairs |
0.75*2C |
1 |
0.98 |
378 |
19.9 |
| DJYPVP |
11pairs |
0.75*2C |
1 |
0.98 |
422 |
22.1 |
| DJYPVP |
12pairs |
0.75*2C |
1 |
0.98 |
447 |
22.1 |
| DJYPVP |
13pairs |
0.75*2C |
1 |
0.98 |
483 |
23.3 |
| DJYPVP |
14pairs |
0.75*2C |
1 |
0.98 |
508 |
23.3 |
| DJYPVP |
15pairs |
0.75*2C |
1 |
0.98 |
546 |
24.7 |
| DJYPVP |
16pairs |
0.75*2C |
1 |
0.98 |
570 |
24.7 |
| |
|
|
|
|
|
|
| DJYPVP |
2pairs |
1.0*2C |
1 |
1.13 |
133 |
12.6 |
| DJYPVP |
3pairs |
1.0*2C |
1 |
1.13 |
169 |
13.4 |
| DJYPVP |
4pairs |
1.0*2C |
1 |
1.13 |
209 |
14.7 |
| DJYPVP |
5pairs |
1.0*2C |
1 |
1.13 |
251 |
16.2 |
| DJYPVP |
6pairs |
1.0*2C |
1 |
1.13 |
294 |
17.7 |
| DJYPVP |
7pairs |
1.0*2C |
1 |
1.13 |
324 |
17.7 |
| DJYPVP |
8pairs |
1.0*2C |
1 |
1.13 |
368 |
19.3 |
| DJYPVP |
9pairs |
1.0*2C |
1 |
1.13 |
403 |
19.8 |
| DJYPVP |
10pairs |
1.0*2C |
1 |
1.13 |
447 |
21.4 |
| DJYPVP |
11pairs |
1.0*2C |
1 |
1.13 |
500 |
23.7 |
| DJYPVP |
12pairs |
1.0*2C |
1 |
1.13 |
530 |
23.7 |
| DJYPVP |
13pairs |
1.0*2C |
1 |
1.13 |
574 |
25.1 |
| DJYPVP |
14pairs |
1.0*2C |
1 |
1.13 |
603 |
25.1 |
| DJYPVP |
15pairs |
1.0*2C |
1 |
1.13 |
649 |
26.6 |
| DJYPVP |
16pairs |
1.0*2C |
1 |
1.13 |
679 |
26.6 |
| |
|
|
|
|
|
|
| DJYPVP |
2pairs |
1.5*2C |
1 |
1.38 |
179 |
13.8 |
| DJYPVP |
3pairs |
1.5*2C |
1 |
1.38 |
235 |
14.7 |
| DJYPVP |
4pairs |
1.5*2C |
1 |
1.38 |
298 |
16.2 |
| DJYPVP |
5pairs |
1.5*2C |
1 |
1.38 |
365 |
18 |
| DJYPVP |
6pairs |
1.5*2C |
1 |
1.38 |
435 |
19.8 |
| DJYPVP |
7pairs |
1.5*2C |
1 |
1.38 |
486 |
19.8 |
| DJYPVP |
8pairs |
1.5*2C |
1 |
1.38 |
559 |
21.6 |
| DJYPVP |
9pairs |
1.5*2C |
1 |
1.38 |
618 |
22.1 |
| DJYPVP |
10pairs |
1.5*2C |
1 |
1.38 |
695 |
23.9 |
| DJYPVP |
11pairs |
1.5*2C |
1 |
1.38 |
789 |
26.7 |
| DJYPVP |
12pairs |
1.5*2C |
1 |
1.38 |
843 |
26.7 |
| DJYPVP |
13pairs |
1.5*2C |
1 |
1.38 |
922 |
28.2 |
| DJYPVP |
14pairs |
1.5*2C |
1 |
1.38 |
976 |
28.2 |
| DJYPVP |
15pairs |
1.5*2C |
1 |
1.38 |
1061 |
29.9 |
