Specifications
CU-screened,EMC preferred can be used in machine tools,plant and appliance contruction,heating,air conditions and so on.
Detailed Product Description

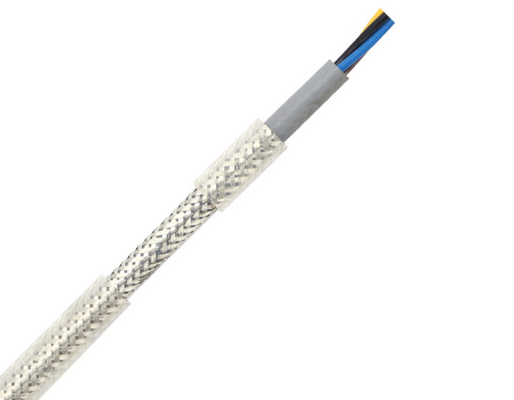

CU-Screen,EMC prefered cable:
The flexible shielded EKF43065-control cable works as control and connection cable.
Applications:
The flexible shielded EKF43065-control cable works as control and connection cable.It is applied in machine tools, plant and appliance construction , heating and air conditionning and ventilation technology as well as for other applications in electrical equipment especially where a greater electromagnetic compatibility is requird.
Properties:
waterproofing , oil resistance, cool resistance, Its bending for life is more than normal installationcable's . but could not work as tray cable.
CE CERTIFICATION

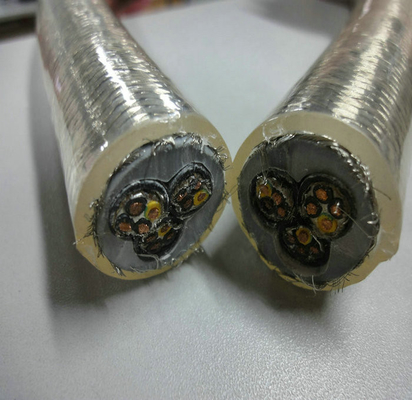

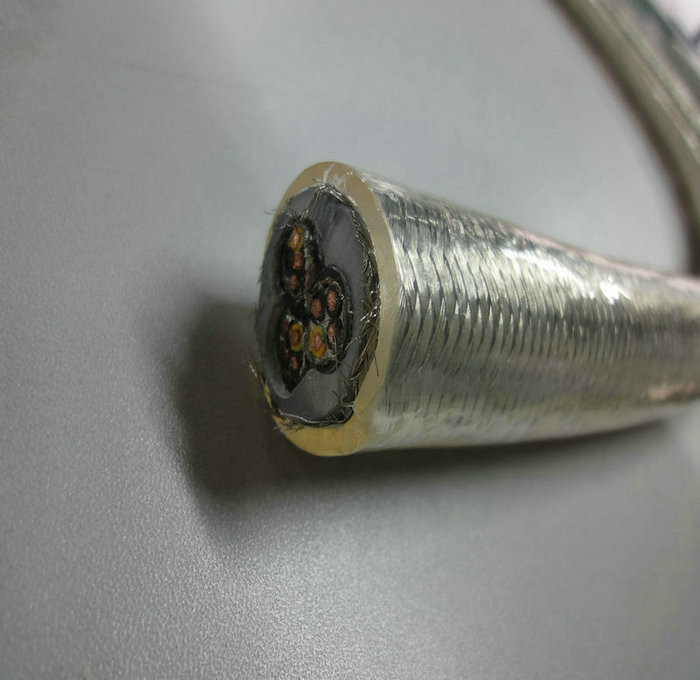

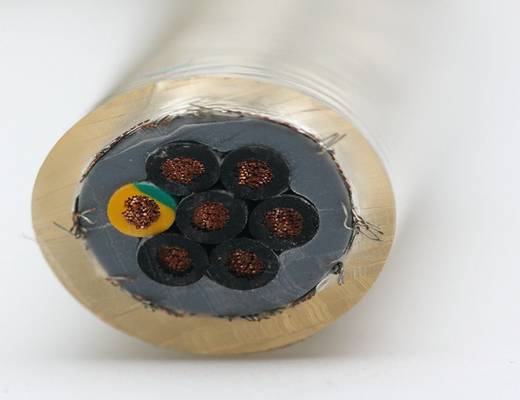

Structure:
Conductor: fine strands of oxygen-free copper wire, acc to VDE0295 CLASS 5
Insulation: SPECIAL PVC
Colour: black number with digital coding, 3cores or more with green /yellow earth wire.
sheath:special PVC ., oil resistance

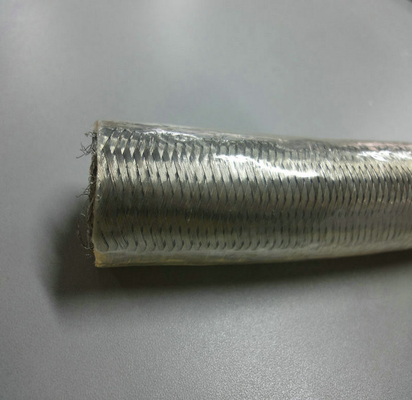

shielding : tinned copper brainded shielding
dentity:above 80%
Sheath: Transparent PVC orange(RAL2003)/BLACK(RAL9005)/GREY(RAL7001)
Related voltage:below 1.0mm2 300v/500v
above 1.5mm2 450/750v
when installation protection:600v/1000v
test voltage :4000v
The working temp.fixed installation:-30C-+70c
flexing installation:-10-70C
MInimum bending radius: fixinginstallation;4XOUTER DIAMETER
flexing installation : 15xouter diameter
