Cables and Wires with Low Smoke, Zero Halogen, Heat Resistance Used in Rail Transportation and Public PLace
Product Description
Irradiated XLPE Insulation Cable Contains the properties of high class temperaturer, stability of electricity, Machinery and chemical performance. By its low smoke, zero halogen and heat resistance materials and structures, this cable enhances its in safe and environment protection condition.
Therefore, it can be widely used in high-rise buildings,hospitals, big libraries, gyms,stations.civil airports, passengers waiting rooms, cultural relics protection institutes,subways and some public places.
WDZ-YJY XLPE Insulation, Low smoke zero halogen PO sheath Power cable.
WDZ-YJY23 XLPE,Steel tape armoured, low smoke zero halogen,flame resistance, PO sheath Power Cable
WDZ-KYJY XLPE Insulation, Low smoke zero halogen PO sheath Control cable.
WDZ-KYJY23 XLPE,Steel tape armoured, low smoke zero halogen,flame resistance, PO sheath control Cable

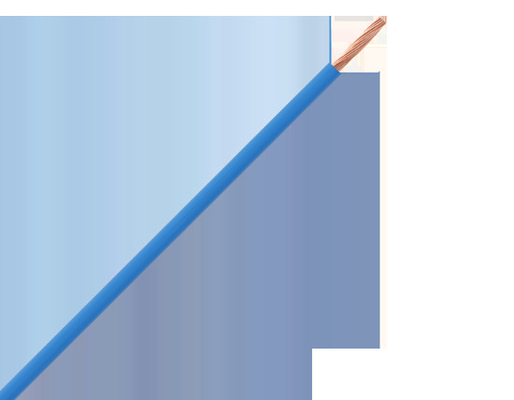

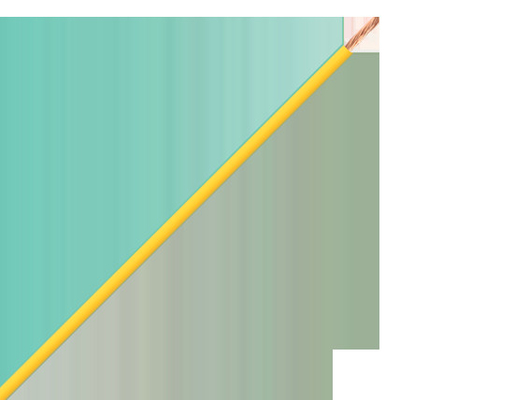

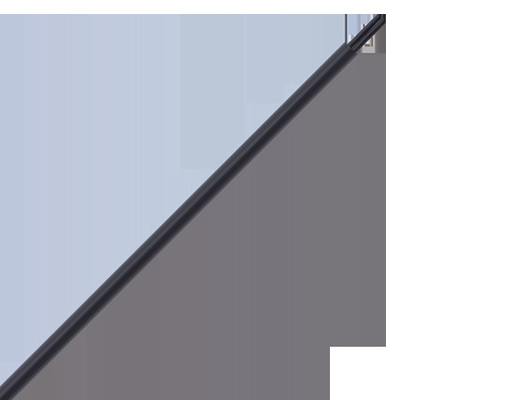

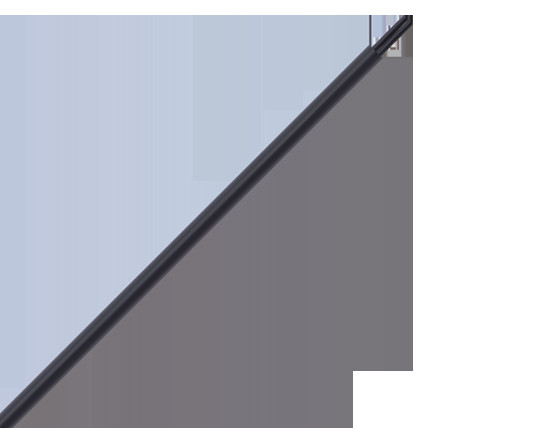

WDZ-BY XLPE low smoke zero halogen flame resistance PO insulation Solid single core Wire ( Class 1 solid copper conductor )
WDZ-BYR XLPE low smoke zero halogen flame resistance PO insulation Stranded single core Wire ( Class 2 Stranded copper conductor )
WDZ-RY XLPE low smoke zero halogen flame resistance PO insulation Strands single core Wire ( Class 5 Strands copper conductor )
WDZ-RYY XLPE low smoke zero halogen flame resistance PO insulation PO Sheath strands multicore cable ( Class 5 strands copper conductor )
WDZ-RYYP XLPE low smoke zero halogen flame resistance PO insulation PO Sheath strands Shielded multicore cable ( Class 5 strands copper conductor )
| TYPE |
Spec. |
Conductor No. |
Conductor Dia. |
External Dia/Least mm |
|
External Dia. mm |
| WDZ-BY |
0.5 |
1 |
0.8 |
2.0 |
～ |
2.2 |
| WDZ-BY |
0.75 |
1 |
0.98 |
2.2 |
～ |
2.4 |
| WDZ-BY |
0.75 |
7 |
0.37 |
2.3 |
～ |
2.5 |
| WDZ-BY |
1 |
1 |
1.13 |
2.3 |
～ |
2.5 |
| WDZ-BY |
1 |
7 |
0.43 |
2.5 |
～ |
2.7 |
| WDZ-BY |
1.5 |
1 |
1.38 |
2.8 |
～ |
3.0 |
| WDZ-BY |
1.5 |
7 |
0.52 |
3.0 |
～ |
3.2 |
| WDZ-BY |
2.5 |
1 |
1.78 |
3.4 |
～ |
3.6 |
| WDZ-BY |
4 |
1 |
2.25 |
3.9 |
～ |
4.1 |
| WDZ-BY |
6 |
1 |
2.76 |
4.4 |
～ |
4.6 |
| WDZ-BY |
7 |
7 |
1.13 |
5.4 |
～ |
5.6 |
| WDZ-BY |
10 |
7 |
1.35 |
6.1 |
～ |
6.3 |
| WDZ-BY |
16 |
7 |
1.7 |
7.1 |
～ |
7.3 |
| WDZ-BY |
25 |
7 |
2.14 |
8.8 |
～ |
9.0 |
| WDZ-BY |
35 |
7 |
2.52 |
10.0 |
～ |
10.4 |
| WDZ-BY |
50 |
19 |
1.78 |
11.7 |
～ |
12.1 |
| WDZ-BY |
70 |
19 |
2.14 |
13.5 |
～ |
13.9 |
| |
|
|
|
|
|
|
| WDZ-BYR |
2.5 |
19 |
0.40 |
3.6 |
～ |
3.8 |
| WDZ-BYR |
4 |
19 |
0.52 |
4.2 |
～ |
4.4 |
| WDZ-BYR |
6 |
27 |
0.52 |
4.7 |
～ |
4.9 |
| WDZ-BYR |
10 |
45 |
0.52 |
6.1 |
～ |
6.3 |
| WDZ-BYR |
16 |
72 |
0.52 |
7.7 |
～ |
7.9 |
| WDZ-BYR |
25 |
112 |
0.52 |
9.5 |
～ |
9.7 |
| WDZ-BYR |
35 |
157 |
0.52 |
10.9 |
～ |
11.3 |
| WDZ-BYR |
50 |
235 |
0.52 |
13.2 |
～ |
13.6 |
| WDZ-BYR |
70 |
313 |
0.52 |
14.9 |
～ |
15.3 |
| |
|
|
|
|
|
|
| WDZ-RY |
0.5 |
28 |
0.14 |
2.0 |
～ |
2.2 |
| WDZ-RY |
0.75 |
42 |
0.14 |
2.4 |
～ |
2.6 |
| WDZ-RY |
1 |
32 |
0.19 |
2.5 |
～ |
2.7 |
| WDZ-RY |
1.25 |
50 |
0.17 |
3.2 |
～ |
3.4 |
| WDZ-RY |
1.5 |
48 |
0.19 |
3.0 |
～ |
3.2 |
| WDZ-RY |
2 |
64 |
0.19 |
3.5 |
～ |
3.7 |
| WDZ-RY |
2.5 |
77 |
0.19 |
3.7 |
～ |
3.9 |
| WDZ-RY |
4 |
77 |
0.25 |
4.3 |
～ |
4.5 |
| WDZ-RY |
6 |
77 |
0.31 |
5.1 |
～ |
5.3 |
| WDZ-RY |
8 |
100 |
0.31 |
6.0 |
～ |
6.2 |
| WDZ-RY |
10 |
77 |
0.4 |
6.5 |
～ |
6.7 |
| WDZ-RY |
16 |
121 |
0.4 |
7.7 |
～ |
7.9 |
| WDZ-RY |
25 |
189 |
0.4 |
9.6 |
～ |
9.8 |
| WDZ-RY |
35 |
265 |
0.4 |
10.9 |
～ |
11.3 |
| WDZ-RY |
50 |
378 |
0.4 |
13.0 |
～ |
13.4 |
| WDZ-RY |
60 |
454 |
0.4 |
14.0 |
～ |
14.4 |
| WDZ-RY |
70 |
530 |
0.4 |
14.9 |
～ |
15.5 |
