Constructions
Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1 or Plain circular stranded copper conductor, comform to IEC 60228 class 2
Insulation: PVC/C
Descriptions

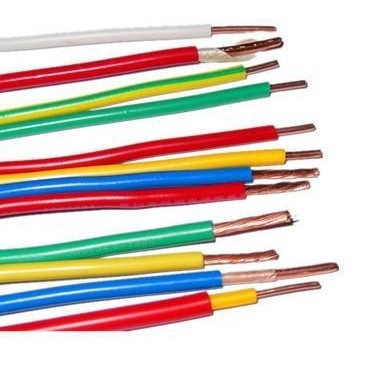

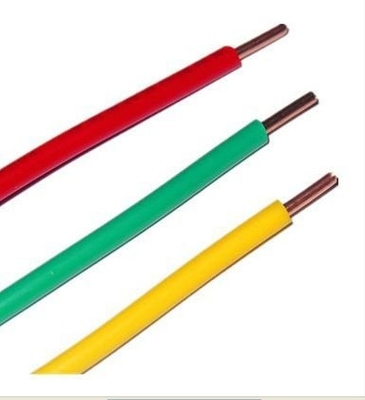

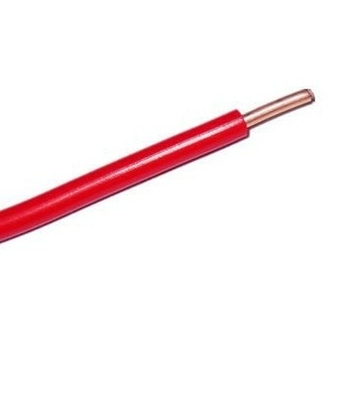

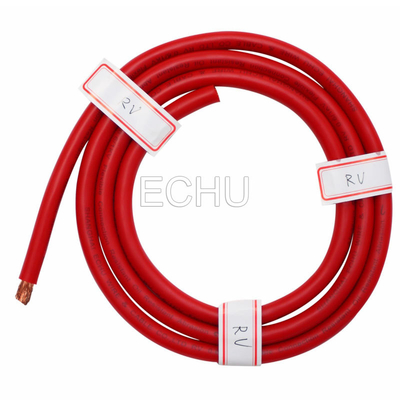

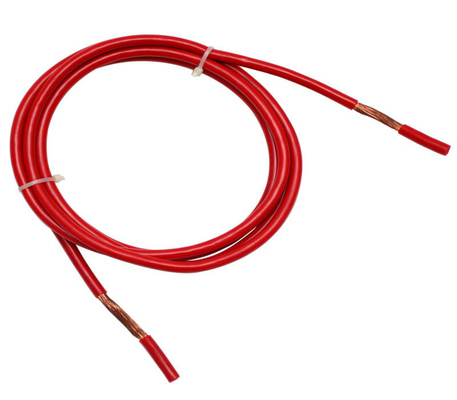

Single-core non-sheathed cables with rigid conductor for general purposes
Code Designations
60227 IEC 01 (International), BV 450/750V(China), BVR 450/750V(China)
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Characteristics
Rated voltage: 450/750 V
Max. Operating Temp of Conductor. 70℃
Min. Ambient Temperature during installation: 0℃
Min. Bending Radius: 6 x cable O.D if diameter above 25mm
4 x cable O.D if diameter below 25mm
| Type |
Specification |
Conductor |
Insulation external diameter mm |
| LEAST LINE |
|
UP LINE |
| BVR |
2.5 |
19 |
0.41 |
3.7 |
～ |
4.0 |
| BVR |
4 |
19 |
0.52 |
4.3 |
～ |
4.8 |
| BVR |
6 |
28 |
0.52 |
4.9 |
～ |
5.3 |
| BVR |
10 |
47 |
0.52 |
6.3 |
～ |
6.8 |
| BVR |
16 |
75 |
0.52 |
7.4 |
～ |
8.1 |
| BVR |
25 |
118 |
0.52 |
9.1 |
～ |
10.0 |
| BVR |
35 |
165 |
0.52 |
10.4 |
～ |
11.0 |
| BVR |
50 |
235 |
0.52 |
12.3 |
～ |
13.9 |
| BVR |
70 |
330 |
0.52 |
14.1 |
～ |
16.0 |
| |
|
|
|
|
|
|
| RV |
0.5 |
33 |
0.14 |
2.1 |
～ |
2.3 |
| RV |
0.75 |
49 |
0.14 |
2.4 |
～ |
2.5 |
| RV |
1 |
35 |
0.19 |
2.5 |
～ |
2.7 |
| RV |
1.5 |
53 |
0.19 |
3.0 |
～ |
3.4 |
| RV |
2 |
70 |
0.19 |
3.5 |
～ |
3.7 |
| RV |
2.5 |
89 |
0.19 |
3.7 |
～ |
4.1 |
| RV |
4 |
81 |
0.25 |
4.3 |
～ |
4.8 |
| RV |
6 |
79 |
0.31 |
5.0 |
～ |
5.3 |
| RV |
10 |
80 |
0.4 |
6.0 |
～ |
6.8 |
| RV |
16 |
127 |
0.4 |
7.6 |
～ |
8.1 |
| RV |
25 |
199 |
0.4 |
9.4 |
～ |
10.2 |
| RV |
35 |
278 |
0.4 |
10.6 |
～ |
11.7 |
| RV |
50 |
396 |
0.4 |
12.7 |
～ |
13.9 |
| RV |
70 |
558 |
0.4 |
14.5 |
～ |
16.0 |
| RV |
95 |
756 |
0.4 |
16.8 |
～ |
18.2 |
| RV |
120 |
955 |
0.4 |
18.5 |
～ |
20.2 |
| RV |
150 |
764 |
0.5 |
20.8 |
～ |
22.5 |
| RV |
185 |
945 |
0.5 |
23.1 |
～ |
24.9 |
| RV |
240 |
1216 |
0.5 |
26.0 |
～ |
28.4 |
| |
|
|
|
|
|
|
| AVR |
0.12 |
8 |
0.14 |
1.3 |
～ |
1.3 |
| AVR |
0.2 |
13 |
0.14 |
1.4 |
～ |
1.5 |
| AVR |
0.3 |
20 |
0.14 |
1.7 |
～ |
1.8 |
| AVR |
0.4 |
26 |
0.14 |
1.9 |
～ |
2.0 |
