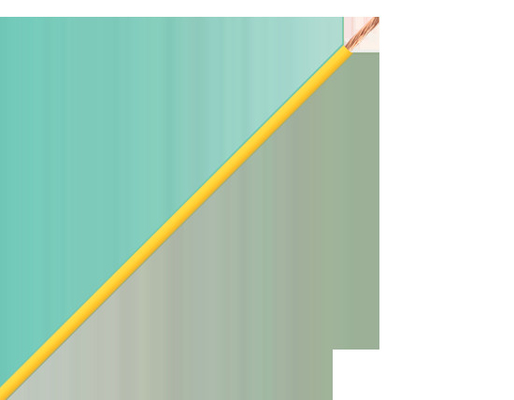

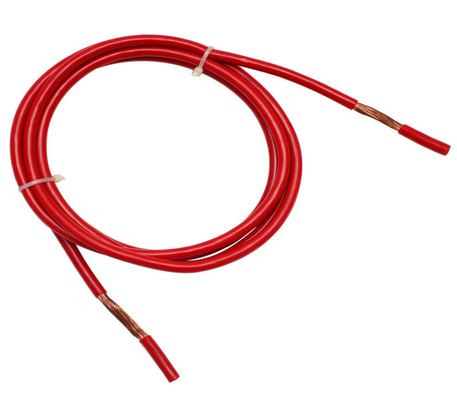

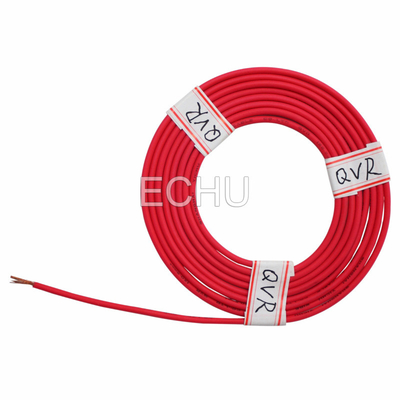

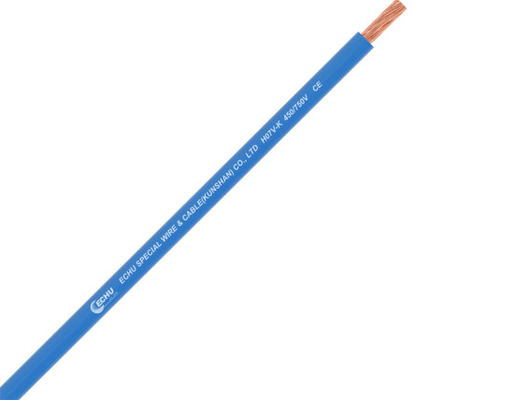

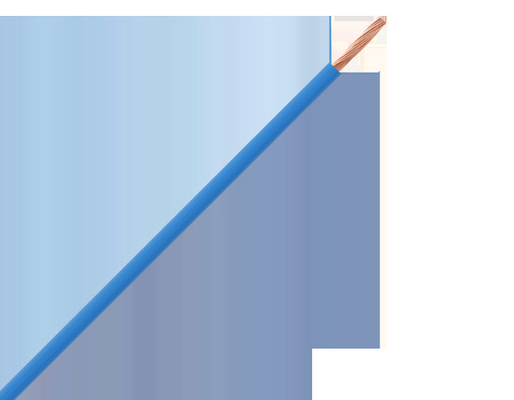

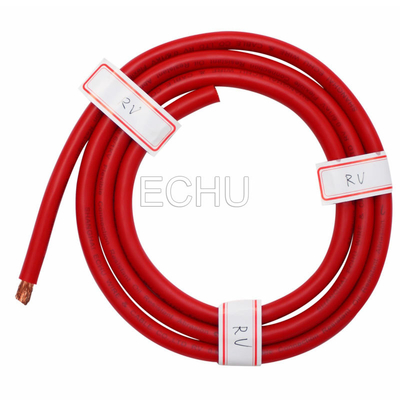

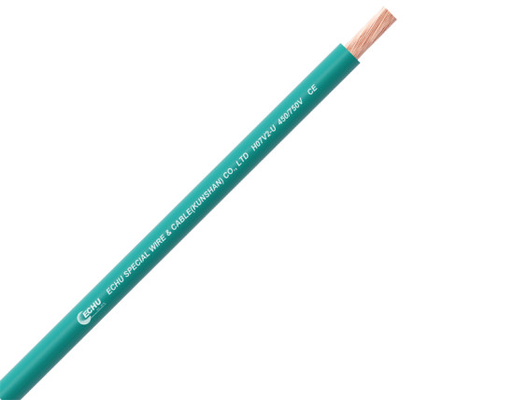

Single Core Strands Copper Internal Wire H07V-R 16.0mm2

Single Core Strands Copper Internal Wire H07V-R 16.0mm2

    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2
    • Single Core Strands Copper Internal Wire H07V-R 16.0mm2

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: H05V-U H05V-R H05V-K H07V-U H07V-R H07V-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD0.88

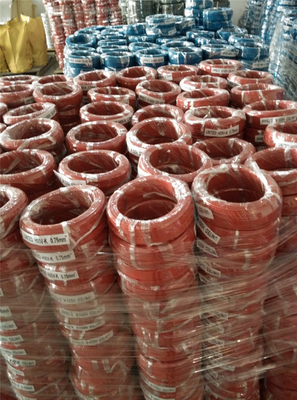

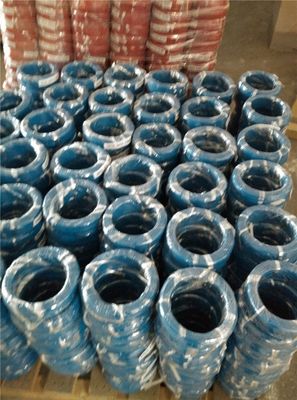

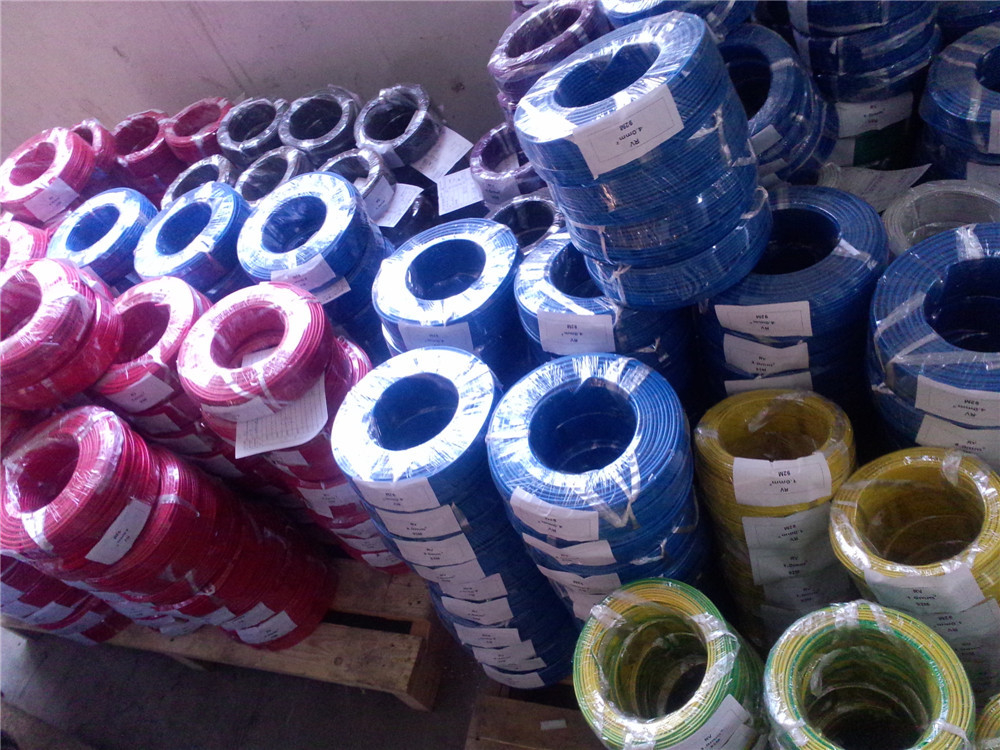

    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description


    Single Core Strands Copper Internal Wire H07V-R 16.0mm2Single Core Strands Copper Internal Wire H07V-R 16.0mm2

    Single Core Strands Copper Internal Wire H07V-R 16.0mm2

    Constructions

    Conductor: Class 2 stranded copper conductor (H07V-R)

    Class 1 solid copper conductor(H07V-U)

    Insulation: PVC/D



    Code Designations

    H07V-R/H07V-U



    Applications

    H07V-R/H07V-U is suitable for power and lighting circuits and building wiring.



    Standards

    BS EN 50525-2-31



    Characteristics

    Rated voltage:450/750V

    Max. Operating Temp of Conductor. 70℃

    Min. Ambient Temperature during installation: 0℃

    Min. Bending Radius: 6 x cable O.D if diameter above 25mm

    4 x cable O.D if diameter below 25mm



    Type Specifications conductor cond. Diameter WeightKG/KM Insulation thickness mm
    H05V-U 0.5 1 0.8 9.7 0.6
    H05V-U 0.75 1 0.98 12.6 0.6
    H05V-R 0.75 7 0.37 13.0 0.6
    H05V-U 1 1 1.13 15.3 0.6
    H05V-R 1 7 0.43 16.1 0.6
    H07V-U 1.5 1 1.38 21.9 0.7
    H07V-R 1.5 7 0.52 22.5 0.7
    H07V-U 2.5 1 1.78 34.0 0.8
    H07V-U 4 1 2.25 49.3 0.8
    H07V-U 6 1 2.76 69.5 0.8
    H07V-R 10 7 1.35 117.6 1
    H07V-R 16 7 1.7 174.6 1
    H07V-R 25 7 2.14 276.0 1.2
    H07V-R 35 7 2.52 367.9 1.2
    H07V-R 50 19 1.83 525.0 1.4
    H07V-R 70 19 2.14 686.3 1.4
    H07V-R 95 19 2.52 964.4 1.6
    H07V-R 120 37 2.03 1201 1.6
    H07V-R 150 37 2.26 1478 1.8

    H07V-R 2.5 19 0.41 35.3 0.8
    H07V-R 4 19 0.52 51.3 0.8
    H07V-R 6 28 0.52 70.9 0.8
    H07V-R 10 49 0.52 121.2 1
    H07V-R 16 75 0.52 175.9 1
    H07V-R 25 116 0.52 269.0 1.2
    H07V-R 35 165 0.52 369.9 1.2
    H07V-R 50 235 0.52 523.8 1.4
    H07V-R 70 330 0.52 716.5 1.4
    H07V-R 95 447 0.52 992.3 1.6
    H07V-R 120 565 0.52 1236.0 1.6
    H07V-R 150 707 0.52 1546.5 1.8

    H05V-K 0.5 28 0.15 9.9 0.6
    H05V-K 0.75 24 0.2 13.6 0.6
    H05V-K 1 32 0.2 15.9 0.6
    H07V-K 1.5 48 0.2 22.9 0.7
    H07V-K 2.5 51 0.25 35.3 0.8
    H07V-K 4 56 0.3 52.0 0.8
    H07V-K 6 84 0.3 72.3 0.8
    H07V-K 10 80 0.4 118.5 1
    H07V-K 16 127 0.4 179.2 1
    H07V-K 25 199 0.4 276.7 1.2
    H07V-K 35 278 0.4 375.1 1.2
    H07V-K 50 396 0.4 532.2 1.4
    H07V-K 70 558 0.4 729.9 1.4
    H07V-K 95 756 0.4 984.8 1.6
    H07V-K 120 956 0.4 2211.4 1.8
    H07V-K 150 706 0.52 2760.0 1.8
    H07V-K 185 871 0.52 3404.9 2
    H07V-K 240 1130 0.52 4417.5 2.2
