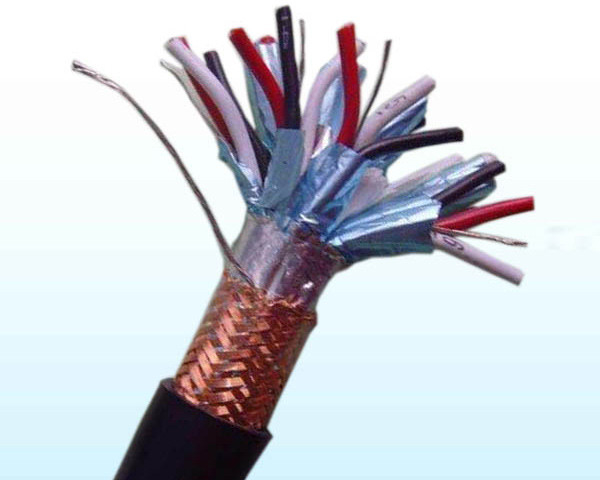

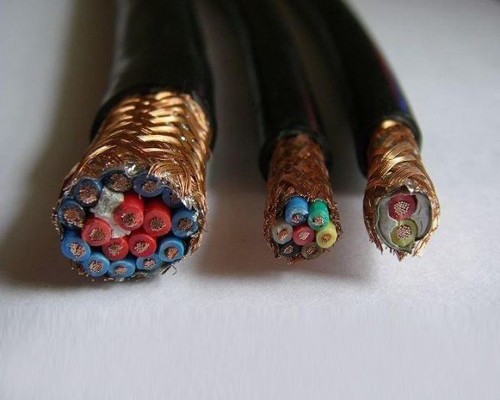

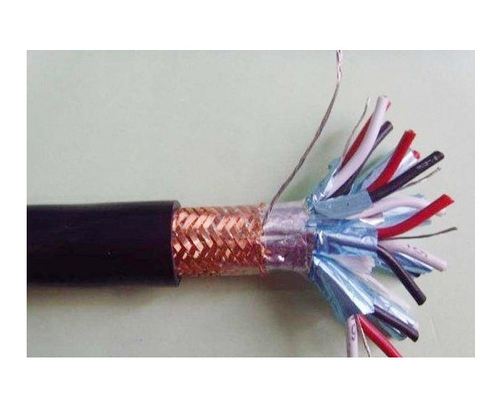

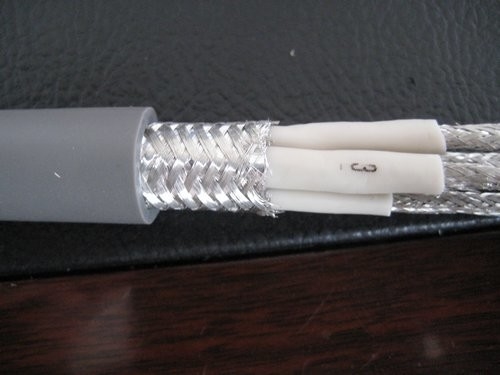

For use in applications such as automation systems, production lines and measurement systems. Mult-pair shield instrument cables
PE, XLPE, PVC Insulation optional
Al-foil, Cu Wire Braid, Cu Tape Shield Optional Specifications

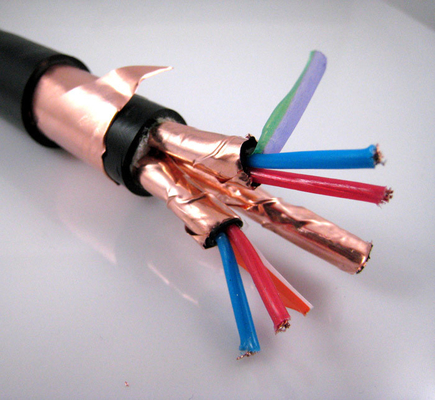

Mult-pair shield armored instrument cables
solid or flexible copper or tinned copper conductor
PE, XLPE, PVC Insulation optional
Al-foil, Cu Wire Braid, Cu Tape Shield Optional
Application:
It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power - generating metallurgy petroling chemistry.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair): 1~19
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
