Application and Description
Li2YCY TP twisted cable is used for flexible use with free movement, but without tensile stress or forced
movements in dry, wet and moist areas but are not suitable for open air application. It is commonly used as
control and signal cable in the electronics of computer systems, electronic control equipment, office machines
and measurement devices in the tool making and machine industries. The twisted pair construction reduces
interference (crosstalk) within the cable while the tinned copper braid shield offers optimum protection from
electrical and electromagnetic interference.
Standard and Approval
VDE 0812, VDE 0814, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

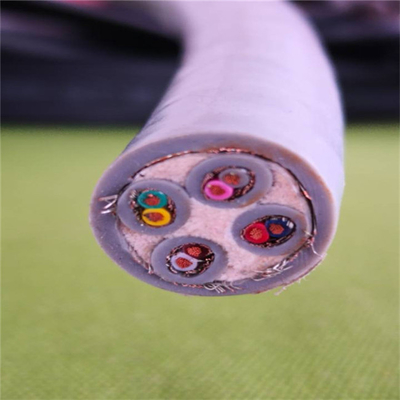

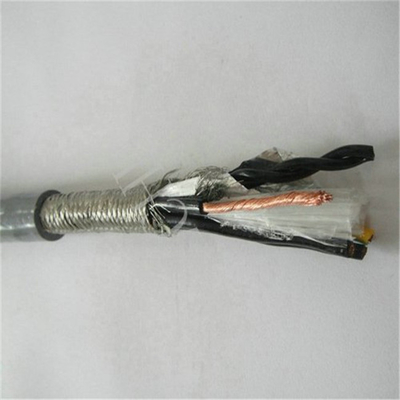

Cable Construction
- Plain copper conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
- PVC core insulation to DIN VDE 0281 part 1
- Color coded to DIN 47100, but without color repetition
- Cores twisted into layers
- Plastic foil separator
- 85% tinned copper braid
- PE outer jacket to DIN VDE 0281 part 1
Technical Characteristics
- Working voltage: 250 volts
- Test voltage: 1200 volts
- Minimum bending radius: 5 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -30º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
| TYPE |
Paires |
Spec. |
Cond. No. |
Per Cond.φ |
Weight( Kgs/km) |
| LI2YCY-(TP) |
2pairs |
0.14*2C |
18 |
0.1 |
36.4 |
| LI2YCY-(TP) |
3pairs |
0.14*2C |
18 |
0.1 |
47 |
| LI2YCY-(TP) |
4pairs |
0.14*2C |
18 |
0.1 |
55.7 |
| LI2YCY-(TP) |
5pairs |
0.14*2C |
18 |
0.1 |
68.3 |
| LI2YCY-(TP) |
6pairs |
0.14*2C |
18 |
0.1 |
77.6 |
| LI2YCY-(TP) |
7pairs |
0.14*2C |
18 |
0.1 |
83.8 |
| LI2YCY-(TP) |
8pairs |
0.14*2C |
18 |
0.1 |
93.2 |
| LI2YCY-(TP) |
9pairs |
0.14*2C |
18 |
0.1 |
108.7 |
| LI2YCY-(TP) |
10pairs |
0.14*2C |
18 |
0.1 |
123.3 |
| LI2YCY-(TP) |
11pairs |
0.14*2C |
18 |
0.1 |
131.4 |
| LI2YCY-(TP) |
12pairs |
0.14*2C |
18 |
0.1 |
137.6 |
| LI2YCY-(TP) |
13pairs |
0.14*2C |
18 |
0.1 |
147 |
| LI2YCY-(TP) |
14pairs |
0.14*2C |
18 |
0.1 |
153.2 |
| LI2YCY-(TP) |
15pairs |
0.14*2C |
18 |
0.1 |
168.6 |
| LI2YCY-(TP) |
16pairs |
0.14*2C |
18 |
0.1 |
174.8 |
| LI2YCY-(TP) |
17pairs |
0.14*2C |
18 |
0.1 |
185 |
| LI2YCY-(TP) |
18pairs |
0.14*2C |
18 |
0.1 |
191.2 |
| LIYCY-(TP) |
19pairs |
0.14*2C |
18 |
0.1 |
197.3 |
| LIYCY-(TP) |
20pairs |
0.14*2C |
18 |
0.1 |
205.6 |
| LIYCY-(TP) |
21pairs |
0.14*2C |
18 |
0.1 |
213.7 |
| LIYCY-(TP) |
22pairs |
0.14*2C |
18 |
0.1 |
231.9 |
| LIYCY-(TP) |
23pairs |
0.14*2C |
18 |
0.1 |
249.4 |
| LIYCY-(TP) |
24pairs |
0.14*2C |
18 |
0.1 |
255.6 |
| LIYCY-(TP) |
25pairs |
0.14*2C |
18 |
0.1 |
264.1 |
| LIYCY-(TP) |
26pairs |
0.14*2C |
18 |
0.1 |
270.3 |
| LIYCY-(TP) |
27pairs |
0.14*2C |
18 |
0.1 |
276.4 |
| LIYCY-(TP) |
28pairs |
0.14*2C |
18 |
0.1 |
286.5 |
| LIYCY-(TP) |
29pairs |
0.14*2C |
18 |
0.1 |
292.7 |
| LIYCY-(TP) |
30pairs |
0.14*2C |
18 |
0.1 |
298.9 |
| LIYCY-(TP) |
31pairs |
0.14*2C |
18 |
0.1 |
317.2 |
| LIYCY-(TP) |
32pairs |
0.14*2C |
18 |
0.1 |
323.4 |
| LIYCY-(TP) |
33pairs |
0.14*2C |
18 |
0.1 |
329.5 |
| LIYCY-(TP) |
34pairs |
0.14*2C |
18 |
0.1 |
340.5 |
| LIYCY-(TP) |
35pairs |
0.14*2C |
18 |
0.1 |
346.7 |
| LIYCY-(TP) |
36pairs |
0.14*2C |
18 |
0.1 |
352.9 |
| LIYCY-(TP) |
2pairs |
0.25*2C |
16 |
0.14 |
48.9 |
| LIYCY-(TP) |
3pairs |
0.25*2C |
16 |
0.14 |
59.5 |
| LIYCY-(TP) |
4pairs |
0.25*2C |
16 |
0.14 |
75.5 |
| LIYCY-(TP) |
5pairs |
0.25*2C |
16 |
0.14 |
88.3 |
| LIYCY-(TP) |
6pairs |
0.25*2C |
16 |
0.14 |
105.8 |
| LIYCY-(TP) |
7pairs |
0.25*2C |
16 |
0.14 |
115.1 |
| LIYCY-(TP) |
8pairs |
0.25*2C |
16 |
0.14 |
128.4 |
| LIYCY-(TP) |
9pairs |
0.25*2C |
16 |
0.14 |
148.4 |
| LIYCY-(TP) |
10pairs |
0.25*2C |
16 |
0.14 |
168.3 |
| LIYCY-(TP) |
11pairs |
0.25*2C |
16 |
0.14 |
179.9 |
| LIYCY-(TP) |
12pairs |
0.25*2C |
16 |
0.14 |
189.2 |
| LIYCY-(TP) |
13pairs |
0.25*2C |
16 |
0.14 |
202.5 |
| LIYCY-(TP) |
14pairs |
0.25*2C |
16 |
0.14 |
211.8 |
| LIYCY-(TP) |
15pairs |
0.25*2C |
16 |
0.14 |
232.1 |
| LIYCY-(TP) |
16pairs |
0.25*2C |
16 |
0.14 |
241.4 |
| LIYCY-(TP) |
17pairs |
0.25*2C |
16 |
0.14 |
255.7 |
| LIYCY-(TP) |
18pairs |
0.25*2C |
16 |
0.14 |
264.9 |
| LIYCY-(TP) |
19pairs |
0.25*2C |
16 |
0.14 |
274.2 |
| LIYCY-(TP) |
20pairs |
0.25*2C |
16 |
0.14 |
293.2 |
| LIYCY-(TP) |
21pairs |
0.25*2C |
16 |
0.14 |
305.1 |
| LIYCY-(TP) |
22pairs |
0.25*2C |
16 |
0.14 |
329.2 |
| LIYCY-(TP) |
23pairs |
0.25*2C |
16 |
0.14 |
344.1 |
| LIYCY-(TP) |
24pairs |
0.25*2C |
16 |
0.14 |
353.4 |
| LIYCY-(TP) |
25pairs |
0.25*2C |
16 |
0.14 |
365.5 |
| LIYCY-(TP) |
26pairs |
0.25*2C |
16 |
0.14 |
374.8 |
| LIYCY-(TP) |
27pairs |
0.25*2C |
16 |
0.14 |
384.1 |
| LIYCY-(TP) |
28pairs |
0.25*2C |
16 |
0.14 |
406.9 |
| LIYCY-(TP) |
29pairs |
0.25*2C |
16 |
0.14 |
416.2 |
| LIYCY-(TP) |
30pairs |
0.25*2C |
16 |
0.14 |
425.4 |
| LIYCY-(TP) |
31pairs |
0.25*2C |
16 |
0.14 |
440.4 |
| LIYCY-(TP) |
32pairs |
0.25*2C |
16 |
0.14 |
449.6 |
| LIYCY-(TP) |
33pairs |
0.25*2C |
16 |
0.14 |
458.9 |
| LIYCY-(TP) |
34pairs |
0.25*2C |
16 |
0.14 |
483.5 |
| LIYCY-(TP) |
35pairs |
0.25*2C |
16 |
0.14 |
492.8 |
| LIYCY-(TP) |
36pairs |
0.25*2C |
16 |
0.14 |
502 |
| LIYCY-(TP) |
|
|
|
|
|
| LIYCY-(TP) |
2pairs |
0.34*2C |
7 |
0.25 |
53.8 |
| LIYCY-(TP) |
3pairs |
0.34*2C |
7 |
0.25 |
66.8 |
| LIYCY-(TP) |
4pairs |
0.34*2C |
7 |
0.25 |
85 |
| LIYCY-(TP) |
5pairs |
0.34*2C |
7 |
0.25 |
99.9 |
| LIYCY-(TP) |
6pairs |
0.34*2C |
7 |
0.25 |
119.6 |
| LIYCY-(TP) |
7pairs |
0.34*2C |
7 |
0.25 |
130.8 |
| LIYCY-(TP) |
8pairs |
0.34*2C |
7 |
0.25 |
151.3 |
| LIYCY-(TP) |
9pairs |
0.34*2C |
7 |
0.25 |
168.6 |
| LIYCY-(TP) |
10pairs |
0.34*2C |
7 |
0.25 |
190.2 |
| LIYCY-(TP) |
11pairs |
0.34*2C |
7 |
0.25 |
203.9 |
| LIYCY-(TP) |
12pairs |
0.34*2C |
7 |
0.25 |
215.2 |
| LIYCY-(TP) |
13pairs |
0.34*2C |
7 |
0.25 |
237.6 |
| LIYCY-(TP) |
14pairs |
0.34*2C |
7 |
0.25 |
248.8 |
| LIYCY-(TP) |
15pairs |
0.34*2C |
7 |
0.25 |
265 |
| LIYCY-(TP) |
16pairs |
0.34*2C |
7 |
0.25 |
276.2 |
| LIYCY-(TP) |
17pairs |
0.34*2C |
7 |
0.25 |
299.8 |
| LIYCY-(TP) |
18pairs |
0.34*2C |
7 |
0.25 |
311 |
| LIYCY-(TP) |
19pairs |
0.34*2C |
7 |
0.25 |
322.2 |
| LIYCY-(TP) |
20pairs |
0.34*2C |
7 |
0.25 |
336.3 |
| LIYCY-(TP) |
21pairs |
0.34*2C |
7 |
0.25 |
350.2 |
| LIYCY-(TP) |
22pairs |
0.34*2C |
7 |
0.25 |
376.8 |
| LIYCY-(TP) |
23pairs |
0.34*2C |
7 |
0.25 |
402.4 |
| LIYCY-(TP) |
24pairs |
0.34*2C |
7 |
0.25 |
413.6 |
| LIYCY-(TP) |
25pairs |
0.34*2C |
7 |
0.25 |
428 |
| LIYCY-(TP) |
26pairs |
0.34*2C |
7 |
0.25 |
439.2 |
| LIYCY-(TP) |
27pairs |
0.34*2C |
7 |
0.25 |
450.4 |
| LIYCY-(TP) |
28pairs |
0.34*2C |
7 |
0.25 |
467 |
| LIYCY-(TP) |
29pairs |
0.34*2C |
7 |
0.25 |
478.2 |
| LIYCY-(TP) |
30pairs |
0.34*2C |
7 |
0.25 |
489.4 |
| LIYCY-(TP) |
31pairs |
0.34*2C |
7 |
0.25 |
515.8 |
| LIYCY-(TP) |
32pairs |
0.34*2C |
7 |
0.25 |
527.1 |
| LIYCY-(TP) |
33pairs |
0.34*2C |
7 |
0.25 |
538.3 |
| LIYCY-(TP) |
34pairs |
0.34*2C |
7 |
0.25 |
556 |
| LIYCY-(TP) |
35pairs |
0.34*2C |
7 |
0.25 |
567.2 |
| LIYCY-(TP) |
36pairs |
0.34*2C |
7 |
0.25 |
578.4 |
| LIYCY-(TP) |
|
|
|
|
|
| LIYCY-(TP) |
2pairs |
0.5*2C |
33 |
0.14 |
77.6 |
| LIYCY-(TP) |
3pairs |
0.5*2C |
33 |
0.14 |
101.9 |
| LIYCY-(TP) |
4pairs |
0.5*2C |
33 |
0.14 |
124.3 |
| LIYCY-(TP) |
5pairs |
0.5*2C |
33 |
0.14 |
152.2 |
| LIYCY-(TP) |
6pairs |
0.5*2C |
33 |
0.14 |
181.3 |
| LIYCY-(TP) |
7pairs |
0.5*2C |
33 |
0.14 |
198.5 |
| LIYCY-(TP) |
8pairs |
0.5*2C |
33 |
0.14 |
228.5 |
| LIYCY-(TP) |
9pairs |
0.5*2C |
33 |
0.14 |
262 |
| LIYCY-(TP) |
10pairs |
0.5*2C |
33 |
0.14 |
286.5 |
| LIYCY-(TP) |
11pairs |
0.5*2C |
33 |
0.14 |
315.3 |
| LIYCY-(TP) |
12pairs |
0.5*2C |
33 |
0.14 |
332.4 |
| LIYCY-(TP) |
13pairs |
0.5*2C |
33 |
0.14 |
356.3 |
| LIYCY-(TP) |
14pairs |
0.5*2C |
33 |
0.14 |
373.4 |
| LIYCY-(TP) |
15pairs |
0.5*2C |
33 |
0.14 |
406.7 |
| LIYCY-(TP) |
16pairs |
0.5*2C |
33 |
0.14 |
423.9 |
| LIYCY-(TP) |
17pairs |
0.5*2C |
33 |
0.14 |
458.5 |
| LIYCY-(TP) |
18pairs |
0.5*2C |
33 |
0.14 |
475.6 |
| LIYCY-(TP) |
19pairs |
0.5*2C |
33 |
0.14 |
492.8 |
| LIYCY-(TP) |
20pairs |
0.5*2C |
33 |
0.14 |
514.3 |
| LIYCY-(TP) |
21pairs |
0.5*2C |
33 |
0.14 |
545.5 |
| LIYCY-(TP) |
22pairs |
0.5*2C |
33 |
0.14 |
574.7 |
| LIYCY-(TP) |
23pairs |
0.5*2C |
33 |
0.14 |
611.9 |
| LIYCY-(TP) |
24pairs |
0.5*2C |
33 |
0.14 |
629 |
| LIYCY-(TP) |
25pairs |
0.5*2C |
33 |
0.14 |
662.3 |
| LIYCY-(TP) |
26pairs |
0.5*2C |
33 |
0.14 |
679.4 |
| LIYCY-(TP) |
27pairs |
0.5*2C |
33 |
0.14 |
696.6 |
| LIYCY-(TP) |
28pairs |
0.5*2C |
33 |
0.14 |
722.3 |
| LIYCY-(TP) |
29pairs |
0.5*2C |
33 |
0.14 |
739.4 |
| LIYCY-(TP) |
30pairs |
0.5*2C |
33 |
0.14 |
756.6 |
| LIYCY-(TP) |
31pairs |
0.5*2C |
33 |
0.14 |
795.3 |
| LIYCY-(TP) |
32pairs |
0.5*2C |
33 |
0.14 |
812.5 |
| LIYCY-(TP) |
33pairs |
0.5*2C |
33 |
0.14 |
829.6 |
| LIYCY-(TP) |
34pairs |
0.5*2C |
33 |
0.14 |
869.8 |
| LIYCY-(TP) |
35pairs |
0.5*2C |
33 |
0.14 |
886.9 |
| LIYCY-(TP) |
36pairs |
0.5*2C |
33 |
0.14 |
904 |
| LIYCY-(TP) |
|
|
|
|
|
| LIYCY-(TP) |
2pairs |
0.75*2C |
49 |
0.14 |
97.8 |
| LIYCY-(TP) |
3pairs |
0.75*2C |
49 |
0.14 |
123.8 |
| LIYCY-(TP) |
4pairs |
0.75*2C |
49 |
0.14 |
157.3 |
| LIYCY-(TP) |
5pairs |
0.75*2C |
49 |
0.14 |
192.4 |
| LIYCY-(TP) |
6pairs |
0.75*2C |
49 |
0.14 |
228.9 |
| LIYCY-(TP) |
7pairs |
0.75*2C |
49 |
0.14 |
251.7 |
| LIYCY-(TP) |
8pairs |
0.75*2C |
49 |
0.14 |
289.2 |
| LIYCY-(TP) |
9pairs |
0.75*2C |
49 |
0.14 |
330.7 |
| LIYCY-(TP) |
10pairs |
0.75*2C |
49 |
0.14 |
362.1 |
| LIYCY-(TP) |
11pairs |
0.75*2C |
49 |
0.14 |
398 |
| LIYCY-(TP) |
12pairs |
0.75*2C |
49 |
0.14 |
420.8 |
| LIYCY-(TP) |
13pairs |
0.75*2C |
49 |
0.14 |
460.6 |
| LIYCY-(TP) |
14pairs |
0.75*2C |
49 |
0.14 |
483.4 |
| LIYCY-(TP) |
15pairs |
0.75*2C |
49 |
0.14 |
515.3 |
| LIYCY-(TP) |
16pairs |
0.75*2C |
49 |
0.14 |
538.1 |
| LIYCY-(TP) |
17pairs |
0.75*2C |
49 |
0.14 |
580.7 |
| LIYCY-(TP) |
18pairs |
0.75*2C |
49 |
0.14 |
603.4 |
| LIYCY-(TP) |
19pairs |
0.75*2C |
49 |
0.14 |
626.2 |
| LIYCY-(TP) |
20pairs |
0.75*2C |
49 |
0.14 |
664.7 |
| LIYCY-(TP) |
21pairs |
0.75*2C |
49 |
0.14 |
692.6 |
| LIYCY-(TP) |
22pairs |
0.75*2C |
49 |
0.14 |
741 |
| LIYCY-(TP) |
23pairs |
0.75*2C |
49 |
0.14 |
787 |
| LIYCY-(TP) |
24pairs |
0.75*2C |
49 |
0.14 |
809.7 |
| LIYCY-(TP) |
25pairs |
0.75*2C |
49 |
0.14 |
838.4 |
| LIYCY-(TP) |
26pairs |
0.75*2C |
49 |
0.14 |
861.2 |
| LIYCY-(TP) |
27pairs |
0.75*2C |
49 |
0.14 |
884 |
| LIYCY-(TP) |
28pairs |
0.75*2C |
49 |
0.14 |
929.6 |
| LIYCY-(TP) |
29pairs |
0.75*2C |
49 |
0.14 |
952.4 |
| LIYCY-(TP) |
30pairs |
0.75*2C |
49 |
0.14 |
975.1 |
| LIYCY-(TP) |
31pairs |
0.75*2C |
49 |
0.14 |
1022.8 |
| LIYCY-(TP) |
32pairs |
0.75*2C |
49 |
0.14 |
1045.6 |
| LIYCY-(TP) |
33pairs |
0.75*2C |
49 |
0.14 |
1068.3 |
| LIYCY-(TP) |
34pairs |
0.75*2C |
49 |
0.14 |
1117.6 |
| LIYCY-(TP) |
35pairs |
0.75*2C |
49 |
0.14 |
1140.4 |
| LIYCY-(TP) |
36pairs |
0.75*2C |
49 |
0.14 |
1163.1 |
| LIYCY-(TP) |
|
|
|
|
|
| LIYCY-(TP) |
2pairs |
1.0*2C |
35 |
0.19 |
118.43 |
| LIYCY-(TP) |
3pairs |
1.0*2C |
35 |
0.19 |
150.7 |
| LIYCY-(TP) |
4pairs |
1.0*2C |
35 |
0.19 |
191.45 |
| LIYCY-(TP) |
5pairs |
1.0*2C |
35 |
0.19 |
233.95 |
| LIYCY-(TP) |
6pairs |
1.0*2C |
35 |
0.19 |
277.98 |
| LIYCY-(TP) |
7pairs |
1.0*2C |
35 |
0.19 |
306.46 |
| LIYCY-(TP) |
8pairs |
1.0*2C |
35 |
0.19 |
343.91 |
| LIYCY-(TP) |
9pairs |
1.0*2C |
35 |
0.19 |
401.34 |
| LIYCY-(TP) |
10pairs |
1.0*2C |
35 |
0.19 |
449.03 |
| LIYCY-(TP) |
11pairs |
1.0*2C |
35 |
0.19 |
482.93 |
| LIYCY-(TP) |
12pairs |
1.0*2C |
35 |
0.19 |
511.4 |
| LIYCY-(TP) |
13pairs |
1.0*2C |
35 |
0.19 |
559.04 |
| LIYCY-(TP) |
14pairs |
1.0*2C |
35 |
0.19 |
587.51 |
| LIYCY-(TP) |
15pairs |
1.0*2C |
35 |
0.19 |
637.17 |
| LIYCY-(TP) |
16pairs |
1.0*2C |
35 |
0.19 |
665.65 |
| LIYCY-(TP) |
17pairs |
1.0*2C |
35 |
0.19 |
716.98 |
| LIYCY-(TP) |
18pairs |
1.0*2C |
35 |
0.19 |
745.46 |
| LIYCY-(TP) |
19pairs |
1.0*2C |
35 |
0.19 |
773.94 |
| LIYCY-(TP) |
20pairs |
1.0*2C |
35 |
0.19 |
808.66 |
| LIYCY-(TP) |
21pairs |
1.0*2C |
35 |
0.19 |
843.06 |
| LIYCY-(TP) |
22pairs |
1.0*2C |
35 |
0.19 |
912.97 |
| LIYCY-(TP) |
23pairs |
1.0*2C |
35 |
0.19 |
954.68 |
| LIYCY-(TP) |
24pairs |
1.0*2C |
35 |
0.19 |
983.15 |
| LIYCY-(TP) |
25pairs |
1.0*2C |
35 |
0.19 |
1031.97 |
| LIYCY-(TP) |
26pairs |
1.0*2C |
35 |
0.19 |
1060.45 |
| LIYCY-(TP) |
27pairs |
1.0*2C |
35 |
0.19 |
1088.93 |
| LIYCY-(TP) |
28pairs |
1.0*2C |
35 |
0.19 |
1143.44 |
| LIYCY-(TP) |
29pairs |
1.0*2C |
35 |
0.19 |
1171.92 |
| LIYCY-(TP) |
30pairs |
1.0*2C |
35 |
0.19 |
1200.39 |
| LIYCY-(TP) |
|
|
|
|
|
| LIYCY-(TP) |
2pairs |
1.5*2C |
53 |
0.19 |
185.9 |
| LIYCY-(TP) |
3pairs |
1.5*2C |
53 |
0.19 |
238.6 |
| LIYCY-(TP) |
4pairs |
1.5*2C |
53 |
0.19 |
303 |
| LIYCY-(TP) |
5pairs |
1.5*2C |
53 |
0.19 |
378.4 |
| LIYCY-(TP) |
6pairs |
1.5*2C |
53 |
0.19 |
448.2 |
| LIYCY-(TP) |
7pairs |
1.5*2C |
53 |
0.19 |
495 |
| LIYCY-(TP) |
8pairs |
1.5*2C |
53 |
0.19 |
566.4 |
| LIYCY-(TP) |
9pairs |
1.5*2C |
53 |
0.19 |
655.9 |
| LIYCY-(TP) |
10pairs |
1.5*2C |
53 |
0.19 |
731.4 |
| LIYCY-(TP) |
11pairs |
1.5*2C |
53 |
0.19 |
787.1 |
| LIYCY-(TP) |
12pairs |
1.5*2C |
53 |
0.19 |
833.8 |
| LIYCY-(TP) |
13pairs |
1.5*2C |
53 |
0.19 |
922.2 |
| LIYCY-(TP) |
14pairs |
1.5*2C |
53 |
0.19 |
969 |
| LIYCY-(TP) |
15pairs |
1.5*2C |
53 |
0.19 |
1047.8 |
| LIYCY-(TP) |
16pairs |
1.5*2C |
53 |
0.19 |
1094.6 |
