    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: RVV-NBR-PUR

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: 5.88
    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description
    Sheath Material: PUR Inner Sheath: NBR
    Insulation: NBR

    Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*6Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*6Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*6Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*6Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*6



    Applications:
    as connecting and control cable for lift or crane, it is also used for various kinds of electric installation in dry or wet
    Indoor as well as outdoor.

    Properties:
    the PUR outer sheath makes the cable waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet.

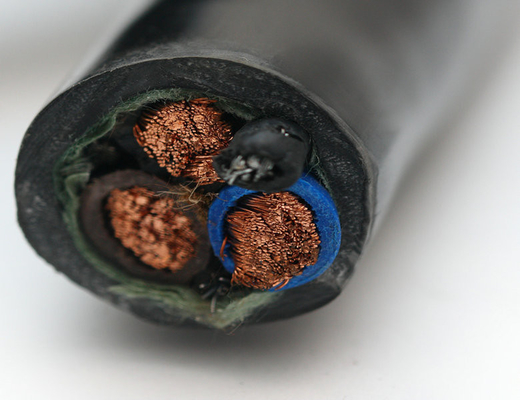

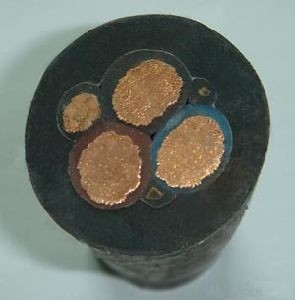

    Structure:
    Conductor:superfine copper strands acc. To VDE 0295, class 5
    Insulation: Butadiene-acrylonitrile rubber (NBR).
    Jacket: Butadiene-acrylonitrile rubber (NBR).
    Colour: various colour cores with number acc. to JISC3306 or with green/yellow.
    Inner liner: non-woven fabric wrapping to release impact
    Outer sheath: PUR outer sheath.(waterproofing, oil resistance, cool resistance, abrasion resistance, Flame resistance, anti-ultraviolet).
    Uted insulated cable rope among cores functions as tensile resistance
    the outer sheath is flame retardant and self-extinguishing
    (acc. to VDE 0482, part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1).

    Technical data
    Rated voltage:450/750V
    Test voltage: 2500V
    Temperature range:
    fixed installation: -35 to +70
    flexible application: -20 to +70
    Minimum bending radius: 10X outer diameter


    TYPE SPEC.
    RVV-NBR-PUR 3*16+1*6
    RVV-NBR-PUR 3*25+1*10
    RVV-NBR-PUR 3*35+1*10
    RVV-NBR-PUR 4.0*2C
    RVV-NBR-PUR 4.0*3C
    RVV-NBR-PUR 4.0*4C
    RVV-NBR-PUR 4.0*5C
    RVV-NBR-PUR 4.0*6C
    RVV-NBR-PUR 4.0*7C
    RVV-NBR-PUR 4.0*8C
    RVV-NBR-PUR 4.0*9C
    RVV-NBR-PUR 4.0*10C
    RVV-NBR-PUR 4.0*11C
    RVV-NBR-PUR 4.0*12C
    RVV-NBR-PUR 4.0*13C
    RVV-NBR-PUR 4.0*14C
    RVV-NBR-PUR 4.0*15C
    RVV-NBR-PUR 4.0*16C
    RVV-NBR-PUR 4.0*17C
    RVV-NBR-PUR 4.0*18C
    RVV-NBR-PUR 4.0*19C
    RVV-NBR-PUR 4.0*20C
    RVV-NBR-PUR 4.0*21C
    RVV-NBR-PUR 4.0*22C
    RVV-NBR-PUR 4.0*23C
    RVV-NBR-PUR 4.0*24C
    RVV-NBR-PUR 4.0*25C
    RVV-NBR-PUR 4.0*26C
    RVV-NBR-PUR 4.0*27C
    RVV-NBR-PUR 4.0*28C
    RVV-NBR-PUR 4.0*29C
    RVV-NBR-PUR 4.0*30C
    RVV-NBR-PUR 6.0*2C
    RVV-NBR-PUR 6.0*3C
    RVV-NBR-PUR 6.0*4C
    RVV-NBR-PUR 6.0*5C
    RVV-NBR-PUR 6.0*6C
    RVV-NBR-PUR 6.0*7C
    RVV-NBR-PUR 6.0*8C
    RVV-NBR-PUR 6.0*9C
    RVV-NBR-PUR 6.0*10C
    RVV-NBR-PUR 6.0*11C
    RVV-NBR-PUR 6.0*12C
    RVV-NBR-PUR 6.0*13C
    RVV-NBR-PUR 6.0*14C
    RVV-NBR-PUR 6.0*15C
    RVV-NBR-PUR 6.0*16C
    RVV-NBR-PUR 10.0*2C
    RVV-NBR-PUR 10.0*3C
    RVV-NBR-PUR 10.0*4C
    RVV-NBR-PUR 10.0*5C
    RVV-NBR-PUR 10.0*6C
    RVV-NBR-PUR 10.0*7C
    RVV-NBR-PUR 10.0*8C
    RVV-NBR-PUR 16.0*2C
    RVV-NBR-PUR 16.0*3C
    RVV-NBR-PUR 16.0*4C
    RVV-NBR-PUR 16.0*5C
    RVV-NBR-PUR 16.0*6C
    RVV-NBR-PUR 25.0*2C
    RVV-NBR-PUR 25.0*3C
    RVV-NBR-PUR 25.0*4C
    RVV-NBR-PUR 25.0*5C
    RVV-NBR-PUR 35.0*2C
    RVV-NBR-PUR 35.0*3C
    RVV-NBR-PUR 35.0*4C
    RVV-NBR-PUR 35.0*5C
    RVV-NBR-PUR 50.0*2C
    RVV-NBR-PUR 50.0*3C
    RVV-NBR-PUR 50.0*4C
    RVV-NBR-PUR 50.0*5C
    RVV-NBR-PUR 70.0*2C
    RVV-NBR-PUR 70.0*3C
    RVV-NBR-PUR 70.0*4C
    RVV-NBR-PUR 70.0*5C
    RVV-NBR-PUR 95.0*2C
    RVV-NBR-PUR 95.0*3C
    RVV-NBR-PUR 95.0*4C
    RVV-NBR-PUR 95.0*5C
    RVV-NBR-PUR 120.0*2C
    RVV-NBR-PUR 120.0*3C
    RVV-NBR-PUR 120.0*4C
    RVV-NBR-PUR 120.0*5C
    RVV-NBR-PUR 150.0*2C
    RVV-NBR-PUR 150.0*3C
    RVV-NBR-PUR 150.0*4C
    RVV-NBR-PUR 150.0*5C
    RVV-NBR-PUR 150.0*6C
    RVV-NBR-PUR 185.0*2C
    RVV-NBR-PUR 185.0*3C
    RVV-NBR-PUR 185.0*4C
    RVV-NBR-PUR 185.0*5C
