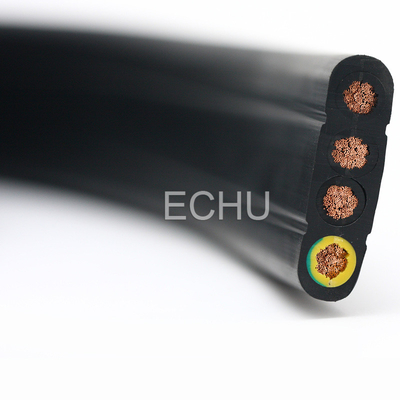

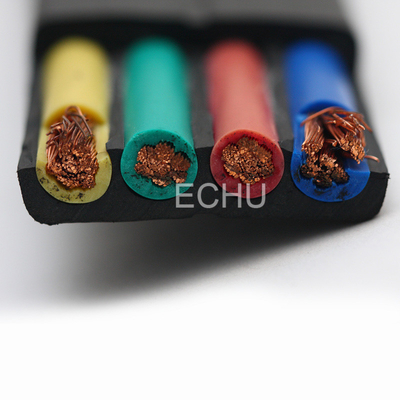

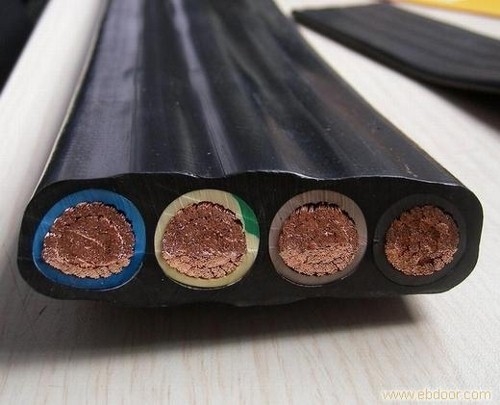

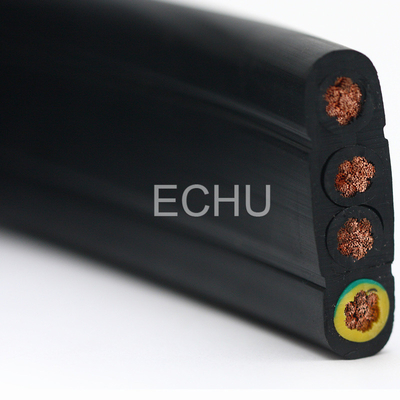

Flexible Flat Cable for Cranes and Conveyors Yffb 4G150

Cold Resistance Flexible Flat Crane Cable

Applications:

Temperature (for cold resitance): -40degree to +105 degree
As connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations.

It is suitable as a control and connection cable for cranes and conveyors on building sites, container goods railway stations and cockyards where operating conditions are rough.

Properties:
Sheath: Special polychloreprene (Butadiene-acrylonitrile rubber, ) it remains flexible at below 15 degree, flame resistance and self-extinguishing.

Structure:
Conductor: Superfine copper strands acc. To VDE 0295, class 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Color: Acc. To 227IEC (brown, blue, black. Green/yellow)
5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber, resistant to oil, flame retardant and self-extinguishing
Color: Black(RAL9005) or Grey (RAL7001)
Standard: Acc. To VDE0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1

Technical data:
Rated voltage: </=1.5mm 300/500V, >1.5mm 450/750V
Test voltage: </=1.5mm 2500V, >1.5mm 3000V

Minimum bending radius: 0.3m<L<0.6m;
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1: 1993 test passed standard: GB5023.6, IEC 60227-6, EN50214
Used under the normal conditions. The temperature of conductor is lower than 70 degree
Temperature range: Below 15 degree to +40degree
Cables are recommended for Installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s.

If it more than this, with steel.

Samples are available
