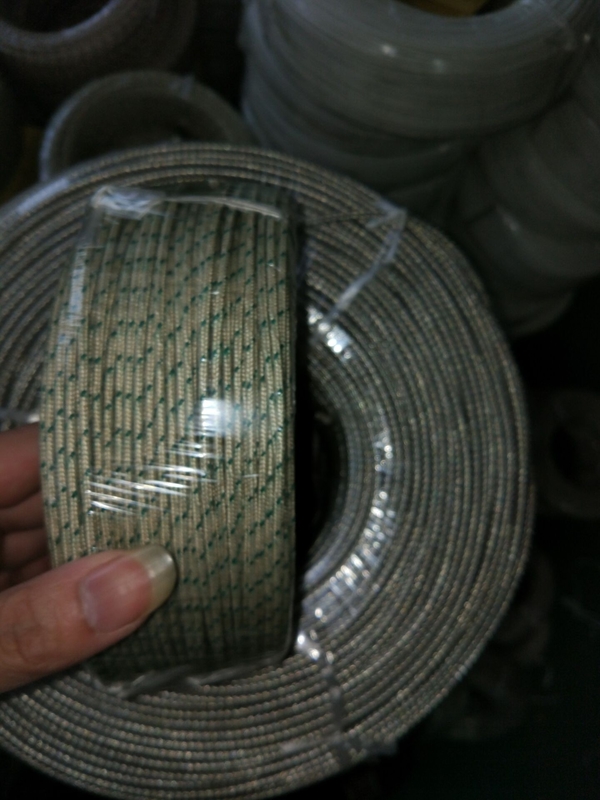

Mica High Temperature Stranded Pure Nickel Wire 500℃ GN500-03

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	GN500-01 GN500-02 GN500-03 GN500-04

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD2.65
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

Mica High Temperature Stranded Pure Nickel Wire 500℃ GN500-03

Model: GN500-03
Executive Standard: Q/IRMV5-2009
Features:
1, Rated voltage: 300/500V
2, operating temperature: -60 ~ +500 ℃
3, conductor: stranded pure nickel wire
4, insulation: glass fiber woven gold mica tape + F
5, Color: Red / yellow / blue / white / black / yellow, and green / brown / orange / purple / green / etc.
Features / Applications:
Fixed installation, plus flame combustion, no harmful toxic gases. This product is metallurgical, thermal, oil, chemical, natural gas, kerosene and other special circumstances, need to fire performance of various electrical devices used in wire and cable requirements.
Delivery requirements:
Contract agreement by the two sides agreed to permit not less than 10 meters short section delivery. Their number should not exceed 10% of the total length of delivery.
