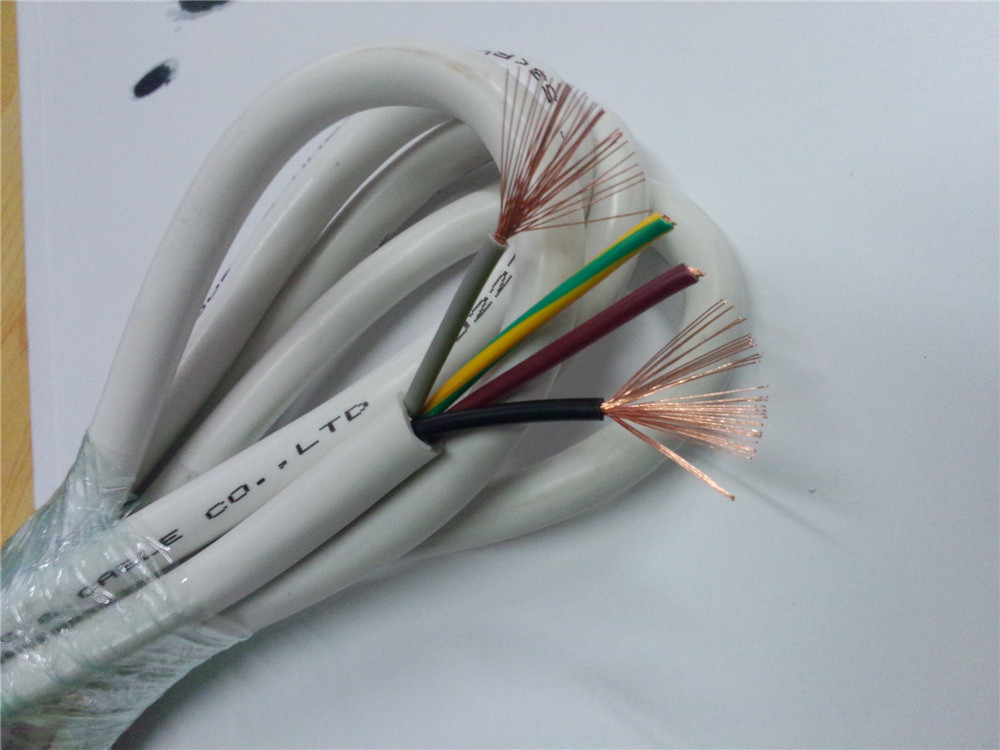

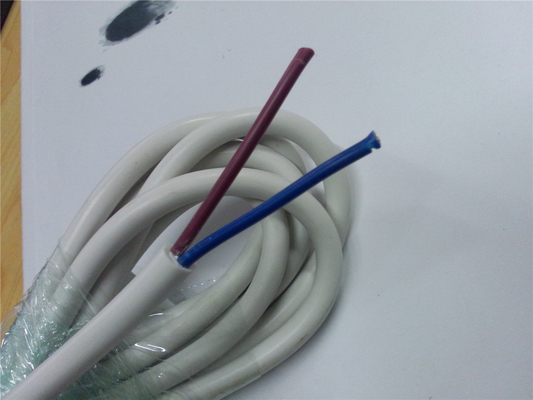

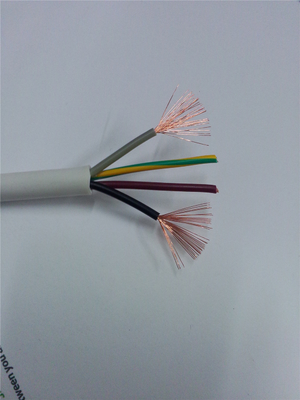

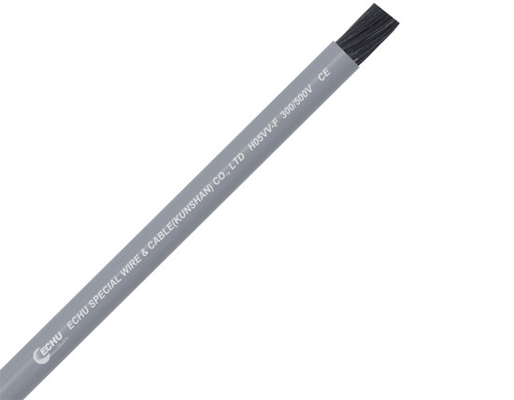

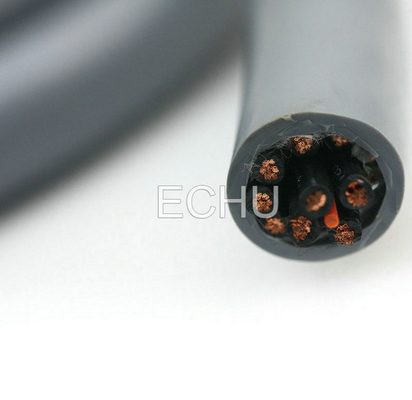

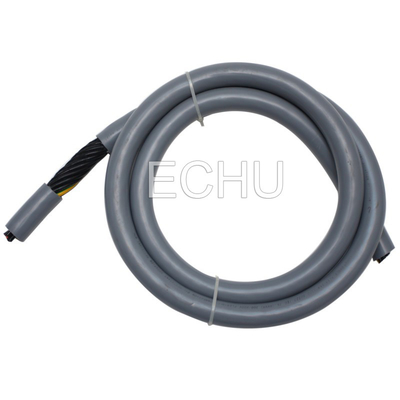

PVC Sheathed cord 300/500V RVV H05VV-F H03VV-F 60227 IEC53 Cable

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	RVV HH0VV-F H03VV-F

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

PVC Sheathed cord 300/500V RVV H05VV-F H03VV-F 60227 IEC53 Cable

Constructions

Insulation: PVC/D
Sheath: PVC type St 5

Code Designations

60227 IEC53 (International), RVV 300/500V(China)

Applications

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Standards

IEC 60227, GB/T 5023-2008

Characteristics

Rated voltage:300/500 V

Max. Operating Temp of Conductor. 70℃

Min. Ambient Temperature during installation: 0℃

Min. Bending Radius: 6 x cable O.D if diameter above 25mm

4 x cable O.D if diameter below 25mm

TYPE	SPECIFICATION	CONDUCTOR NO.	PER CONDUCTOR DIAφ	WEIGHT KG/KM	OUTER DIA
H05VV-F	0.75*2C	24	0.2	64.8	6.5
H05VV-F	0.75*3C	24	0.2	77.2	6.9
H05VV-F	0.75*4C	24	0.2	93	7.5
H05VV-F	0.75*5C	24	0.2	113.7	8.3
H05VV-F	0.75*6C	24	0.2	135.6	9.3
H05VV-F	0.75*7C	24	0.2	149.1	9.3
H05VV-F	0.75*8C	24	0.2	178.4	10.4
H05VV-F	0.75*9C	24	0.2	204.4	11.5
H05VV-F	0.75*10C	24	0.2	221.1	12
H05VV-F	0.75*11C	24	0.2	251.3	12.8
H05VV-F	0.75*12C	24	0.2	248.8	12.4
H05VV-F	0.75*13C	24	0.2	285.5	13.5
H05VV-F	0.75*14C	24	0.2	294.6	13.5
H05VV-F	0.75*15C	24	0.2	321.3	14.2
H05VV-F	0.75*16C	24	0.2	333.3	14.2
H05VV-F	0.75*17C	24	0.2	361.1	15.1
H05VV-F	0.75*18C	24	0.2	370.4	15.1
H05VV-F	0.75*19C	24	0.2	383.9	15.1
H05VV-F	0.75*20C	24	0.2	400.9	15.5
H05VV-F	0.75*21C	24	0.2	421.9	15.9
H05VV-F	0.75*22C	24	0.2	430.5	17
H05VV-F	0.75*23C	24	0.2	455	17.8
H05VV-F	0.75*24C	24	0.2	468.5	17.8
H05VV-F	0.75*25C	24	0.2	487.7	18.2
H05VV-F	0.75*26C	24	0.2	501.2	18.2
H05VV-F	0.75*27C	24	0.2	514.7	18.2
H05VV-F	0.75*28C	24	0.2	538.2	18.9
H05VV-F	0.75*29C	24	0.2	551.7	18.9
H05VV-F	0.75*30C	24	0.2	565.2	18.9
H05VV-F	0.75*31C	24	0.2	590	19.7
H05VV-F	0.75*32C	24	0.2	603.5	19.7
H05VV-F	0.75*33C	24	0.2	617	19.7
H05VV-F	0.75*34C	24	0.2	642.8	20.5
H05VV-F	0.75*35C	24	0.2	656.3	20.5
H05VV-F	0.75*36C	24	0.2	669.8	20.5
