Solar Cable H1Z2Z2-K Cable PV Solar CABLE

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	H1Z2Z2-K 4.0MM2

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

MATERIAL:	Class 5 Flexible Tinned Copper	COLOR:	Black Or Red

Solar Cable H1Z2Z2-K Cable PV Solar CABLE

APPLICATION
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays.
Suitable for fixed installations, internal and external, within conduit or systems, but
not direct burial applications. Our solar cable is ozone-resistant
according to BS EN 50396, UV resistant according to HD 605/
A1, and is tested for durability according to EN 60216. For
installations where fire, smoke emissions and toxic fumes create
a potential risk to life and equipment. Conductor
Class 5 flexible tinned copper conductor Insulation
Halogen-free cross-linked compound Sheath
Halogen-free cross-linked,flame retardant compound Voltage Rating
(Uo/U)
AC: 600/1000V
DC: 900/1800V
Temperature Rating
Fixed: -40°C to +90°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Maximum Voltage
(Umax)
1.8kV DC (conductor/conductor, non earthed system, circuit not
under load)
Maximum Conductor Temperature
+120°C (for 20000h) Test Voltage
6.5kV AC according to BS EN 50395

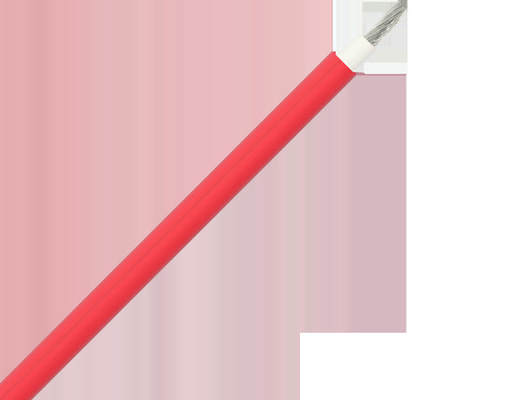

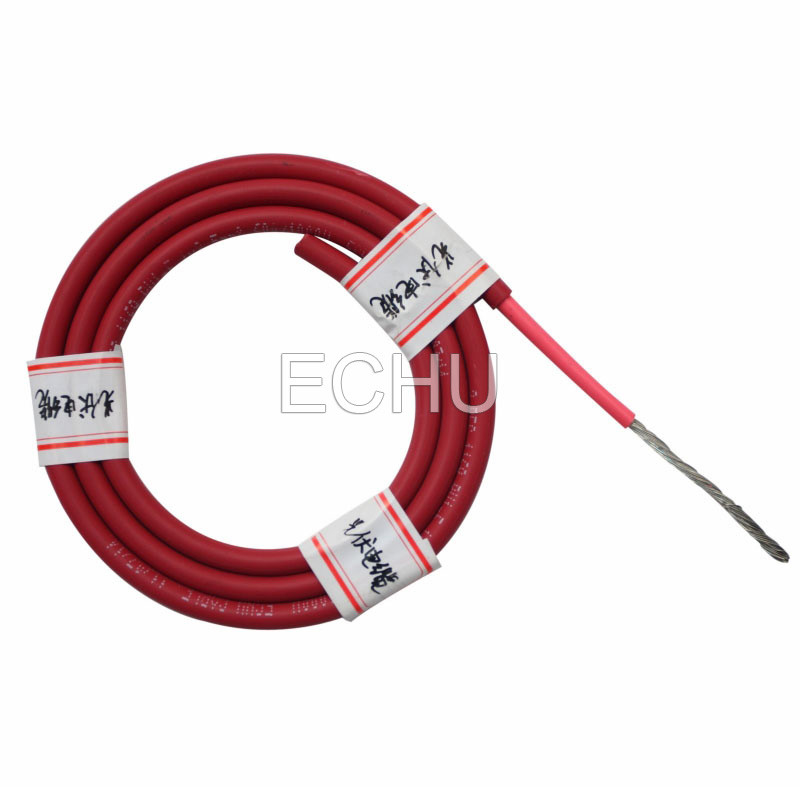

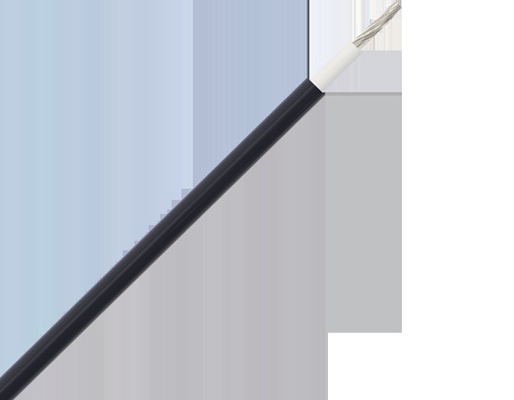

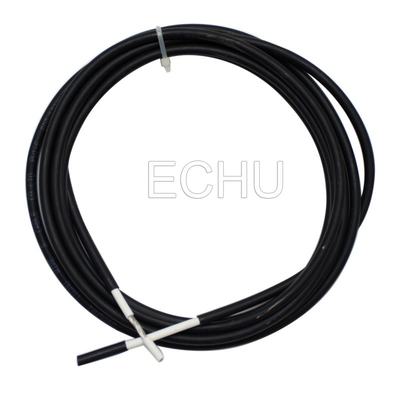

Sheath Colour
Black or Red
