Name: Solar PV Cable PV1-F 4.0MM2, Solar Panel Cable
Brand: Shanghai Echu Wire & Cable Co.,Ltd
SKU: PV1-F 4.0MM2
Price: 1.59 USD
Availability: InStock

Home Products Solar Cable

Solar PV Cable PV1-F 4.0MM2, Solar Panel Cable

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	PV1-F 4.0MM2

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD1.59
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

MATERIAL:	Class 5 Flexible Tinned Copper	COLOR:	Black Or Red
Solar Panel Cable:	Photovoltaic Panels Cable	Solar Cable:	Solar Wires
Conductor:	Tinned Copper

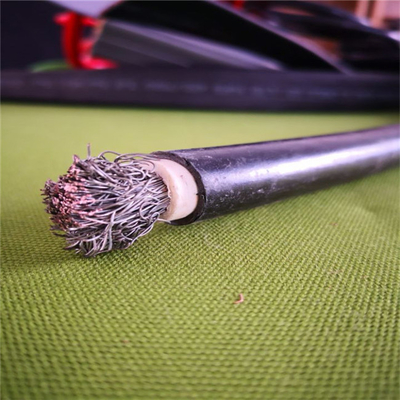

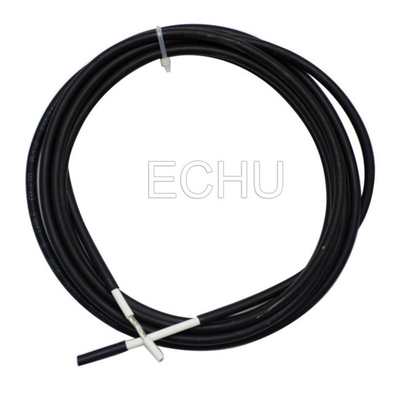

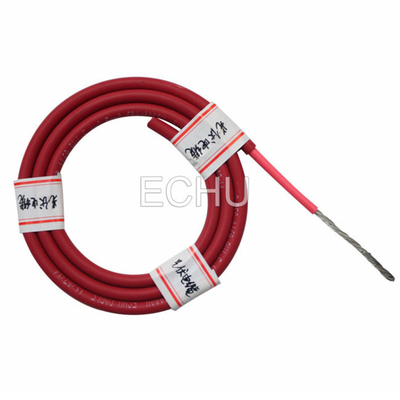

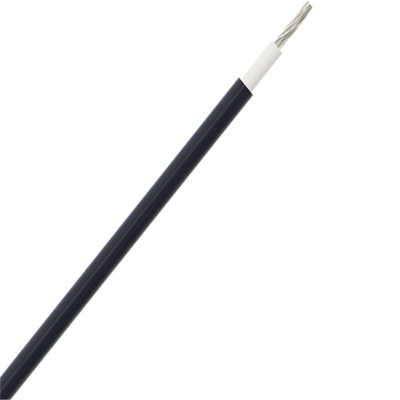

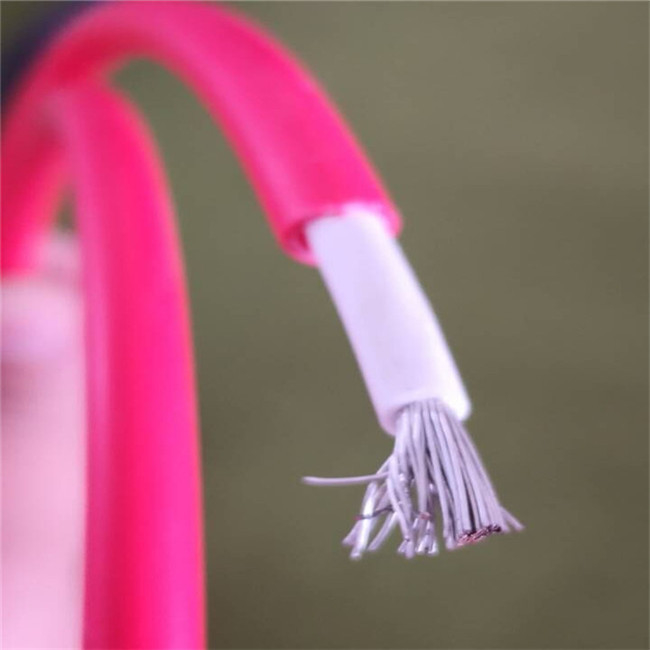

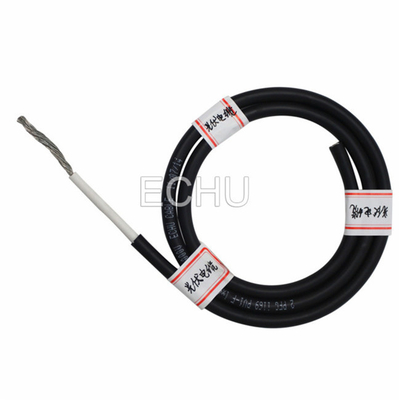

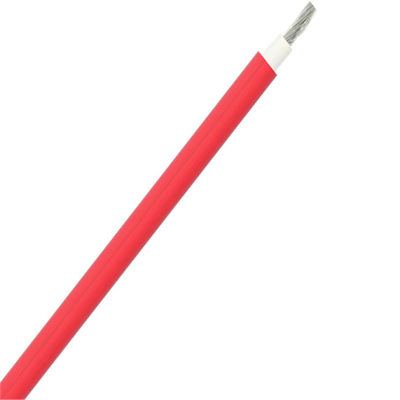

Solar PV Cable PV1-F 4.0MM2, Solar Panel Cable

Features:
1. Conductor: copper acc.IEC 60228+EN60228,VDE0295 CLASS5,Fine stranded Tinned copper conductor.
2.Temperature range for application is from -40℃ to 90℃.
Max.Temperature at conductor can be 120.
3.the permitted short circuit temperature referring to a period of 5s is 200.
4.the solar PV cable is resistant to UV, ozone and hydrolysis.
5.It is also known for its high mechanical robustness and greatResistance to water, oil and chemicals.
6.this solar PV cable is TUV approved, so customers can feel secure in using it.

Rated Voltage: AC 0.6/1KV; DC 1.8KV
Test Voltage :6500V
Inner Sheath :XLPO sheath UL4703 ( halogen free crosslinked polyolefin)
Sheath :XLPO sheath UL4703 ( halogen free crosslinked polyolefin)
Cert. :RoHs + TUV
Standard :TUV 2PFG 1169/08.07

Applications
Flexible cables suitable for mobile and fixed installation; Suitable for connection between photovoltaic panels, and photovoltaic panels to the AC inverter; Suitable for indoor and outdoor use.
The materials used in the construction of these cables exceed the thermal endurance test specified in the standard EN 60216 for +120 ºC (temperature index). Compliance with this test provides that, with proper installation, operation and maintenance, the estimated life of the cable is 30 years at 90 °C.

TYPE	SPEC. mm2
TYPE	SPEC. mm2
PV1-F	0.5
PV1-F	0.75
PV1-F	1
PV1-F	1.5
PV1-F	2
PV1-F	2.5
PV1-F	4
PV1-F	6
PV1-F	10
PV1-F	16
PV1-F	25
PV1-F	35
PV1-F	50
PV1-F	70
PV1-F	95
PV1-F	120
PV1-F	150

Solar PV Cable PV1-F 4.0MM2, Solar Panel Cable
