Implementation of the standards:
1,this product is designed and manufactured according to GB/T12706-2002.
2,flame retardant power cable accordance with the standards of production enterprises,flame retardant characteristics meet the requirements GB/T18380.3.
3,fire-resistant power cables manufactured accoring to corporate standards, including fire-resistant characteristics meet GB/T12666.6 requirements.
Characteristics:
1,Long-term allowable working temperature of cable conductor does not exceed 70℃.Circuit is blocked (the longest duration of no more than 5 seconds).the conductor temperature does not exceed 160 ℃. 2,While installation the ambient temperature should not less than 0℃,lower than 0℃ should be prehrated. Minimum bending radius of not less than cable diameter, single-core cables without armor 20 times,there with armor-cable 15 times, three-core cables without armor 15 times, there with armor-cable 12 times 3,DC reistance of conductor shall comply with the provisions of GB/T3956
4, Power frequency withstand voltage test:3.5KV/5min without breakdown.
Manin use: This product is suitable for AC rated voltage 0.6/1KV the circuit, Transmission of electrical energy used. Flame retardant power cable is suitable installed in fire-retardant demanding situations, Resistant power cable for high-rise building, shopping malls and other densely populated areas.
Retardant performance
1,Retardant cable can withstand GB/T 18380.3 prescribed bunched burning test.
2,smoke density in accordance with the requirement of GB/T 17651.1.
3,Combustion gases precipitated HCL content should be <and =100mg/g
4,resistant cable can withstand GBA/T 12666.6 fire test requirements.

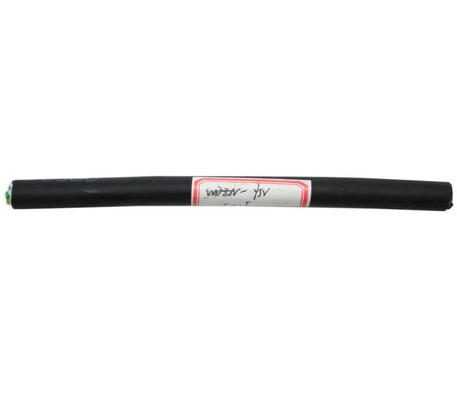

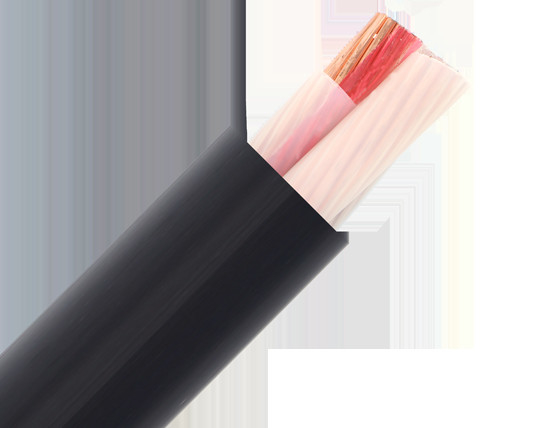

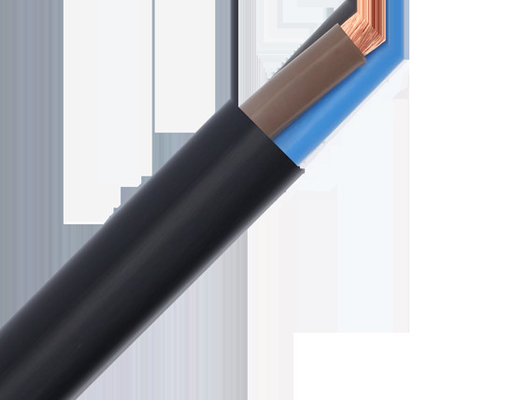

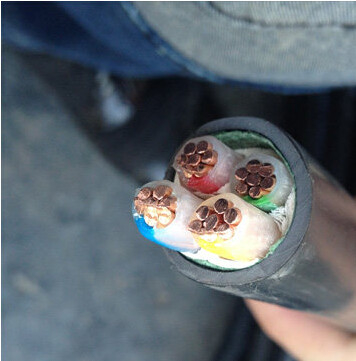

VV PVC Insulation PVC sheath power cable

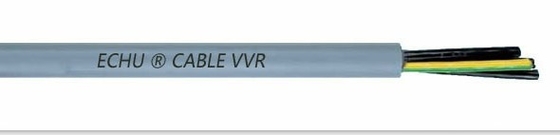

VVR Soft Flexible PVC Insulation PVC sheath power cable
ZR-VV Flame retardant PVC Insulation PVC sheath power cable
NH-VV Fire retardant PVC Insulation PVC sheath power cable

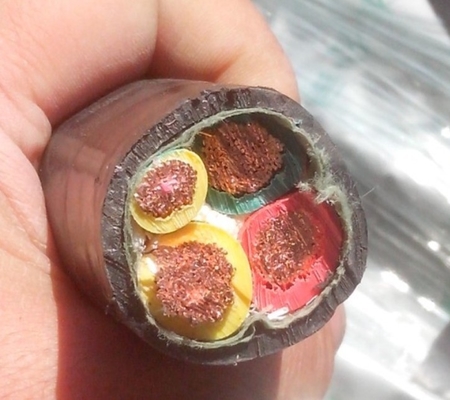

VV22 Steel Tape armored PVC Insulation PVC sheath power cable
ZR-VV22 Flame retardant and Steel tape armored PVC Insulation PVC sheath power cable
VVRP Shield Soft Flexible PVC Insulation PVC sheath power cable Cable
runs laying conditions Laying in the air
1,1-core cable parallel laid distance:Smalles than 185mm2 ,it is 2 times the cable diameter. bigger than 240mm2, the distance is 90mm.
2,wire surrounding ambient temperature:40 ℃.
3,conductive core maximum allowable temperature : 70℃.
Direct burial installation
1,1-core cable is laid without contact, the center distance of 2 times the cable diameter.
2,wire surrounding ambient temperature:25 ℃.
3,conductive core maximum allowable temperature : 70℃.
4, Thermal resistivity of soil:1.0 ℃.m/w 5,Direct buried depth :0.7m
