Name: 2YSLCY and 2YSLCYK Cable EMC Optimised Motor Cable Low-capacitance Double Screened
Brand: Shanghai Echu Wire & Cable Co.,Ltd
SKU: 2YSLCY BPYJVP
Price: 1.38 USD
Availability: InStock

Home Products Industrial Cable

2YSLCY and 2YSLCYK Cable EMC Optimised Motor Cable Low-capacitance Double Screened

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	2YSLCY BPYJVP

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD1.38

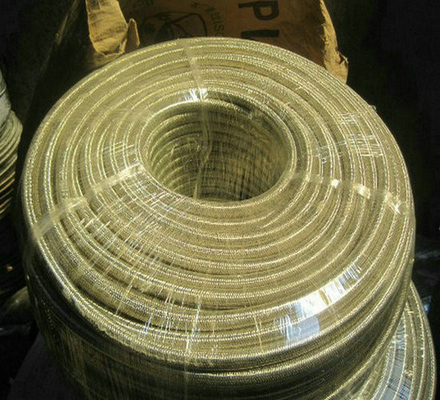

Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

Conductor Material:	Copper	Type:	Low Voltage
Application:	Construction	Jacket:	PVC Or PE
Insulation Material:	PVC,Rubber	Standard:	IEC60502
Conductor:	Bare Copper	Product Name:	Copper Core PVC Insulated Electrical Power Cable,Industrial Using Flexible PVC Insulation 2x0.75mm2 Power Cable,Copper Core PVC Insulation Wire,Robot Shielded Cable,industrial Cable
Insulation:	XLPE	Core:	2 Core
Rated Voltage:	300/500V 450/750V

2YSLCY and 2YSLCYK Cable EMC Optimised Motor Cable Low-capacitance Double Screened

2YSLCY and 2YSLCYK are flexible cables having special EMC- performance due to double shielded, low capacitance design. Ideal for frequency converters for variable speed of 3 phase AC motors, small, medium and large sizes. 2YSLCYK having a special concentric conductor array design, where earth conductor is split into 3 individuals. This 3+3 design allows symmetry against common-mode disturbance effect. This design also improves EMC noise situation of the whole drive system. Cables are suitable in dry, damp and wet rooms/ locations. 2YSLCYK version is UV light protected for outdoor use including direct burial. Good resistance against acids, caustic solutions and certain oils at room temperature.
Connecting cable between frequency converter and motor
In dry, damp or wet interiors
Paper industry
Chemical industry
Heavy industry

Product features

Flame-retardant according IEC 60332-1-2
Based on VDE 0207 / 0250 / 0295
Fine-wire, bare copper conductor
Core insulation: PE

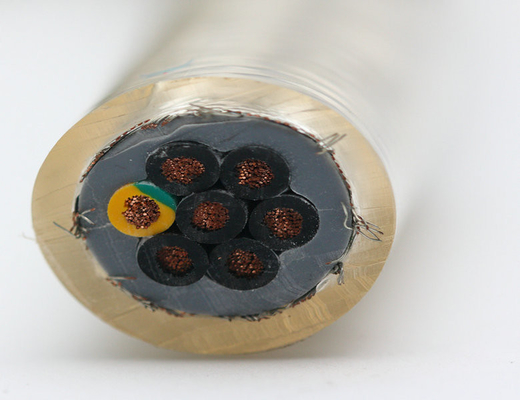

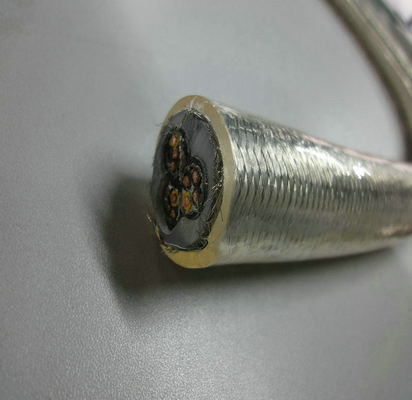

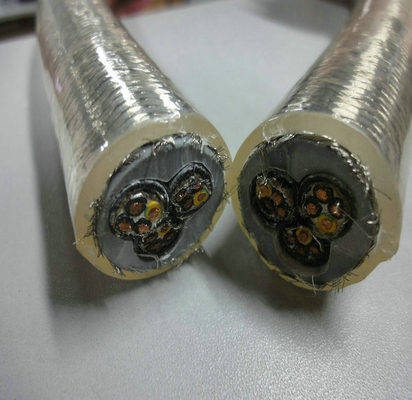

Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)

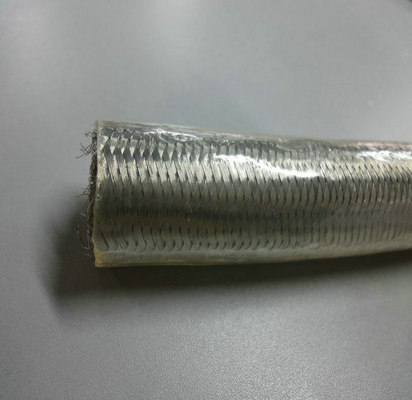

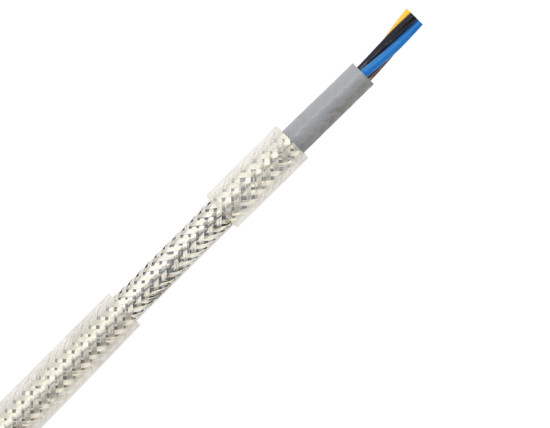

Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
4-core version: optional transparent or black PVC outer sheath
3+3 core version: PVC outer sheath, black - cold flexible Nominal voltage
U0/U: 600/1000 V
Flexing: -5°C to +70°C
3+3 core version: -15°C to +70°C
Fixed installation: -40°C to +70°C Occasional flexing: 15 x outer diameter
Fixed installation: 4 x outer diameter
