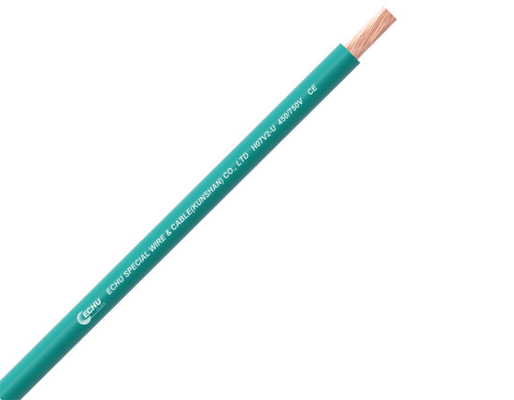

Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

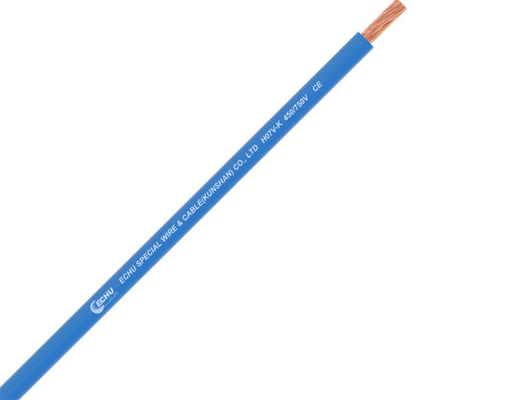

Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

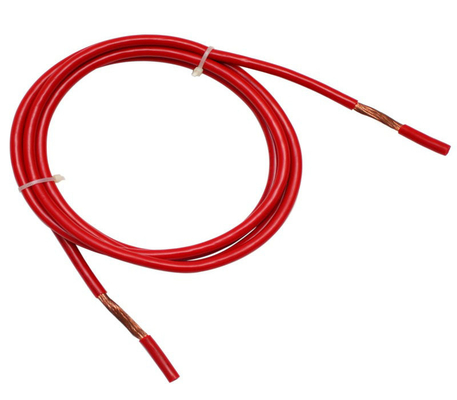

    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

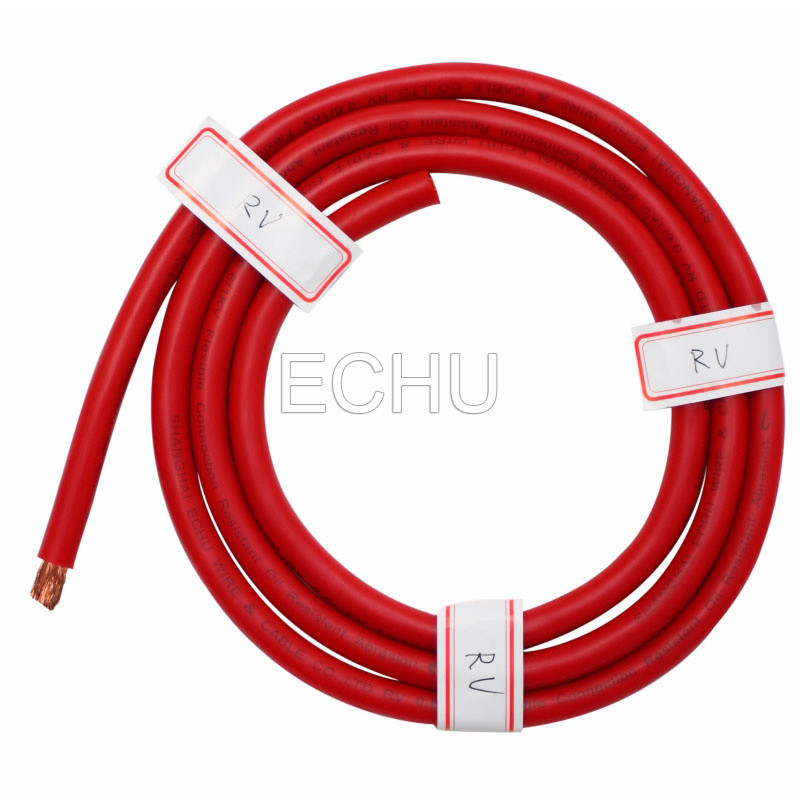

    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV
    • Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: RV H05V-R H07V-R

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD0.151

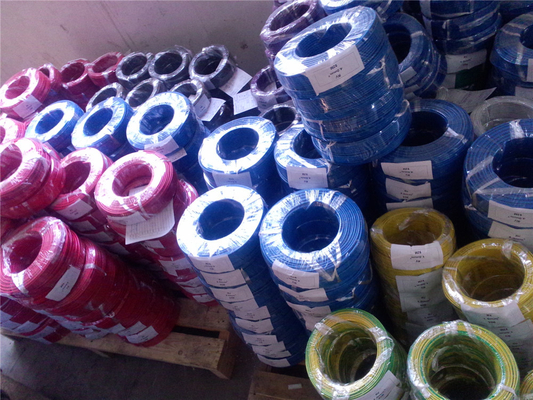

    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description



    Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

    Constructions

    Insulation: PVC/C



    Descriptions

    Single-core non-sheathed cables with flexible conductor for general purposes.



    Code Designations

    60227 IEC 02 (International), RV 450/750V(China)



    Applications

    Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.



    Standards

    International: IEC 60227

    China: GB/T 5023-2008



    Characteristics

    Rated voltage: 450/750V

    Max. Operating Temp of Conductor. 70℃

    Min. Ambient Temperature during installation: 0℃

    Min. Bending Radius: 6 x cable O.D if diameter above 25mm

    4 x cable O.D if diameter below 25mm

    Single Core Non-sheathed Cables with Flexible Conductor for General Purposes RV

    Type Specification Conductor Insulation external diameter mm
    LEAST LINE   UP LINE
    BVR 2.5 19 0.41 3.7 ～ 4.0
    BVR 4 19 0.52 4.3 ～ 4.8
    BVR 6 28 0.52 4.9 ～ 5.3
    BVR 10 47 0.52 6.3 ～ 6.8
    BVR 16 75 0.52 7.4 ～ 8.1
    BVR 25 118 0.52 9.1 ～ 10.0
    BVR 35 165 0.52 10.4 ～ 11.0
    BVR 50 235 0.52 12.3 ～ 13.9
    BVR 70 330 0.52 14.1 ～ 16.0

    RV 0.5 33 0.14 2.1 ～ 2.3
    RV 0.75 49 0.14 2.4 ～ 2.5
    RV 1 35 0.19 2.5 ～ 2.7
    RV 1.5 53 0.19 3.0 ～ 3.4
    RV 2 70 0.19 3.5 ～ 3.7
    RV 2.5 89 0.19 3.7 ～ 4.1
    RV 4 81 0.25 4.3 ～ 4.8
    RV 6 79 0.31 5.0 ～ 5.3
    RV 10 80 0.4 6.0 ～ 6.8
    RV 16 127 0.4 7.6 ～ 8.1
    RV 25 199 0.4 9.4 ～ 10.2
    RV 35 278 0.4 10.6 ～ 11.7
    RV 50 396 0.4 12.7 ～ 13.9
    RV 70 558 0.4 14.5 ～ 16.0
    RV 95 756 0.4 16.8 ～ 18.2
    RV 120 955 0.4 18.5 ～ 20.2
    RV 150 764 0.5 20.8 ～ 22.5
    RV 185 945 0.5 23.1 ～ 24.9
    RV 240 1216 0.5 26.0 ～ 28.4

    AVR 0.12 8 0.14 1.3 ～ 1.3
    AVR 0.2 13 0.14 1.4 ～ 1.5
    AVR 0.3 20 0.14 1.7 ～ 1.8
    AVR 0.4 26 0.14 1.9 ～ 2.0
